| ₹ 171695.0 includes GST and import duties. | |
| B2B customers can avail ₹ 26183.49 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

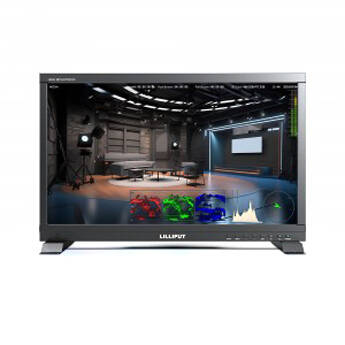

Lilliput PVM220S-E Overview
The PVM220S-E 21.5" Live Stream Recording Monitor with NDI from Lilliput is a professional monitor designed for live streaming and recording. Boasting 1000 cd/m? brightness and 1000:1 contrast, it offers a range of input options, including 3G-SDI and HDMI 2.0, ensuring compatibility with various devices for broadcast-quality monitoring. Record up to 1080p HDMI or SDI video signals directly to an SD card with a maximum capacity of 512GB. This version of the monitor also supports NDI signals.
A wide variety of advanced features, such as precise waveform and vector functions, 3D LUT and HDR support, and full-screen waveform and vectorscope functions, make it ideal for accurate color grading and picture analysis. The PVM220S-E can be powered with the included 15 VDC, 4A power adapter, and it comes with an integrated V-mount battery plate, a sun hood, and a carry case for storage and transport.
Items Included
- Lilliput PVM220S-E 21.5" Live Stream Recording Monitor with NDI (V-Mount)
- Power Adapter (15 VDC, 4A)
- 2 x Base Bracket
- Sun Hood
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Lilliput PVM220S-E Specs
| Display Size |
21.5" / 54.6 cm
|
| Native Resolution |
1920 x 1080
|
| Touchscreen |
No
|
| HDR Support |
Yes: Hybrid Log Gamma
|
| Video I/O |
1x HDMI 2.0 Input
1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Loop Output 1x HDMI 2.0 Loop Output |
| Media/Memory Card Slot |
Single Slot: SD (Unspecified Type) [LUT Upload Only]
|
| Video Format |
HDMI
UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 SDI 1080p: 60/50/30/25/24 1080i: 60/50 1080PsF: 30/25/24 |
| Battery |
1x V-Mount on Included, Interchangeable Plate
|
| Power Consumption |
53 W (Maximum)
|
| Panel Type |
LCD
|
| Display Size |
21.5" / 54.6 cm
|
| Native Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
Horizontal: 178?
Vertical: 178? |
| Touchscreen |
No
|
| Maximum Brightness |
1000 nits / cd/m2
|
| Contrast Ratio |
1000:1
|
| HDR Support |
Yes: Hybrid Log Gamma
|
| LUT Support |
Yes
|
| Video I/O |
1x HDMI 2.0 Input
1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Loop Output 1x HDMI 2.0 Loop Output |
| Embedded Audio |
HDMI: 8-Channel
SDI: 2-Channel |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
Stereo
|
| Power I/O |
1x Barrel Input
|
| Other I/O |
1x USB-A Input
|
| Media/Memory Card Slot |
Single Slot: SD (Unspecified Type) [LUT Upload Only]
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
| Video Format |
HDMI
UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 SDI 1080p: 60/50/30/25/24 1080i: 60/50 1080PsF: 30/25/24 |
| Timecode Support |
No
|
| Pulldown Conversion |
No
|
| Camera Trigger |
No
|
| Pre-Roll Record |
No
|
| Encoding Formats |
x
H.264 |
| Reference Input |
No
|
| Input Power |
9 to 24 VDC
|
| Battery |
1x V-Mount on Included, Interchangeable Plate
|
| Power Consumption |
53 W (Maximum)
|
| VESA Mounting-Hole Pattern |
100 x 100 mm, 75 x 75 mm
|
| Environmental Resistance |
No
|
| Operating Conditions |
32 to 122?F / 0 to 50?C
|
| Storage Conditions |
-4 to 140?F / -20 to 60?C
|
| Dimensions |
20 x 12.6 x 1.9" / 508 x 321 x 47 mm
|
| Weight |
10.4 lb / 4.7 kg
|
| Package Weight |
17.545 lb
|
| Box Dimensions (LxWxH) |
25.1 x 19.3 x 5.9"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 168261.1 |
| 3-5 | ₹ 166544.15 |
| 5-10 | ₹ 163110.25 |
| 10+ | ₹ 159676.35 |
Bulk discount will be automatically applied during checkout based on quantity.
