Description

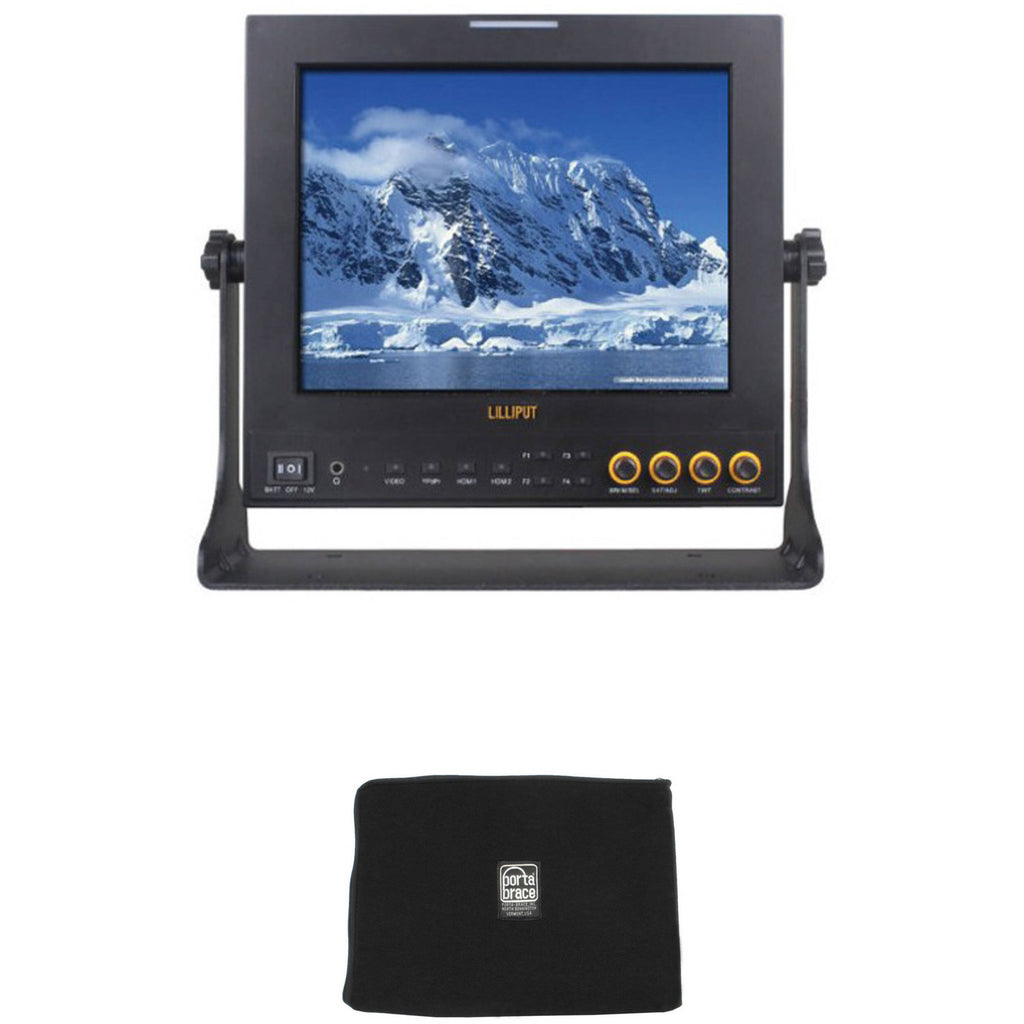

Monitor your broadcast signals with clarity with the Lilliput 969A/S 9.7" Field Monitor with Pouch Kit put together by . The kit includes the 969A/S 9.7" Field Monitor and a soft padded pouch. The slim IPS display features a 1024 x 768 resolution and supports input and output of up to 1080p signals, as well as 3G-SDI, HDMI, and composite BNC input and output connectors. The soft pouch features padding to protect your monitor from scratches and dust, and it features a zipper closure.

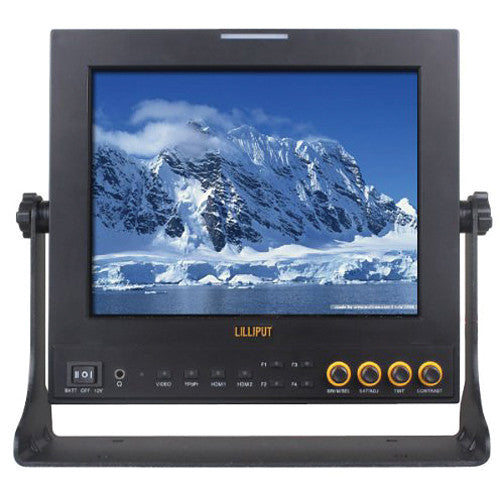

The Lilliput 969A/S 9.7" Field Monitor is a 4:3 aspect ratio broadcast monitor featuring a slim design and supplied with a swiveling stand for desktop use. It has an IPS display with a 1024 x 768 resolution and supports up to 1920 x 1080 resolution signals. It offers a comprehensive set of connections consisting of 3G-SDI input/output, HDMI input/output, composite input/output on BNC connectors, L/R audio output, and a tally input. There's also a USB port for charging accessory devices while out in the field. The 969A/S also features a variety of display tools, including peaking, false color, histogram, and picture-in-picture.
A built-in speaker and headphone jack are available for audio monitoring, and four user-assignable function buttons and easy-access adjustment dials are provided on the front. A folding sun hood is included that also protects the screen when it's folded in. Two interchangeable battery plates (LP-E6 and L-series) are included, and an XLR power adapter is supplied for continuous power.
- IPS display with 178? viewing angle
- 1024 x 768 resolution
- Supports up to 1920 x 1080 resolution signals
- 3G-SDI, HDMI, and composite BNC input/output
- L/R audio output
- Tally input
- Folding sun hood
- Interchangeable LP-E6 and L-series battery plates
- XLR power adapter
- Swiveling desktop stand
- Peaking
- False color
- Histogram
- Exposure
- Center marker
- Pixel-to-pixel
- Color bar
- Screen marker
- Aspect ratio
- Check field
- Underscan/overscan
- Freeze input
- H/V delay
- 8x zoom
- Picture-in-picture

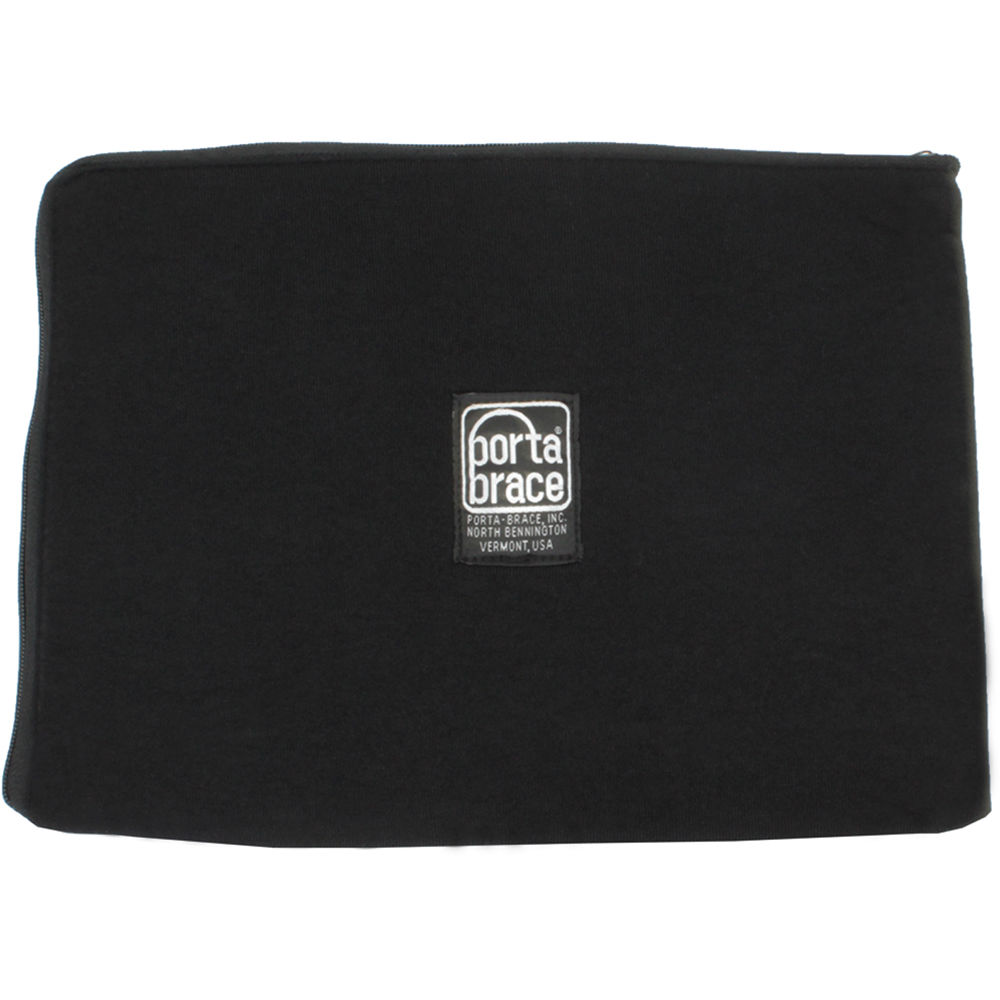

The Porta Brace Soft Padded Pouch for 9" Monitors surrounds your video monitor when it's not in use, protecting it from scuffs and scratches from other equipment it might be packed away with. The full-length zippered closure makes stowing the monitor away easy.
Items Included
- Lilliput 969A/S 9.7" Field Monitor
- Folding Sun Hood
- Swiveling Desktop Stand
- LP-E6 Battery Plate
- L-Series Battery Plate
- Battery Plate Bracket
- 12 VDC XLR Power Adapter
- Tally Connector
- HDMI Cable
- Limited 1-Year Manufacturer Warranty
- PortaBrace Soft Padded Pouch for 9" Monitors
- Limited 1-Year Manufacturer Warranty
Not Included
-
BatteriesEssential
Additional Resources
No additional resources available
Lilliput 969A/S 9.7" Field Monitor
| Display Size |
9.7" / 24.6 cm
|
| Native Resolution |
1024 x 768
|
| Battery |
1x L-Series or LP-E6 Mount on Included, Interchangeable Plates
|
| Power Consumption |
18 W
|
| Panel Type |
IPS-Type LCD
|
| Display Size |
9.7" / 24.6 cm
|
| Native Resolution |
1024 x 768
|
| Aspect Ratio |
4:3
|
| Viewing Angle |
Horizontal: 178?
Vertical: 178? |
| Maximum Brightness |
400 nits / cd/m2
|
| Contrast Ratio |
600:1
|
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
Mono
|
| Power I/O |
1x XLR 4-Pin (24 VDC) Input
|
| Input Power |
7 to 24 VDC
|
| Battery |
1x L-Series or LP-E6 Mount on Included, Interchangeable Plates
|
| Power Consumption |
18 W
|
| Operating Conditions |
-4 to 140?F / -20 to 60?C
|
| Storage Conditions |
-22 to 158?F / -30 to 70?C
|
| Dimensions |
9.8 x 6.7 x 1.2" / 24.89 x 17.02 x 3.05 cm
|
| Package Weight |
9.95 lb
|
| Box Dimensions (LxWxH) |
16.9 x 14.6 x 5.6"
|
