Description

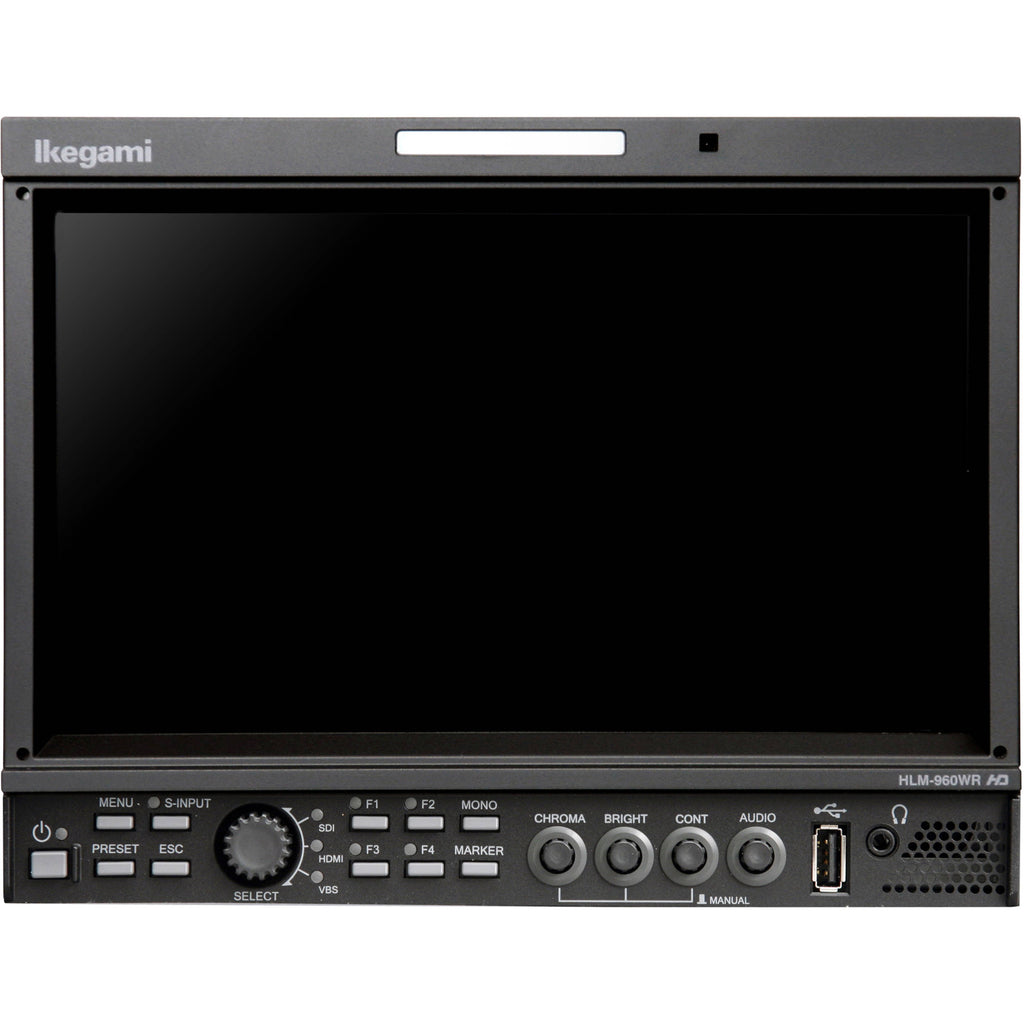

The 9" Full HD Multi-Format LCD Monitor from Ikegami features 1920 x 1080 resolution LCD panel with LED backlight. It offers multi?format 3G/HD/SD?SDI inputs, as well as HDMI input and 4K 2SI (3Gx1) input is available for 2K monitoring of a 4K signal. It also features FM and vector displays, audio level monitoring, and USB connector for auto setup, mouse control, and file storage.
- 9" 1920 x 1080 LCD panel with LED backlight
- Multi-format 3G/HD/SD-SDI inputs, as well as HDMI input
- Four SDI inputs (by setting outputs into inputs)
- 4K 2SI (3Gx1) input is available for 2K monitoring of a 4K signal
- Two-video side-by-side display
- WFM and vector displays
- Audio level monitoring
- USB connector for auto setup, mouse control, and file storage
- AC or DC powering
- Dual rackmount or standalone
| Panel Type | LCD/LED backlight |
| Number of Pixels | 1920 x 1080 |
| Display Size | 9" / 23 cm |
| Brightness | 400 cd/m 2 |
| Contrast Ratio (Typical) | 700:1 |
| Display Color | 16.77 million colors, 8?bit |
| Viewing Angle | 178° (up & down, left & right typical) |
| Format Support | 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080PsF: 23.98/24/29.97/30 1080i: 50/59.94/60 720p: 23.98/24/25/29.97/30/50/59.94/60 575i: 50 480i: 59.94 |

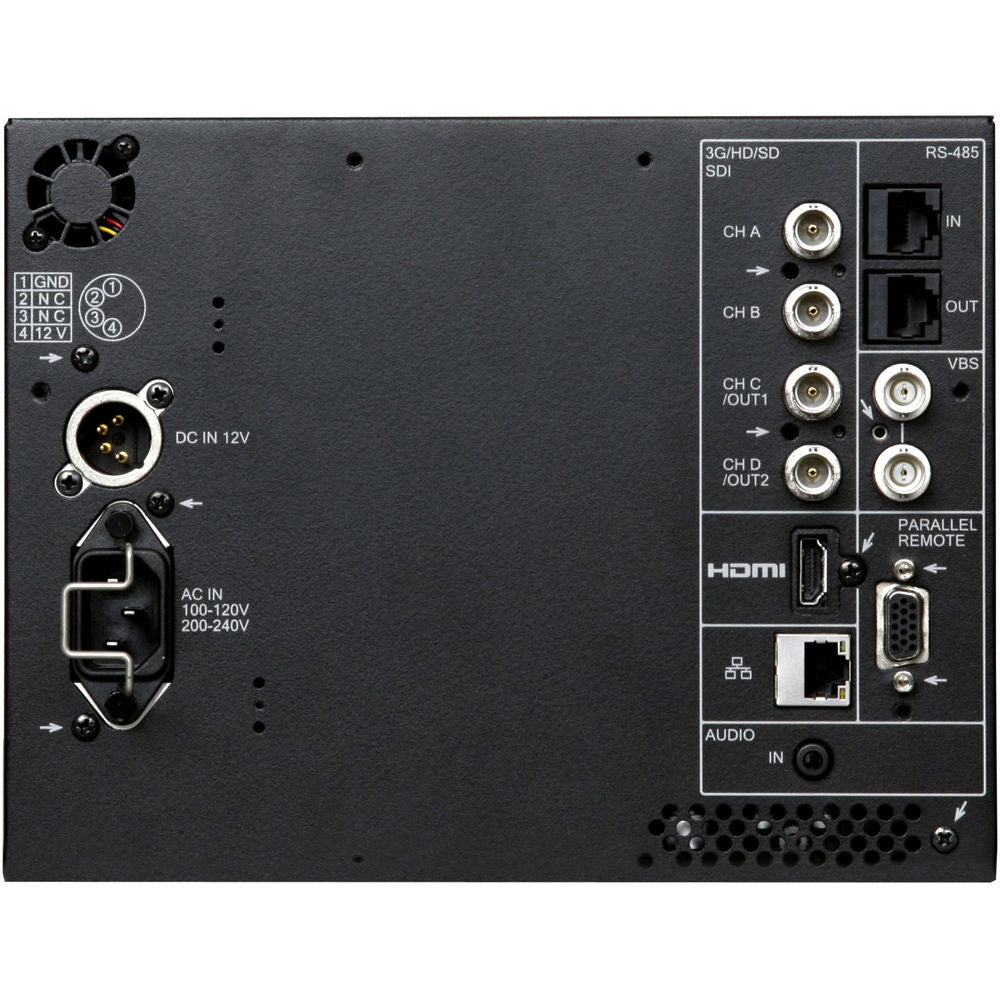

| Video Input / Output | 3G/HD/SD-SDI: 2 inputs with 2 loop-through outputs, or 4 inputs VBS: 1 input with 1 loop-through output HDMI: 1 input |
| Audio Input | Analog Audio Input: Standard (stereo mini jack) Display: Standard 8-channel embedded audio level meter display |
| Speaker | Rating Output: 350 mW Analog Audio Output: Standard (monaural) Embedded Digital Audio Output: Standard (monaural) 5.1-channel surround down-mix output Headphone output |
| Power Requirements | 100 to 120 VAC, 200 to 240 VAC 12 VDC |
| Power Consumption | AC: 23 W DC: 20 W / 1.6 A |
| Rack-Mountable | 4 RU |
| Dimensions | 8.8 x 6.8 x 2.8" / 22.3 x 17.2 x 7.1 cm |
| Weight | 4.41 lb / 2.0 kg |
