Description
- Full HD 1920 x 1200
- IPS 160° Wide-Viewing Angle
- 16.7M Precise Color
- 1200:1 Contrast Ratio, 323 ppi
- Professional Rec. 709 Color Calibration
- Ultra-Thin, Lightweight 11.3 oz Design
- 3G-SDI and 4K HDMI Monitoring
- Shoe Mount Adapter, 360° Rotation

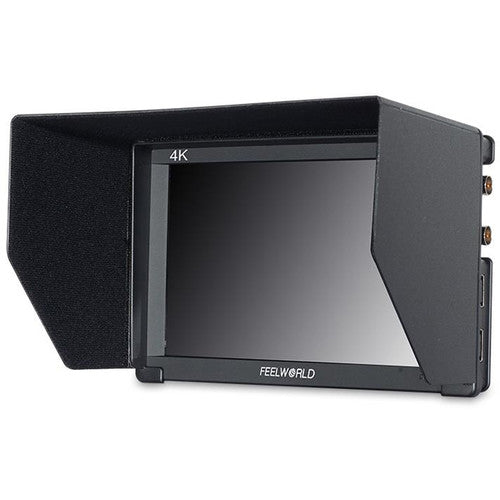

- Collapsible Sunshade
- L-Series Battery Plate Included
The FW703 3G-SDI 4K HDMI On-Camera Monitor from FeelWorld features a 7" Full HD screen with a resolution of 1920 x 1200 and up to 323 ppi density. This compact monitor includes 3G-SDI and 4K HDMI inputs and outputs. The IPS 160° wide-viewing angle allows the operator to have a clear, easy-to-see image as their position shifts, and features a brightness of 450 cd/m 2 with a contrast ratio of 1200:1. The FW703 features professional color calibration, peaking, zoom, anamorphic mode, markers, and image flip. The monitor includes an HDMI to mini HDMI cable, sunshade, shoe mount adapter, and an L-series type battery plate. Software upgrade on this monitor is done via its USB port.
- 3G-SDI and 4K HDMI loop-through output
- Full HD 1920 x 1200 resolution
- 160° wide-viewing angle IPS panel
- Histogram
- Peaking focus assist (red, green, blue)
- False colors
- Zebra exposure (1-100 IRE adjustable)
- Nine-grid (4K input not supported)
- Embedded audio meter
- Camera mode
- 4x, 9x, 16x zoom (4K input not supported)
- Anamorphic mode (1.3x, 2.0x, 2.0x mag)
- Pixel-to-pixel (4K input not supported)
- Center marker
- Safe area (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
- Marker color (red, green, blue, white, black)
- Check field (red, green, blue, mono)
- Image flip (H, V, H/V)
- Image freeze
- Zoom-all (4K input not supported)
- U/D and L/R zoom (4K input not supported)
- Color temperature adjustment
FeelWorld FW703 specs
| Screen Size | 7" IPS |
| Display Colors | 16.7M (8-bit) |
| Resolution | 1920 x 1200 |
| Pixel Pitch | 0.07875 mm (H) x 0.07875 mm (W) |
| Aspect Ratio | 16:10 |
| Brightness | 450 cd/m 2 |
| Contrast Ratio | 1200:1 |
| Backlight | LED |
| Viewing Angle | 80°/80° (L/R) 80°/80° (U/D) |
| Inputs | 1 x 3G-SDI 1 x HDMI 1 x USB (for upgrade) |
| Outputs | 1 x 3G-SDI 1 x HDMI |
| Audio Out | 1 x Built-in speaker 1 x 3.5 mm stereo headphone jack |
| Power Connector | 12 DC input |
| SDI Format Support | 1080p 60/59.94/50/30/29.97/25/24/23.98 1080PsF 24/23.98 1080i 60/59.94/50 720p 60/59.94/50/30/29/25/24/23.98 576i 480i |
| HDMI Format Support | 4096 x 2160p 24 3840 x 2160p 30/29.97/25/24/23.98 1080p 60/59.94/50/30/29.97/25/24/23.98 1080PsF 24/23.98 1080i 60/59.94/50 720p 60/59.94/50/30/29/25/24/23.98 576p/i 480p/i |
| Input Voltage | 6.5 to 24 VDC |
| Power Consumption | ?9 W |
| Operating temperature | -4 to 131°F / -20 to 55°C |
| Storage Temperature | -22 to 149°F / -30 to 65°C |
| Mounting Thread | 1/4"-20, on bottom |
| Battery Plate | F970, L-series type |
| Dimensions | 7.1 x 4.7 x 0.9" / 18.0 x 12.0 x 2.2 cm |
| Weight | 11 oz / 320 g 12 oz / 350 g (with F970 battery plate) |
| Packaging Info | |
|---|---|
| Package Weight | 1.85 lb |
| Box Dimensions (LxWxH) | 8.8 x 6.2 x 2.9" |
- HDMI to Mini HDMI Cable
- Sunshade
- Shoe Mount Adapter
- L-Series Battery Plate
- Limited 1-Year Warranty
