Desview S14-HDR 14" UHD 4K60 Professional Director Broadcast Monitor

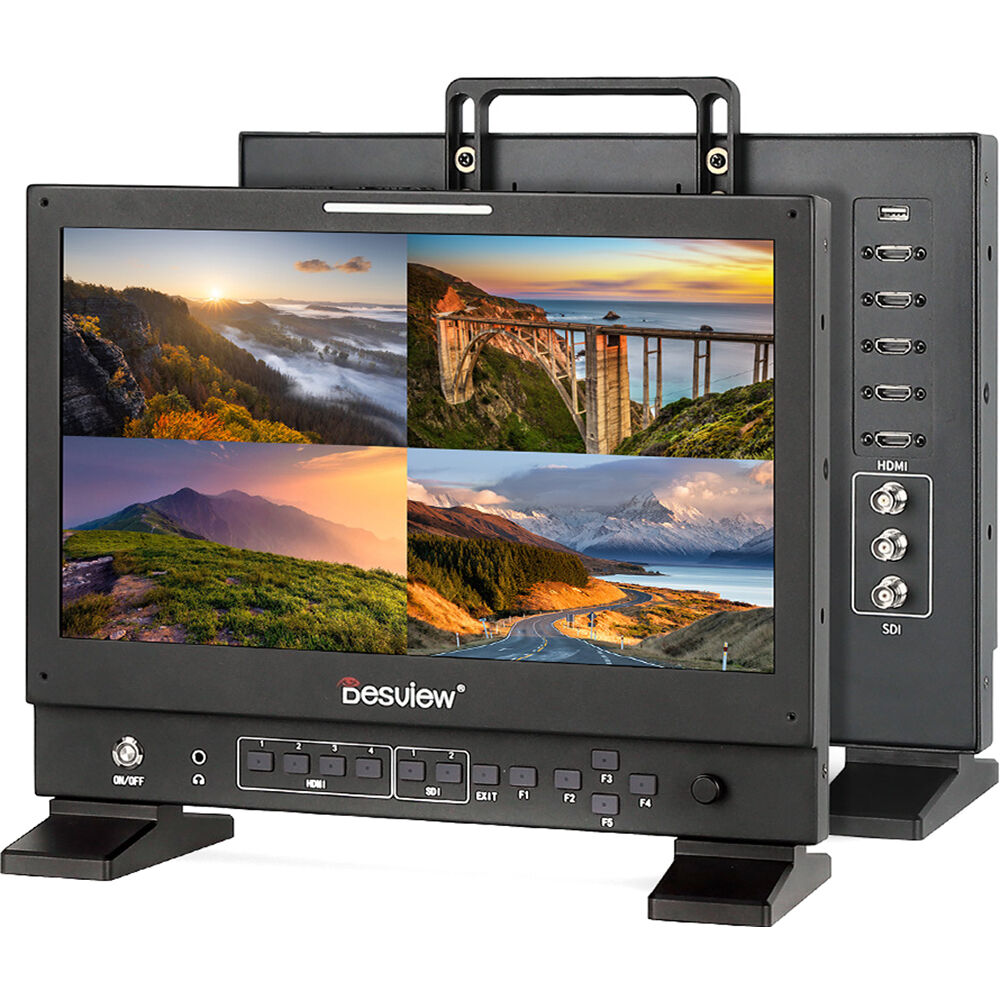

Bring multiview 4K monitoring wherever you go using the S14-HDR 14" UHD 4K60 Professional Director Broadcast Monitor from Desview. Ideal for directors in ENG, live broadcast, and mobile production, this monitor has both 3G-SDI and HDMI inputs and outputs, HDR support for nuanced imaging, supports DCI/UHD 4K60 video via HDMI, and quad PiP/PbP format displays. The 3840 x 2160 4K display has a contrast ratio of 1000:1, 400 cd/m² of brightness, and can be used for tabletop mounting. Power the monitor via the V-mount battery plate, the included AC cable, or a separately available DC adapter.

• Rests on two feet and is ideal for tabletop use
• Features a 100 x 100 VESA mounting pattern on the back
• Ideal for use in ENG, live broadcasts, and post workflows

• Support for multiple video formats up to DCI/UHD 4K60 via HDMI and up to 1080p60 via 3G-SDI

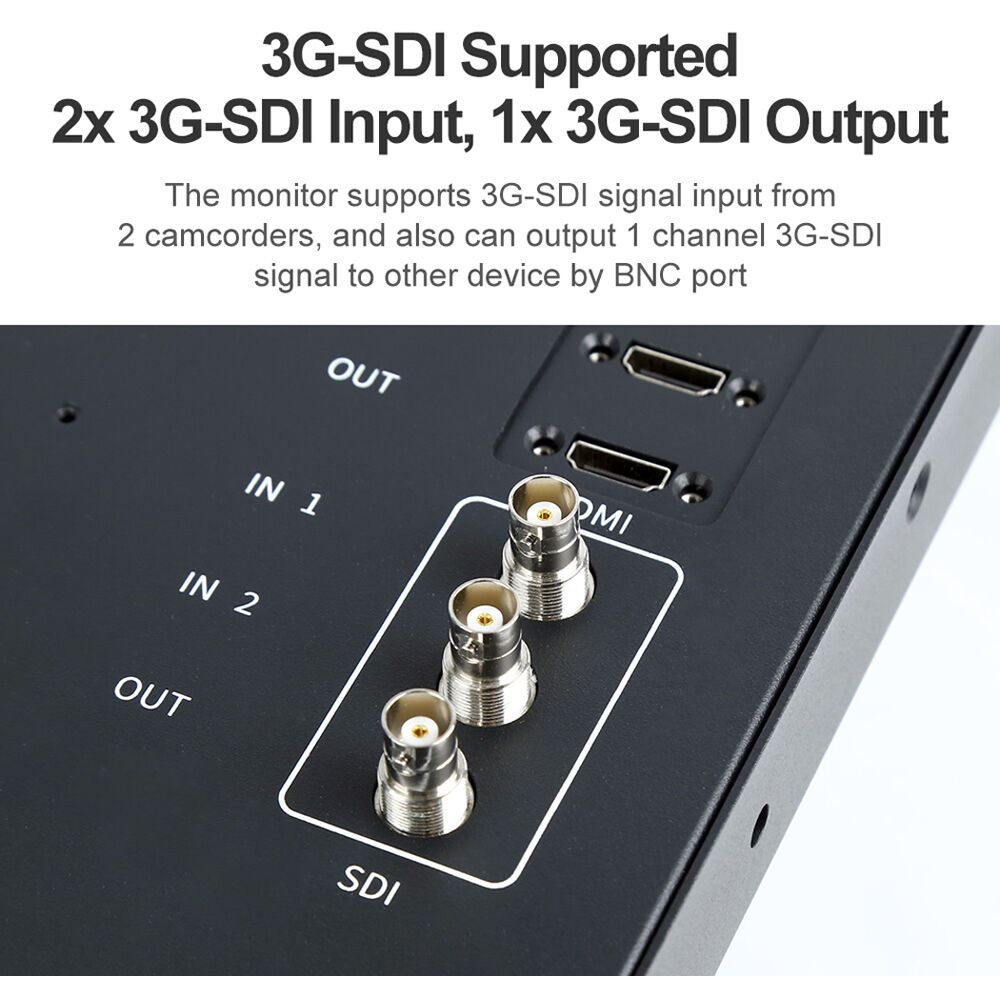

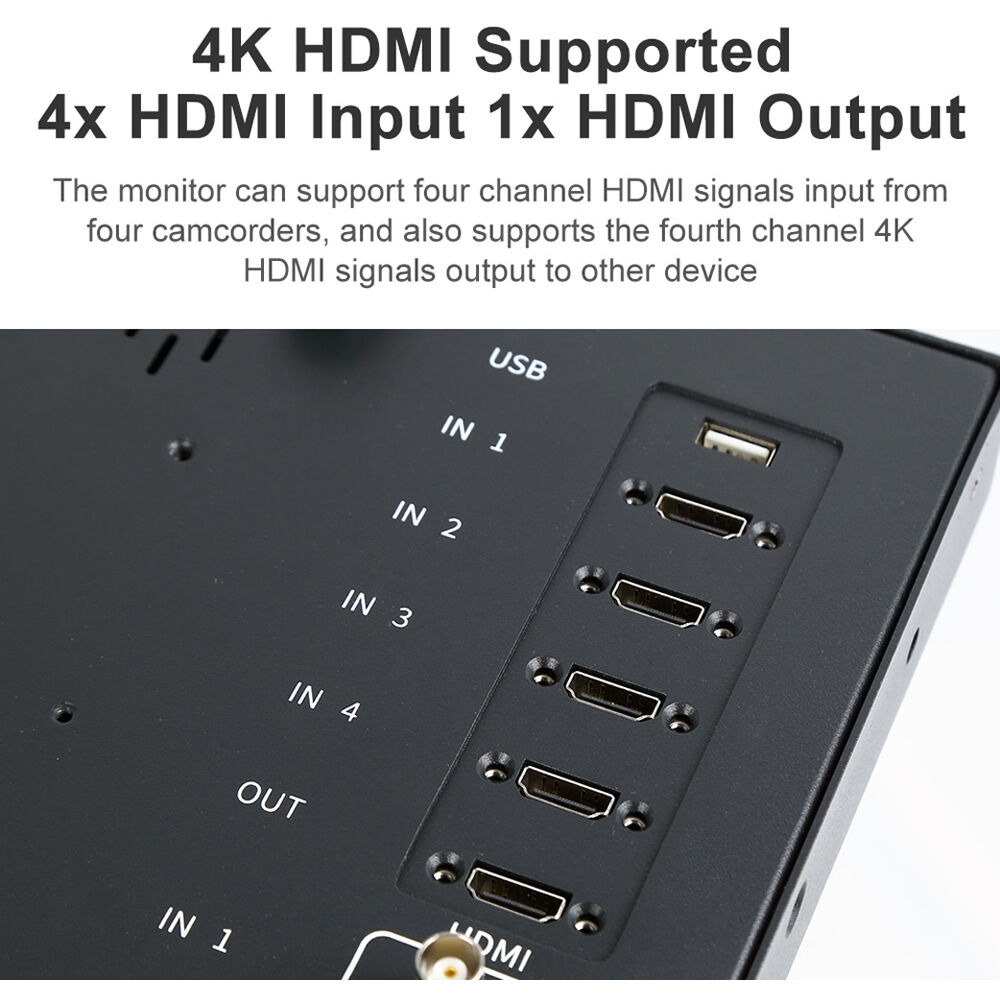

• Four HDMI inputs and one HDMI output, two SDI inputs, and one SDI output

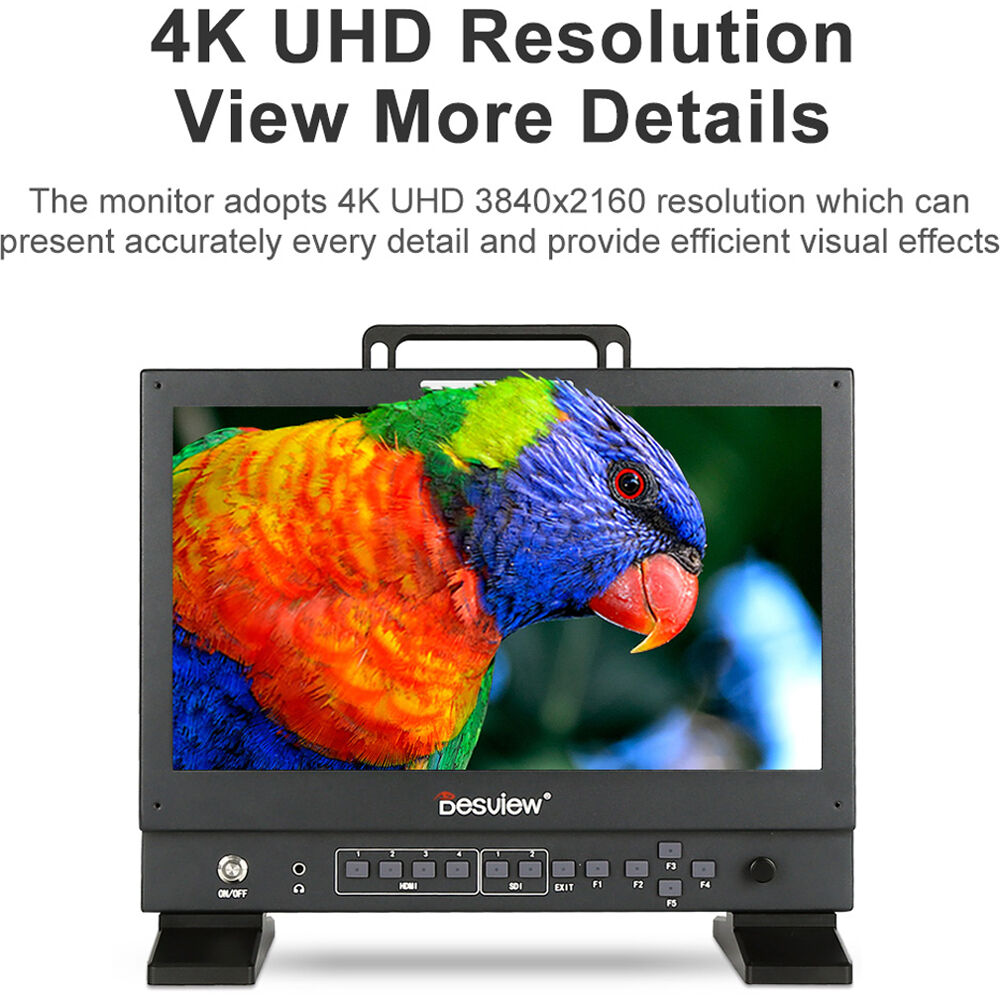

• 3840 x 2160 LCD screen with a contrast ratio of 1000:1
• Wide 178° viewing angle both horizontally and vertically
• Offers 400 cd/m² brightness

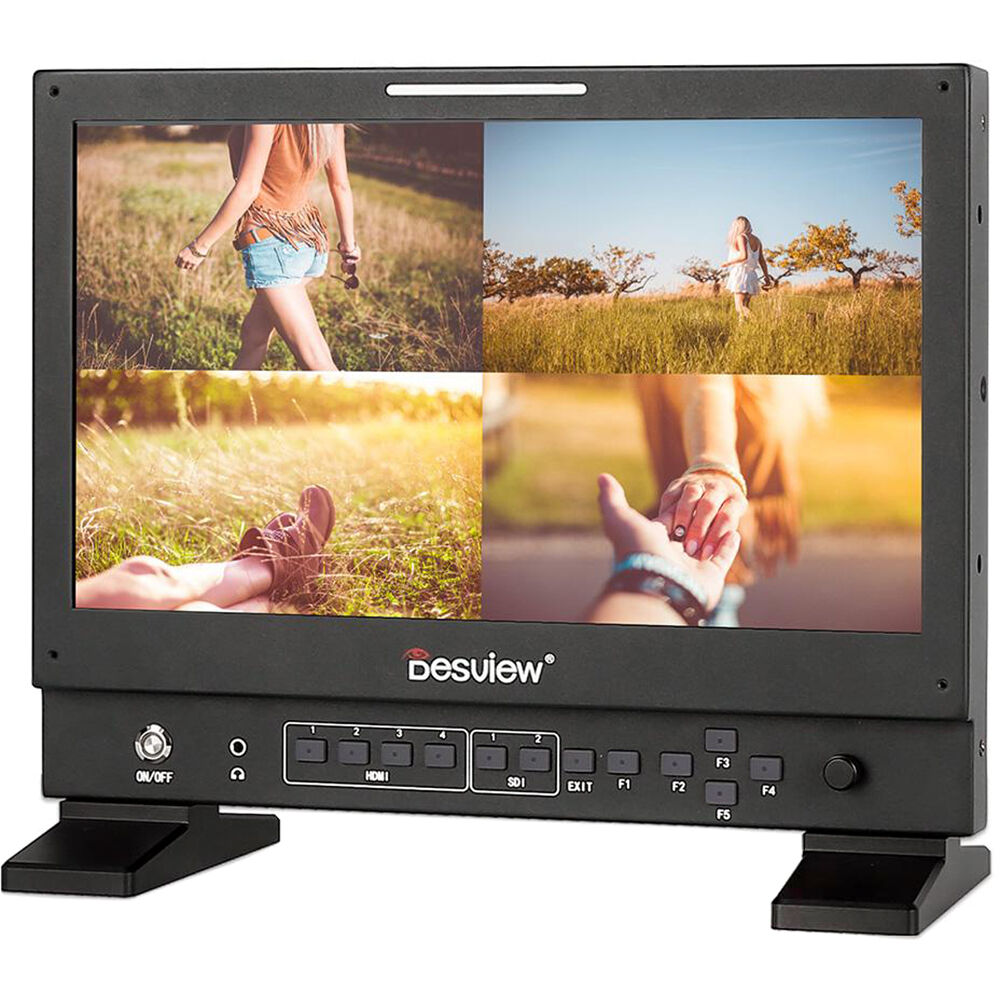

Displays up to four 4K sources in a quad PIP/PBP format simultaneously.

Imaging tools like selectable markers and safety borders, selectable color temperature, false color, and more enable you to precisely adjust the image.

The front panel features a tally light, which can be controlled via the RJ45 port on the rear panel.

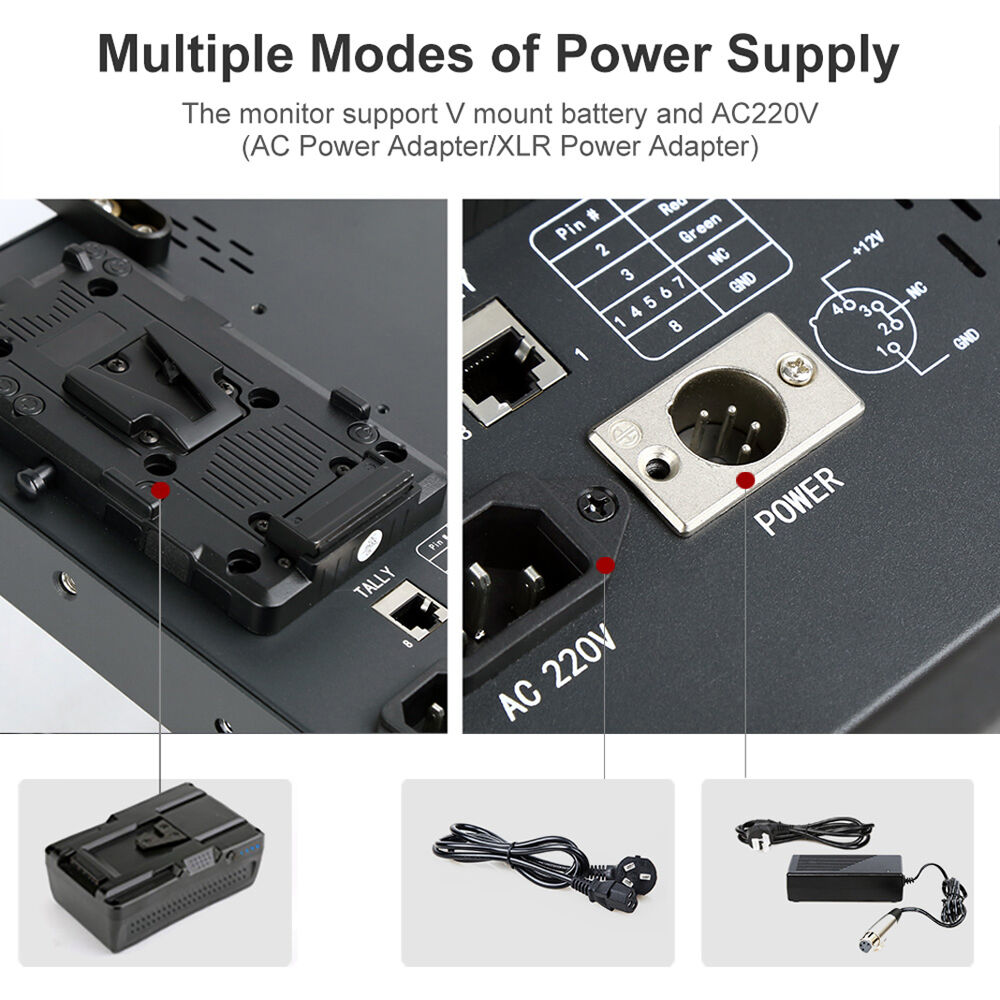

Power the monitor using the included V-mount battery plate or the AC adapter.

Monitor your audio using the 3.5mm headphone jack or dual speakers.

Desview S14-HDRSpecs

Display Size	14.00" / 35.6 cm
Native Resolution	3840 x 2160
Touchscreen	No
HDR Support	Yes
Video I/O	4x HDMI (Unspecified Signal) Input 2x BNC (3G-SDI) Input 1x HDMI (Unspecified Signal) Output 1x BNC (3G-SDI) Output
Media/Memory Card Slot	No
Video Format	HDMI DCI 4K: 30/29.97/25/24/23.98 UHD 4K: 30/25/24 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 60/59.94 SDI 1080p: 30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 60/59.94
Battery Type	1x V-Mount
Power Consumption	26 W (Maximum)

Panel Type	LCD
Display Size	14.00" / 35.6 cm
Native Resolution	3840 x 2160
Aspect Ratio	16:9
Viewing Angle	Horizontal: 178° Vertical: 178°
Touchscreen	No
Maximum Brightness	400 nits / cd/m2
Contrast Ratio	1000:1
HDR Support	Yes
Pixels Per Inch (ppi)	314 ppi
Image Controls	Color Temperature Selection, False Color

Video I/O	4x HDMI (Unspecified Signal) Input 2x BNC (3G-SDI) Input 1x HDMI (Unspecified Signal) Output 1x BNC (3G-SDI) Output
Audio I/O	1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	Stereo
Power I/O	1x IEC Input 1x XLR 4-Pin Input 1x USB-A (2 A / 5 VDC) Output
Other I/O	1x USB-A (Firmware/LUT Upload) Input 1x RJ45 (Tally) Input/Output
Media/Memory Card Slot	No
Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No

Video Format	HDMI DCI 4K: 30/29.97/25/24/23.98 UHD 4K: 30/25/24 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 60/59.94 SDI 1080p: 30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 60/59.94
Gamma Curve	DCI-P3, Rec709

Input Power	12 to 24 VDC 100 to 240 VAC, 50 / 60 Hz
Battery Type	1x V-Mount
Power Consumption	26 W (Maximum)

Mounting-Hole Pattern

100 x 100 mm

Operating Conditions	-4 to 140°F / -20 to 60°C at 10 to 90% Humidity
Storage Conditions	-22 to 158°F / -30 to 70°C

Package Weight	21.105 lb
Box Dimensions (LxWxH)	18 x 15.6 x 12.9"
