- Three Points of Articulation
- Unfolds to 11" Long
- Metal Construction
- Center Locking Twist Handle
- Integrated Anti-Twist Fitting
- Ball Joint End with 1/4"-20 Stud

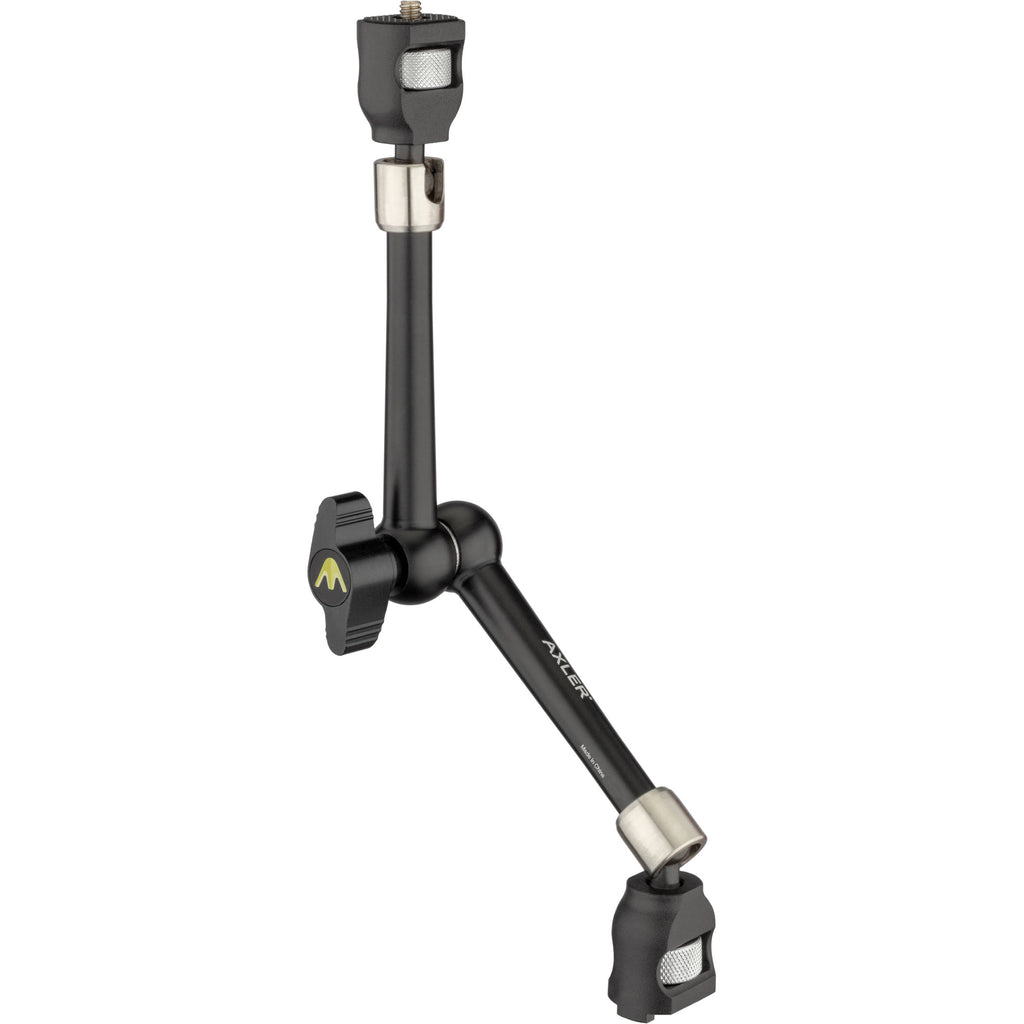

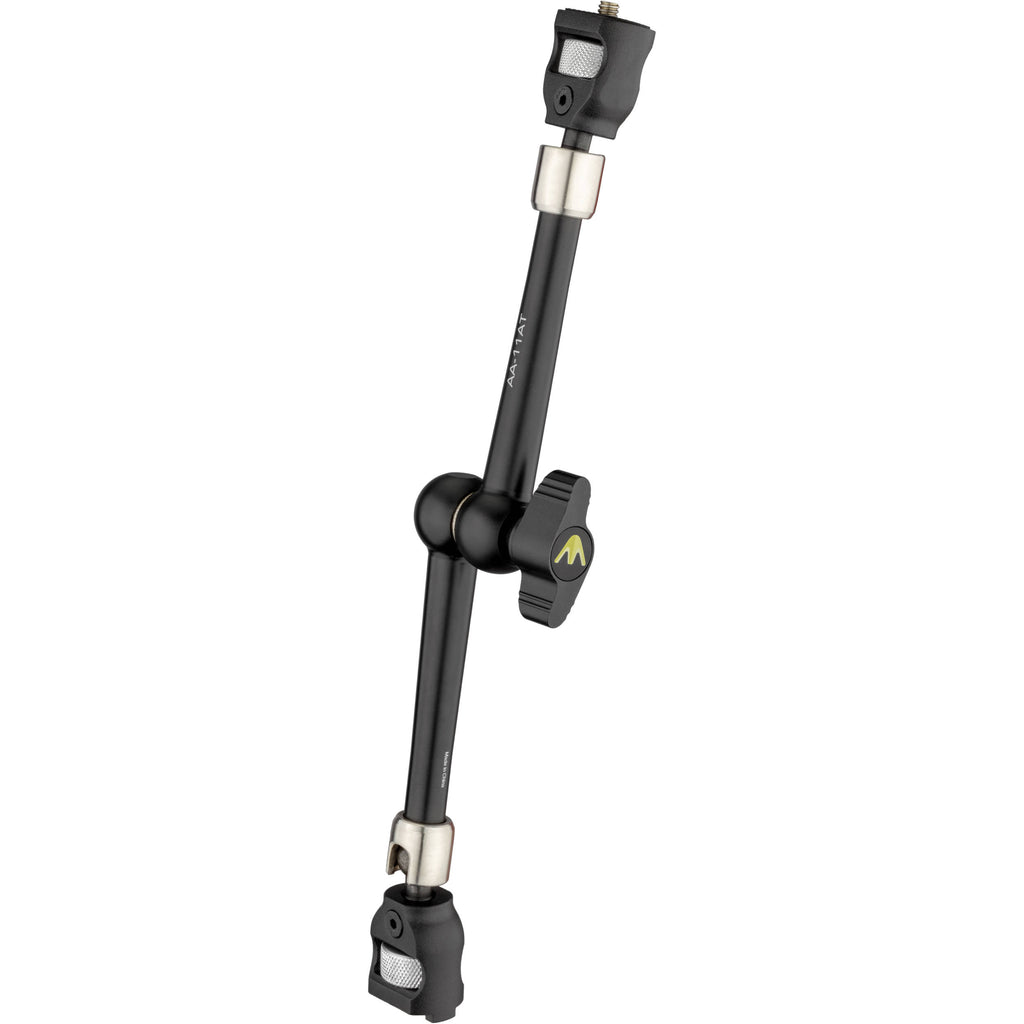

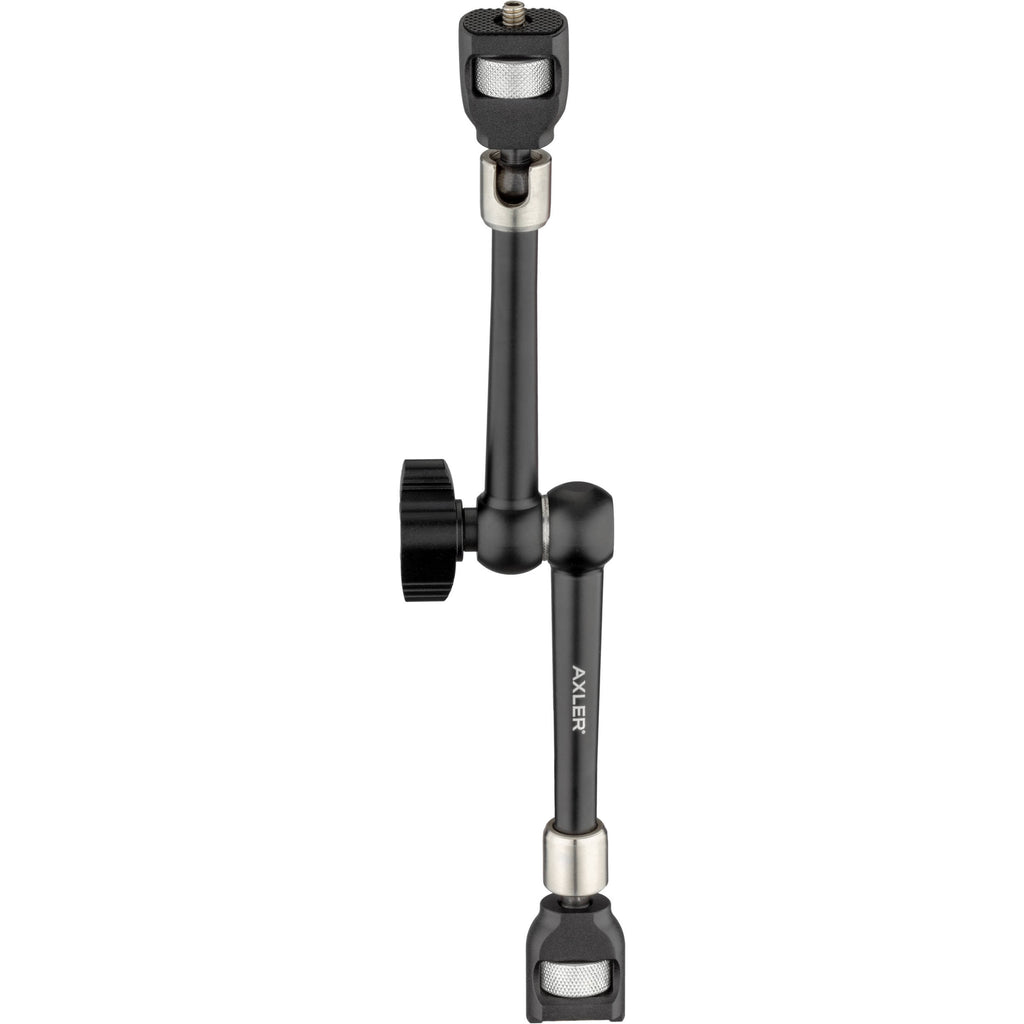

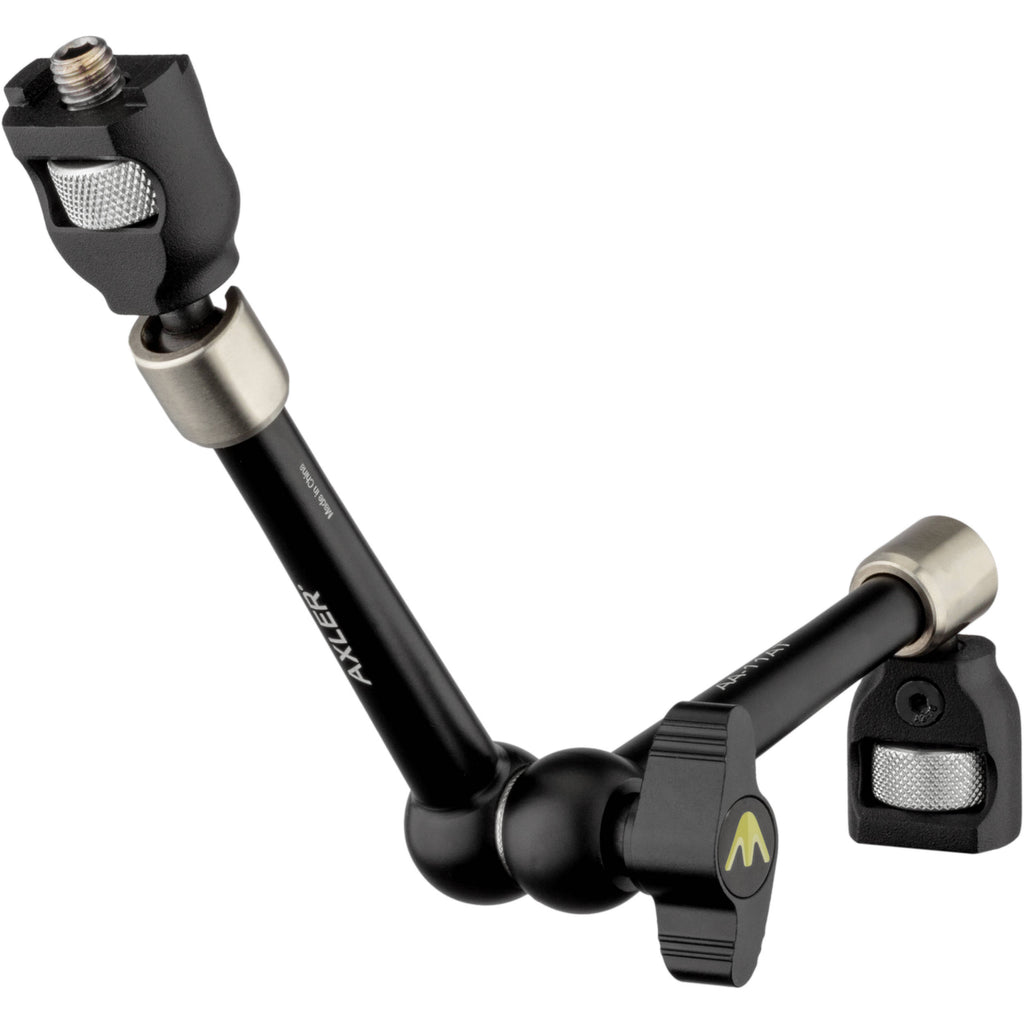

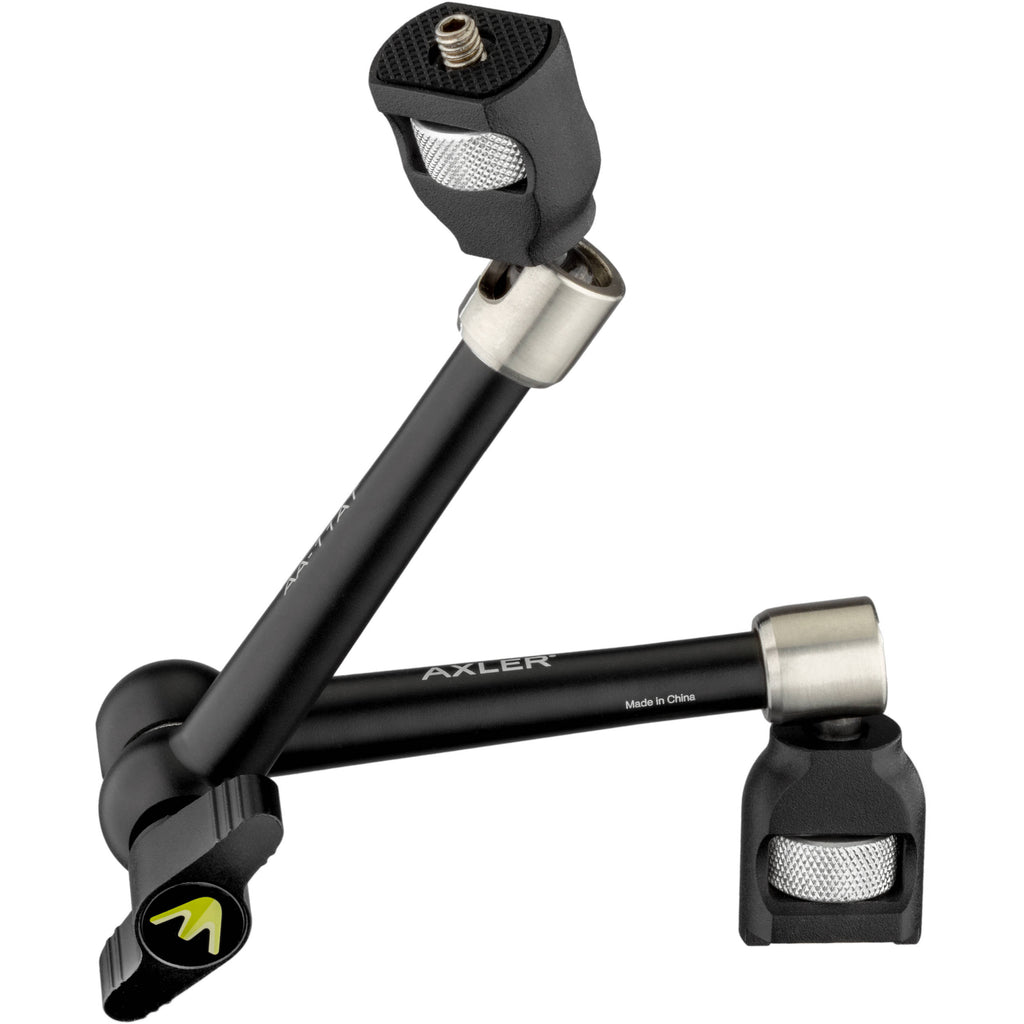

The Axler RECODO 11" Arm with 1/4"-20 to 3/8"-16 Anti-Twist Fitting is a flexible 11.8" long arm for attaching and positioning available accessories to your camera or accessory mounting point. It features a 1/4"-20 threaded stud on one end, and a 3/8"-16 threaded stud with an integrated anti-twist fitting. It is machined from anodized aluminum for strength, and features three points of articulation that tighten and loosen using a single locking twist handle.
The ends of the arm are set into ball joints, with each joint providing swivel and lockable position adjustment. Each end features a rubber-topped platform that the threaded stud extends out of, and a thumbwheel that allows you to tighten your accessory on the mount.
- Single-Knob Tightening
- When the arm is loose, the center pivot and both ball joint ends are flexible and can be moved to almost any position. Tightening the center twist lock tightens the center pivot as well as both ball ends at the same time.
- Center Pivot
- The center pivot features two facing rosettes that provide a secure friction source to prevent the arms from slipping.
- Anti-Twist
- The built-in anti-twist fitting on the 3/8"-16 mounting block consists of two arcs with an inside space of 0.79", and is compatible with Manfrotto's Easy-Link system. It can mount on threaded bars with 3/8"-16 threaded holes, such as those found on camera cages, as long as the bars are no more than 0.79" wide.
UPC: 847628009288
In the Box
Axler RECODO 11" Arm with 1/4"-20 to 3/8"-16 Anti-Twist Fitting
Limited 1-Year Warranty
Axler Recodo specs
| Top Mount | 1/4"-20 Screw |
| Bottom Mount | 3/8"-16 Screw |
| Points of Articulation | 3 |
| Total Length | 11.8" / 29.97 cm |
| Weight | 10.3 oz / 292 g |
| Packaging Info |
| Package Weight | 0.68 lb |
| Box Dimensions (LxWxH) | 7.4 x 2.9 x 1.6" |
