Description
American DJ EVS3 Overview

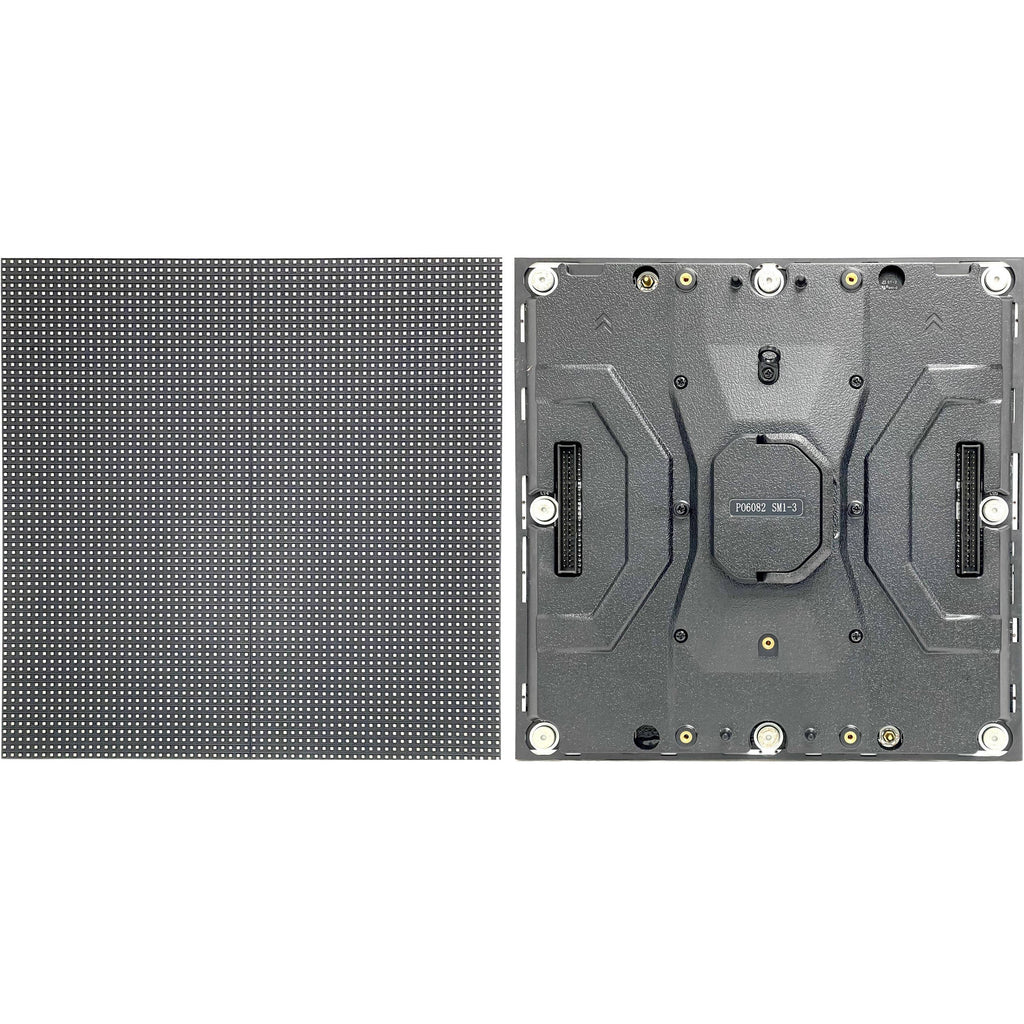

The American DJ Z-6010203700003-1 3.91mm Spare LED Module is a single LED module for the EVS3 LED video wall panels. Each EVS3 panel consists of four individually replaceable modules. Having a number of spare modules on hand will help minimize downtime in case of failure. The panels are front or rear serviceable for easy replacement.
In the Box
- American DJ Z-6010203700003-1 3.91mm Spare LED Module for EVS3 Video Wall Panel
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
American DJ EVS3Specs
Key Specs
| Native Resolution |
64 x 64
|
| Maximum Brightness |
800 nits / cd/m2
|
| Inputs |
1 x Proprietary
|
| Outputs |
No
|
| Wireless |
No
|
| USB I/O |
No
|
| Ethernet I/O |
No
|
| Built-In Speakers |
No
|
| Media Card Reader |
No
|
Display
| Panel Type |
Direct View LED
|
| Native Resolution |
64 x 64
|
| Maximum Brightness |
800 nits / cd/m2
|
| Contrast Ratio |
5000:1
|
| Refresh Rate |
Not Specified by Manufacturer
|
| Bit Depth / Color Support |
Not Specified by Manufacturer
|
| Viewing Angle (H x V) |
160 x 140°
|
| Dot Pitch |
3.91 x 3.91 mm
|
Video
| TV Tuner |
No
|
Connectivity
| Inputs |
1 x Proprietary
|
| Outputs |
No
|
| Wireless |
No
|
| USB I/O |
No
|
| Ethernet I/O |
No
|
| Ambient Light Sensor |
No
|
| Multi-Input Support (PIP/PBP) |
No
|
Speaker
| Built-In Speakers |
No
|
Hardware
| Mobile App Compatible |
No
*As of November, 2023: Check with manufacturer for the most up-to-date compatibility |
| Media Card Reader |
No
|
| Built-In Mic |
No
|
Environmental
| Operating Temperature |
-4 to 104°F / -20 to 40°C
|
| Operating Humidity |
10 to 90% (Non-Condensing)
|
Electrical
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Adapter Type |
Internal
|
General
| Certifications |
cETLus
|
| Mounting-Hole Pattern |
No
|
| Lighting Lifespan |
50000 Hours
|
| Environmental Protection |
Advertised as Dust Resistant
*Test Methodology Not Supplied IP20 |
| IK Rating |
No
|
| Dimensions |
9.8 x 9.8" / 250 x 250 mm (Module)
|
