Description
- Stereo Viewing/3rd Imaging Optical Path
- 360� Rotating Head/45�-Inclined
- 0.7-4.5x Achromatic/Parfocal Objective
- 10x/20mm EWF Eyepieces
- 7x-45x Zoom/3.9-1" Working Distance
- Fine, Coarse Focusing/Diopter Adjustment
- Top Halogen Lamp/Bottom Fluorescent Lamp
- Stage Plate with Two Spring-Loaded Clips
- Cast Metal Frame with Gray Enamel Finish

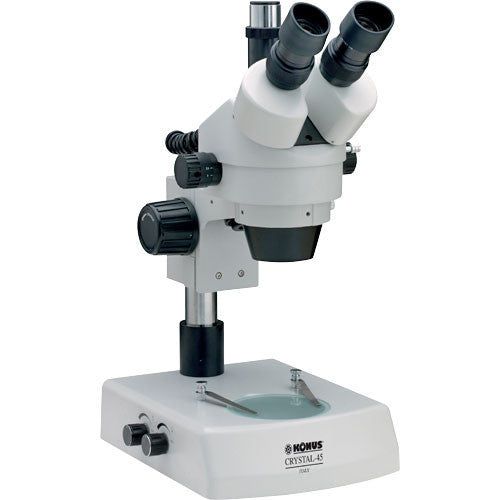

Konus Optics' Crystal-45 7-45x Zoom Stereoscopic Trinocular Microscope is a 120V stereoscopic microscope with a total magnification of 7x-45x. The two 10x EWF eyepieces offer 3-dimensional viewing with a superior depth of field. The achromatic objective lens system offers an achromatic and parfocal operation, which results in distortion-free imaging and the ability to change zoom without refocusing. While the 45�-inclined stereo binocular head offers comfortable viewing, its vertical 3rd imaging optical port allows simultaneous image and video capturing. A user-friendly design complements a range of features that make this microscope a welcome addition to labs and classrooms: a platform stand with a wide work surface, two metal clips for securing your samples, bottom florescent illumination, and a 15W top halogen lamp. Each of the illumination options has a dedicated brightness control knob located on the base.
The viewing head accommodates specimen heights up to 3.9" and is capable of 360� rotation for sharing the experience among colleagues and students without moving the microscope. An adjustable 51-75mm interpupillary distance, individually adjustable diopter correction, and two dedicated brightness controls provide the flexibility needed to create a customized viewing experience.
- Optical System & Illumination
-
- 10x, 20 mm eyepieces
- 0.7 - 4.5x objective lens
- 7x - 45x total magnification
- 45�-inclined binocular viewing
- Head rotates 360� for easy sharing
- Stereoscopic design provides 3-dimentional perception
- 3rd vertical optical path for digital imaging devices
- Achromatic and parfocal optical design
- Interpupillary adjustment: 51 - 75mm
- Both eyepieces have diopter adjustments
- Top illuminator: 15W halogen lamps
- Bottom illuminator: fluorescent lamp
- Stage, Focusing, and Construction
-
- Cast metal frame with pillar stand
- Adjustable working distance: 3.9-1"
- Fine and coarse focusing adjustments
- Stationary round base offers bottom illumination
- Two dedicated brightness control knobs on the base
- Two metal clips for securing specimens
- Rubberized eyecups
- Halogen Bulb
- 2 x Eyecups
- Power Cord
- Dust Cover
- Limited 2-Year Warranty
| Microscope Type | Stereo viewing Third imaging optical path |
| Objective Lens | 0.7 - 4.5x, achromatic, parfocal |
| Eyepiece | 10x, 20 mm, EWF |
| Magnification | 7 - 45x |
| Working Distance | 3.9 - 1" / 100 - 26 mm |
| Interpupillary Adjustment | 51 - 75 mm |
| Focuser | Coarse and fine |
| Specimen Stage | Yes, stationary |
| Illumination | Top: 15 W/12 V halogen lamp Bottom: fluorescent lamp |
| Power Requirement | 120 V |
| Dimensions | Base: 10.2 x 7.9 x 2.4" / 26 x 20 x 6 cm Height: 19" / 48.3 cm Post: 9.8 x 1.18" / 25 x 3 cm Microscope Head: not provided by manufacturer |
| Weight | 11.5 lb / 5.2 kg |
| Packaging Info | |
|---|---|
| Package Weight | 17.6 lb |
| Box Dimensions (LxWxH) | 19.8 x 14.8 x 10.6" |
