NearStream AM10X Dynamic XLR/USB Microphone with Boom Arm

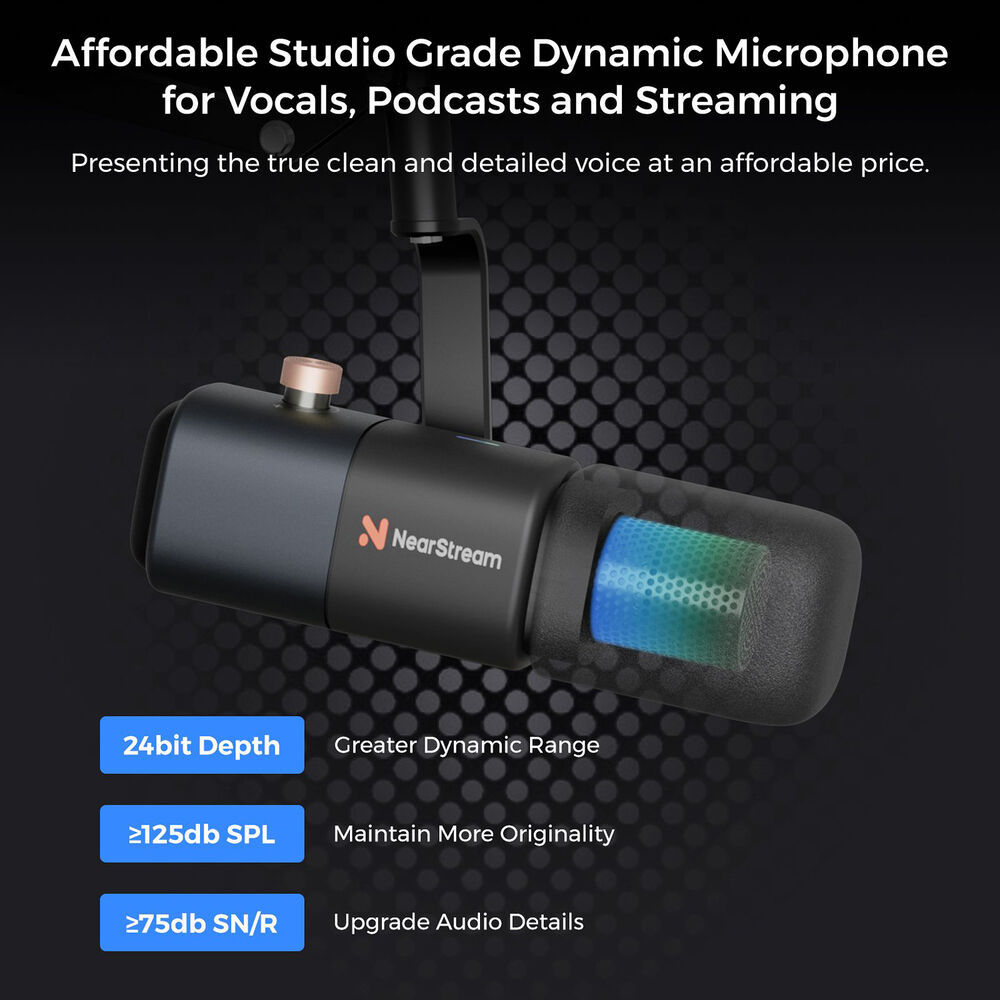

The NearStream AM10X is a USB and XLR dynamic microphone designed for gaming, streaming, podcasting, and basic studio recording. With a supercardioid pickup pattern, a built-in AI noise-canceling function, and a boom arm for positioning, it provides a functional audio solution for various setups.

Directional Sound Pickup with Noise Cancellation

The AM10X uses a supercardioid pickup pattern, which focuses on sound from the front while reducing background noise. A built-in noise-canceling button filters out some ambient noise, such as keyboard clicks, to help maintain voice clarity.

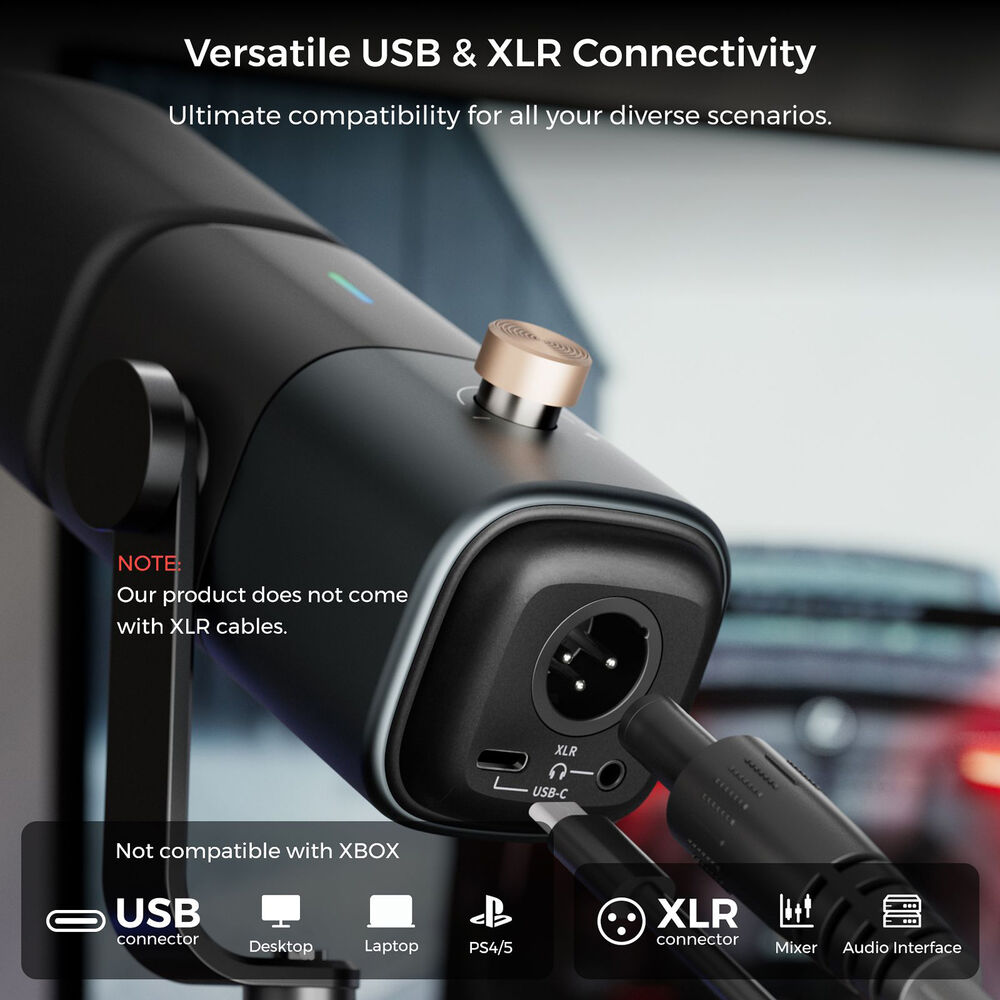

USB and XLR Connectivity

The microphone supports both USB and XLR connections to fit different recording needs:

• USB mode: Enables noise cancellation, real-time monitoring, and gain control.
• XLR mode: Works with mixers and audio interfaces for more flexible audio adjustments. (XLR cable not included; certain features like noise cancellation and gain control are only available in USB mode.)

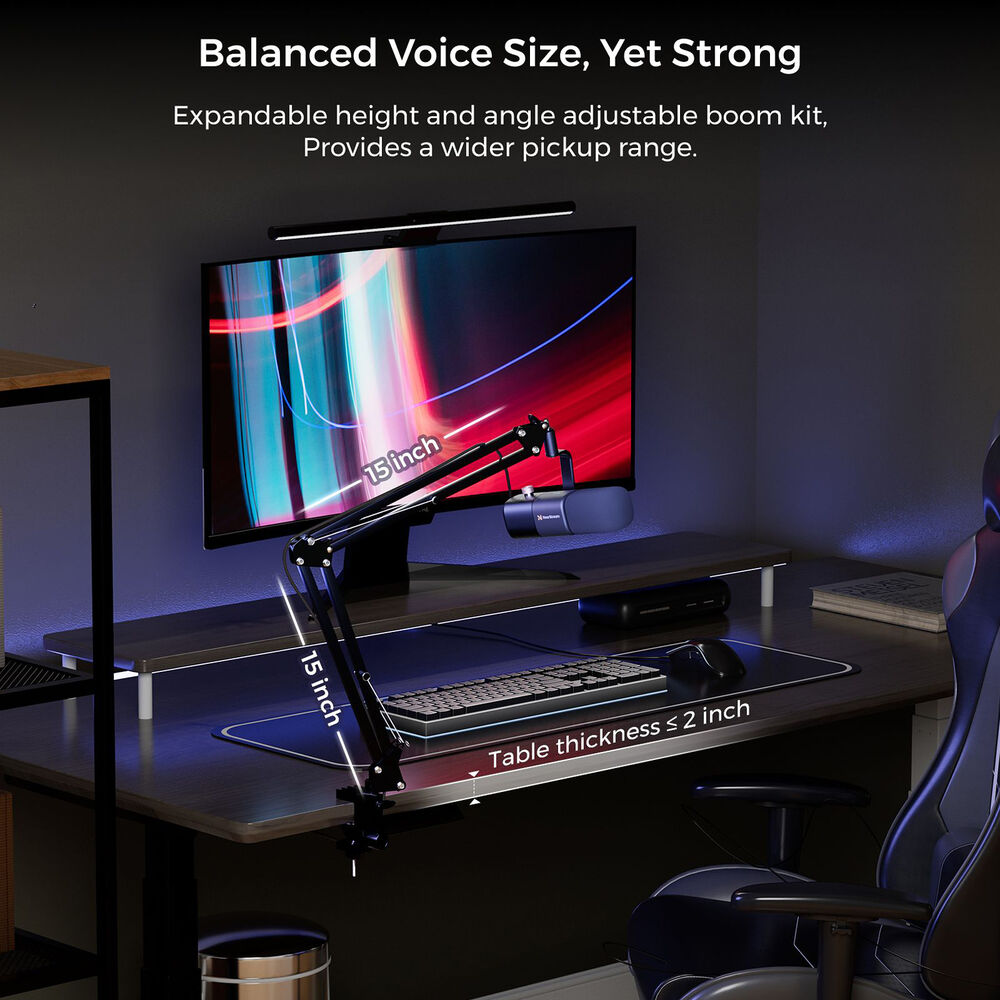

Adjustable Boom Arm

The included metal boom arm provides 180° vertical, 360° horizontal, and 180° head movement, allowing for flexible positioning. It is designed to hold the microphone securely without excessive movement or vibration. (Compatible with desktops up to 1.77 inches thick.)

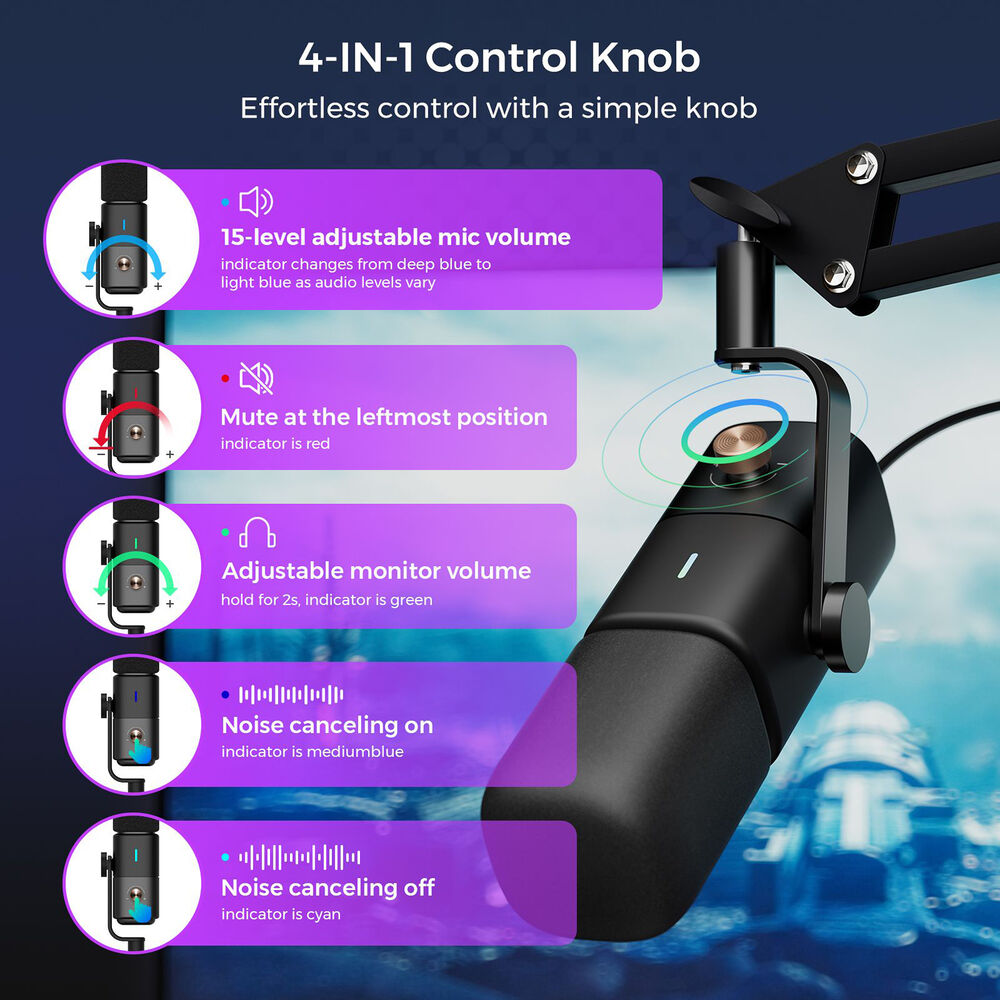

Multifunction Control Knob

A 4-in-1 control knob allows users to manage key settings:

• Short press to turn noise cancellation on or off (Blue = ON, Cyan = OFF)
• Long press to enable gain adjustment (15 levels available)
• Rotate to adjust volume
• Turn fully left to mute (Red light indicator)

Sound Monitoring and Simple Setup

A 3.5mm headphone jack allows for real-time sound monitoring when using USB mode. The USB connection works without additional drivers, making setup straightforward on most computers and audio interfaces.

Best Suited For:

• Gaming and streaming: basic voice capture for live chat and broadcasts
• Podcasts and online meetings: functional sound clarity for spoken content
• Entry-level recording: USB/XLR flexibility for different recording setups

NearStream AW-AM10X-P Specs

Microphone Type	Broadcast/Podcast
Polar Pattern	Supercardioid
Element Type	Dynamic
Frequency Response	40 Hz to 15 kHz
Maximum SPL	125 dB
Analog Output	1x XLR 3-Pin Male
USB/Digital Output	1x USB-C
Power Sources	Bus Power

Microphone Type	Broadcast/Podcast
Polar Pattern	Supercardioid
Element Type	Dynamic
Sound Field	Mono
Orientation	End Address
Controls	Mic Mute, Volume

Frequency Response	40 Hz to 15 kHz
Maximum SPL	125 dB
Sensitivity	-51 dB (0dB=1v/Pa @ 1kHz)

Analog Output	1x XLR 3-Pin Male
USB/Digital Output	1x USB-C
USB Class-Compliant	Yes
Wireless	No

A/D Conversion	24-Bit
Sample Rate	48 kHz
Digital Signal Processing & FX	Noise Cancelation
OS Compatibility	Windows macOS Linux Chrome OS
Mobile App Compatible	No

Power Sources	Bus Power
Operating Voltage	5 V

Color	Gray
Mounting Thread Size	Included Mount Has No Threading
Dimensions	H: 2.2 x W: 2.2 x L: 7.5" / H: 56 x W: 56 x L: 190 mm
Weight	6.6 oz / 187 g
