Description
MicW Measurement Mic Overview

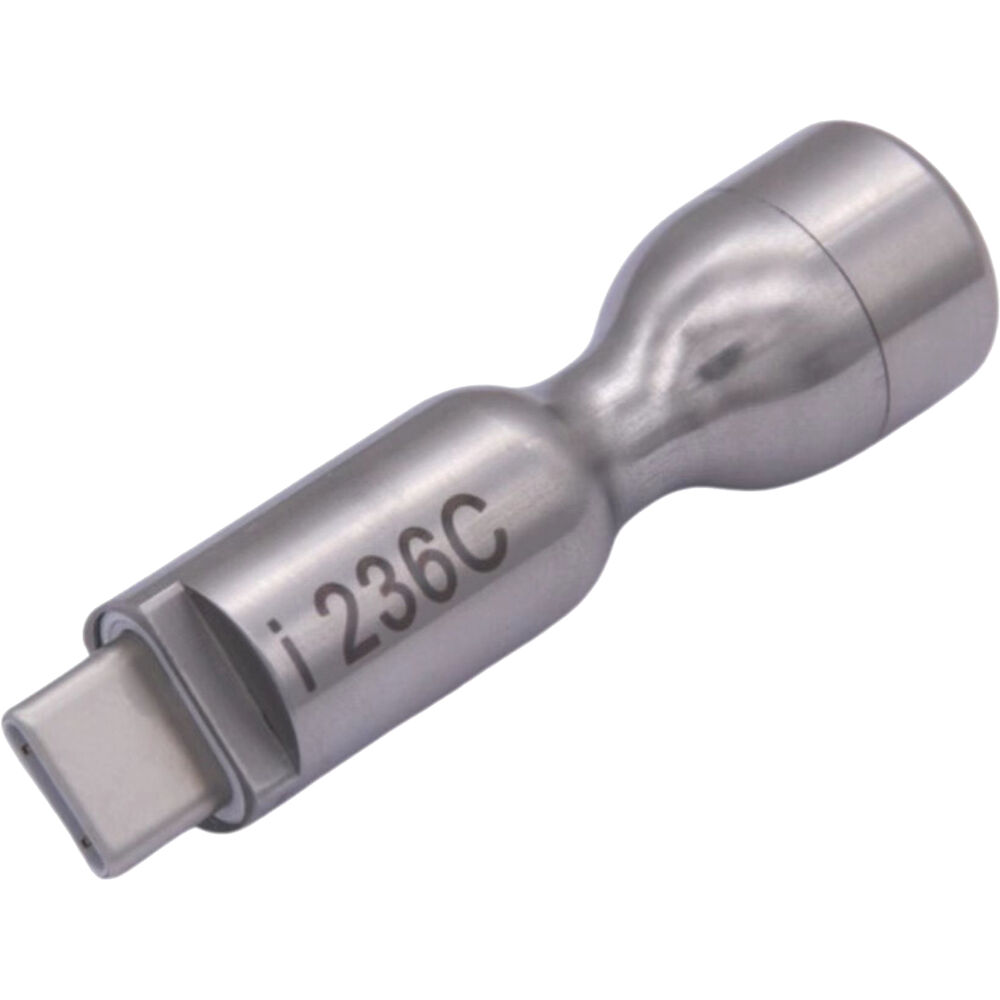

The MicW i236C is a high-performance 1/2? pre-polarized free-field measurement microphone designed specifically for iOS mobile devices with a USB-C connector. Featuring an omnidirectional pickup pattern and digital output, the i236C offers professional-grade measurement capabilities in a compact, plug-and-play format?no external hardware or power source required.
Developed from the trusted BSWA MPA436 array microphone, widely used in aerospace and automotive applications, the i236C brings lab-grade acoustic performance to mobile platforms. It is ideal for precision sound measurement, field recording, and acoustic analysis using apps such as NoiseLab.
The microphone delivers a flat frequency response from 20 Hz to 20 kHz, compliant with IEC 61672 Class 2 standards. With a signal-to-noise ratio of 80 dB, a wide dynamic range from 23 dBA to 119 dB, and sensitivity correction factors tested with NoiseLab, the i236C provides reliable and repeatable results in demanding environments.
Items Included

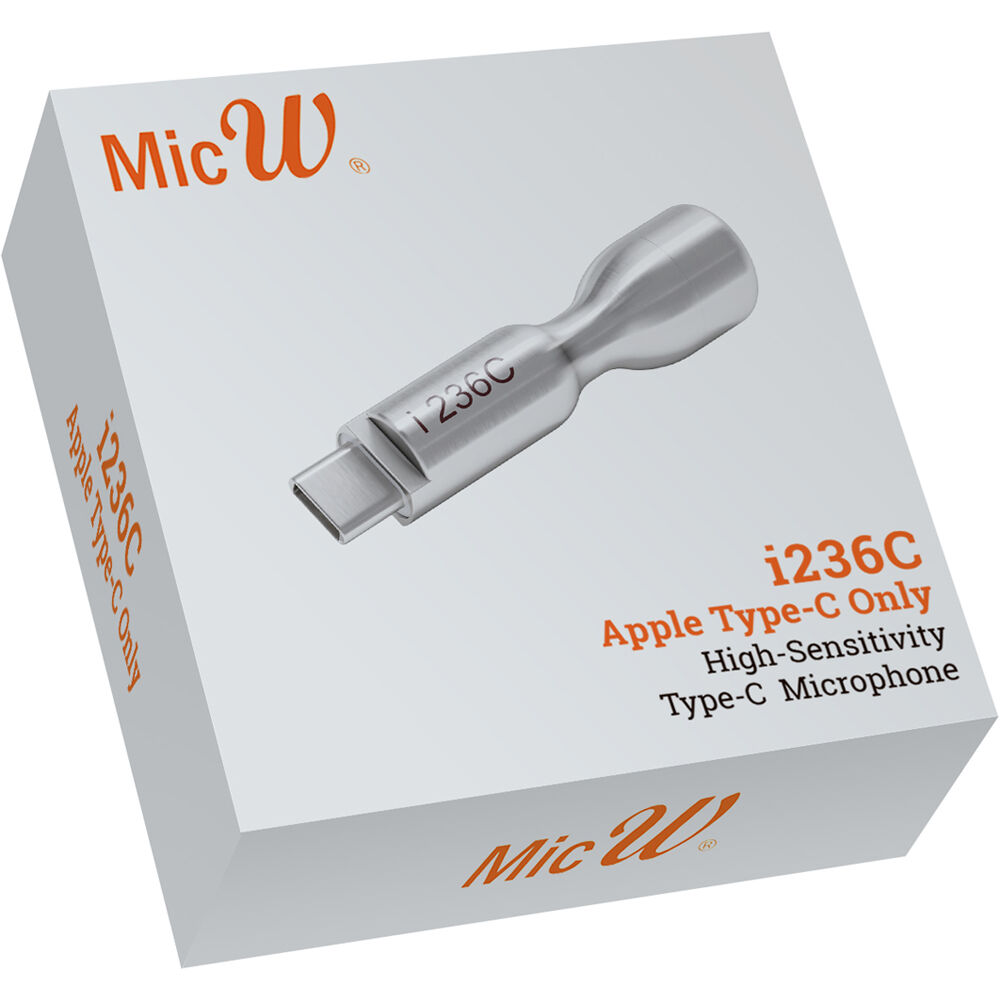

- MicW i236C 1/2" Digital Measurement Microphone for iOS Devices (USB-C)
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
MicW Measurement Mic Specs
| Microphone Type |
Measurement/Test
|
| Polar Pattern |
Omnidirectional
|
| Element Type |
Electret Condenser
|
| Frequency Response |
20 Hz to 20 kHz
|
| Maximum SPL |
119 dB
|
| Analog Output |
No
|
| USB/Digital Output |
1x USB-C
|
| Power Sources |
Plug-In Power
|
| Microphone Type |
Measurement/Test
|
| Polar Pattern |
Omnidirectional
|
| Element Type |
Electret Condenser
|
| Sound Field |
Mono
|
| Diaphragm |
0.5" / 13.2 mm
|
| Orientation |
End Address
|
| Controls |
None
|
| Frequency Response |
20 Hz to 20 kHz
|
| Maximum SPL |
119 dB
|
| Sensitivity |
-17.19 dBFS
|
| Dynamic Range |
119 dB
|
| Equivalent Noise Level |
23 dB (A-Weighted)
|
| Analog Output |
No
|
| USB/Digital Output |
1x USB-C
|
| USB Class-Compliant |
Yes
|
| Wireless |
No
|
| Digital Signal Processing & FX |
No
|
| Mobile App Compatible |
Yes: iOS Only
|
| Power Sources |
Plug-In Power
|
| Operating Voltage |
0 V
|
| Color |
Silver
|
| Mounting Thread Size |
No Mount Included
|
| Dimensions |
?: 0.5 x L: 1.8" / ?: 13.2 x L: 46 mm
|
| Weight |
0.5 oz / 13.9 g
|
