Description
Microtech Gefell 201258 Overview

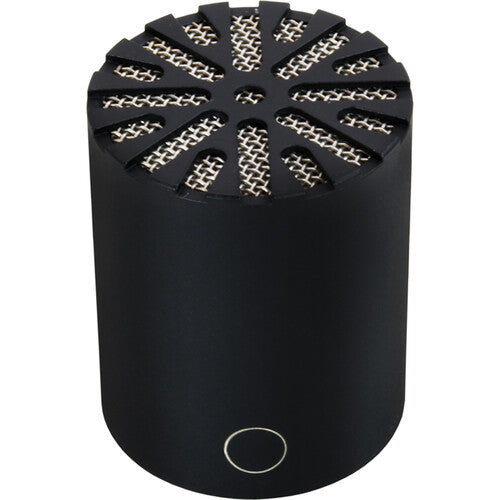

Part of Microtech Gefell's Generation 4 modular microphone system, the M 42 is a small-diaphragm omnidirectional condenser mic capsule made for use with MV 400 preamplifiers. Its design is refined and compact, with the lightweight polyethylene membrane providing articulation across its 20 Hz to 20 kHz frequency response while handling high SPLs up to 145 dB and producing only 13 dBA of self-noise. The M 42's omnidirectional pattern is designed to pick up sound from all directions relative to the microphone location.
Items Included
- Microtech Gefell M 42 Omni Condenser Microphone Capsule for Generation 4 Series
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Microtech Gefell 201258 Specs
General
| Compatibility |
Microtech Gefell Generation 4
|
| Polar Pattern |
Omnidirectional
|
| Frequency Range |
20 Hz to 20 kHz
|
| Sensitivity |
15 mV/Pa at 1 kHz
|
| Output Impedance |
100 Ohms
|
| Noise |
IEC 268-4: 13 dBA
CCIR 468-4: 25 dB |
| Signal to Noise Ratio |
A-Weighted: 81 dB (re 1 Pa at 1 kHz)
CCIR-Weighted: 69 dB (re 1 Pa at 1 kHz) |
| Maximum SPL |
145 dB at 0.5% THD
|
| Maximum Output Level |
18 dBu (RL: 10 Kilohms)
17 dBu at 0.5% THD (RL: 1 Kilohm) |
| Dynamic Range |
132 dB
|
| Current Consumption |
4 mA (P48, IEC 61938)
|
Physical
| Color |
Black
|
| Dimensions |
1 x 0.8" / 26 x 21 mm
|
| Weight |
1 oz / 29 g
|
