Description
Microtech Gefell 201256 Overview

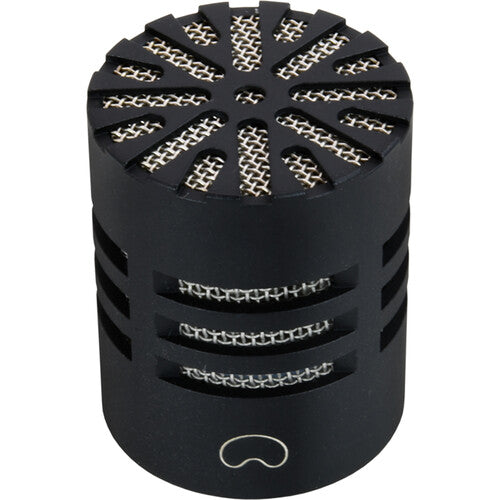

Part of Microtech Gefell's Generation 4 modular microphone system, the M 40 is a small-diaphragm cardioid condenser mic capsule made for use with MV 400 preamplifiers. Its design is refined and compact, with the lightweight polyethylene membrane providing articulation across its 20 Hz to 20 kHz frequency response while handling high SPLs up to 146 dB and producing only 14 dBA of self-noise. The M 40's cardioid polar response picks up sound mostly from the front in a heart-shaped pattern, reducing unwanted noise from behind the mic.
Items Included
- Microtech Gefell M 40 Cardioid Condenser Microphone Capsule for Generation 4 Series
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Microtech Gefell 201256 Specs
General
| Compatibility |
Microtech Gefell Generation 4
|
| Polar Pattern |
Cardioid
|
| Frequency Range |
20 Hz to 20 kHz
|
| Sensitivity |
13 mV/Pa at 1 kHz
|
| Output Impedance |
100 Ohms
|
| Noise |
IEC 268-4: 14 dBA
CCIR 468-4: 25 dB |
| Signal to Noise Ratio |
A-Weighted: 80 dB (re 1 Pa at 1 kHz)
CCIR-Weighted: 69 dB (re 1 Pa at 1 kHz) |
| Maximum SPL |
146 dB at 0.5% THD
|
| Maximum Output Level |
18 dBu (RL: 10 Kilohms)
17 dBu at 0.5% THD (RL: 1 Kilohm) |
| Dynamic Range |
132 dB
|
| Current Consumption |
4 mA (P48, IEC 61938)
|
Physical
| Color |
Black
|
| Dimensions |
1 x 0.8" / 26 x 21 mm
|
| Weight |
0.9 oz / 26 g
|
