Description

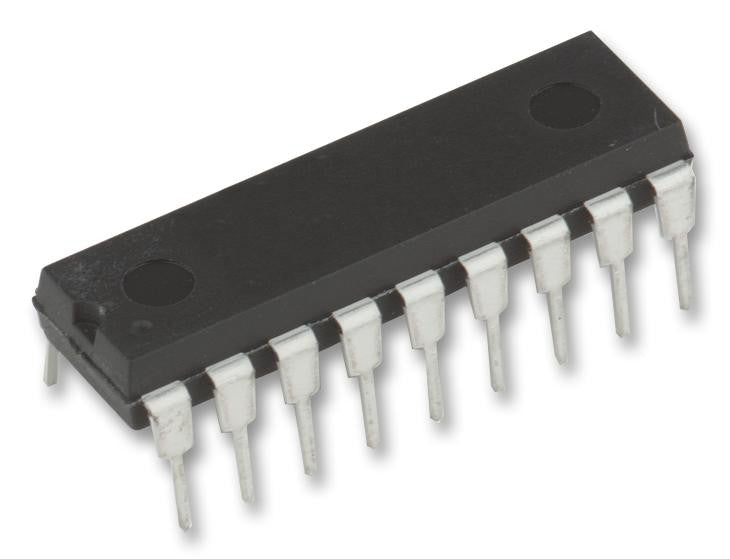

The PIC16F628A-I/P is an 18 pin, flash based, 8 bit microcontroller. This device employs an advanced RISC architecture. The PIC16F628A-I/P has enhanced core features, an eight level deep stack, and multiple internal and external interrupt sources. The separate instruction and data buses of the Harvard architecture allow a 14 bit wide instruction word with the separate 8 bit wide data. The two stage instruction pipeline allows all instructions to execute in a single cycle, except for program branches (which require two cycles). A total of 35 instructions (reduced instruction set) are available, complemented by a large register set.
- Interrupt Capability
- 8 level deep hardware stack
- Direct, indirect, and relative addressing modes
- Internal and external oscillator options
- Power saving sleep mode
- Programmable weak pull-ups on PORTB
- Multiplexed master clear/input pin
- Watchdog timer with independent oscillator for reliable operation
- Low voltage programming
- In circuit serial programming
- Programmable code protection
- Brown-out Reset
- Power-on Reset
- Power-up timer and Oscillator start-up timer
- 1,000,000 write EEPROM endurance
- 40 year data retention
- Dual speed internal oscillator
- Run-time selectable between 4MHz and 48kHz
- 4µs wake-up from Sleep, 3.0V, typ.
- 16 I/O pins with individual direction control
Applications
Clock & Timing, Embedded Design & Development, Imaging, Video & Vision, Industrial, Motor Drive & Control, Multimedia, Portable Devices, Sensing & Instrumentation, Wireless
Product details
| Controller Family/Series | PIC16F6xxx |
| Embedded Interface Type | USART |
| No. of I/O's | 16I/O's |
| Program Memory Size | 3.5KB |
| No. of Pins | 18Pins |
| Product Range | PIC16 Microcontrollers |
| Automotive Qualification Standard | - |
| CPU Speed | 20MHz |
| Supply Voltage Min | 3V |
| MCU Case Style | DIP |
| Packaging | Each |
| Supply Voltage Max | 5.5V |
| RAM Memory Size | 224Byte |
| MSL | - |
Other details
| Brand | MICROCHIP |
| Part Number | PIC16F628A-I/P |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 575.73 |
| 3-5 | ₹ 569.86 |
| 5-10 | ₹ 558.11 |
| 10+ | ₹ 546.36 |
Bulk discount will be automatically applied during checkout based on quantity.
