Description
The PIC16F1823-I/P is an enhanced mid-range PIC16 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program CMOS flash based Microcontroller packs powerful PIC®(RISC) architecture. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 3.5kB of addressable program memory size, 128bytes of data memory size, 12 general-purpose I/O pins, two comparators and 8-channel 10-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 32MHz with wide operating voltage of 1.8 to 5.5V.
- 49 (14-bit wide) easy instructions to learn
- 16 level hardware stack
- 2 (16-bit) file select registers
- Hardware interrupt handling with content save
- Integrated capacitive mTouch sensing module
- Data signal modulator module
- MI2C, SPI, EUSART w/auto baud
- ECCP (Enhanced/Capture compare PWM) module
- Comparators with selectable voltage reference
- Two 8-bit timers (TMR0/TMR2)
- One 16-bit Timer (TMR1)
- Extended watchdog timer (EWDT)
- Enhanced power-On/Off-Reset
- Brown-out reset (BOR)
- In-Circuit Serial Programming� (ICSP�)
- On board in-circuit debug
- 256bytes of EEPROM data memory
Applications
Industrial, Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security
Product details
| Controller Family/Series | PIC16F18xx |
| Embedded Interface Type | I2C, SPI |
| No. of I/O's | 12I/O's |
| Program Memory Size | 3.5KB |
| No. of Pins | 14Pins |
| Product Range | - |
| Automotive Qualification Standard | AEC-Q100 |
| CPU Speed | 32MHz |
| Supply Voltage Min | 1.8V |
| MCU Case Style | DIP |
| Packaging | Each |
| Supply Voltage Max | 5.5V |
| RAM Memory Size | 128Byte |
| MSL | - |
Other details
| Brand | MICROCHIP |
| Part Number | PIC16F1823-I/P |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |

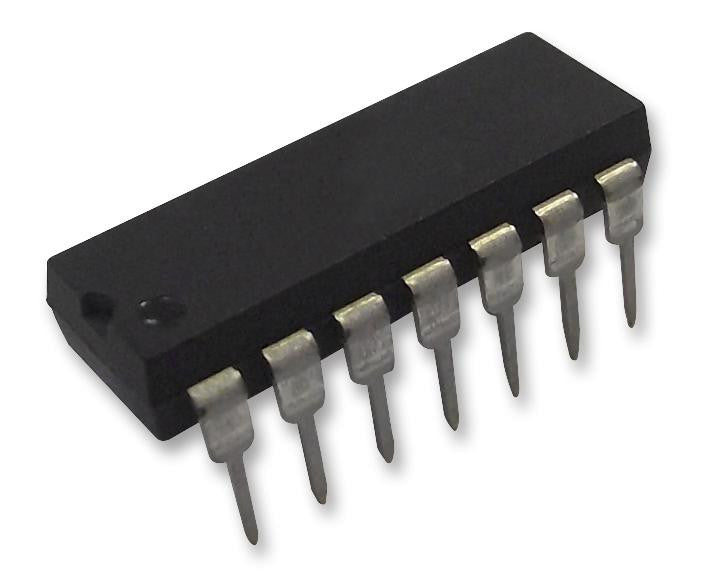

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
