Description
Product Overview

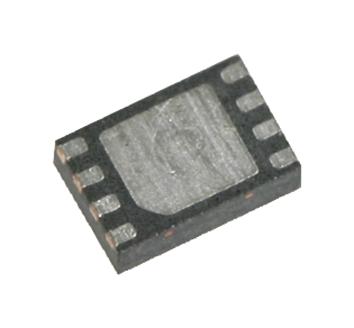

BR25H02ANUX-5ACTR is a 2Kbit serial EEPROM of SPI BUS interface. It is used in applications such as airbag, ABS, ECU.
- SPI bus type, supply voltage range from 1.7V to 5.5V
- 2Kbit capacity, AEC-Q100 qualified, page size is 16byte, bit format is 256 x 8bit
- 16byte write lockable identification page (ID page)
- Address auto increment function at read operation
- Auto erase and auto end function at data rewrite
- Write protect block setting by software memory array 1/4, 1/2, whole
- HOLD function by the HOLDB pin, prevention of write mistake
- Write prohibition at power on, write prohibition by the WPB pin, write prohibition block setting
- Clock frequency is 20MHz maximum, write time is 3.5ms maximum
- Ambient temperature range from -40°C to +125°C, VSON08AX2030 package
Product details
Other details
| Brand | ROHM |
| Part Number | BR25H02ANUX-5ACTR |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
