BR24G512F-5A is a 512Kbit serial EEPROM of I²C BUS interface. It is widely used in application like ordinary electronic equipment such as AV equipment, OA equipment, telecommunication equipment, home electronic appliances, amusement equipment, etc.
- All controls available by 2 ports of serial clock (SCL) and serial data (SDA)
- 1.6V to 5.5V wide limit of operating voltage, possible 1MHz operation
- Low current consumption
- WP (write protect) function added
- Prevention of miswriting at low voltage
- Noise filter built in SCL/SDA pin
- Page write mode 128bytem bit format 64K x 8bit
- Bus type is I²C, 512Kbit capacity
- Operating temperature is -40°C to 85°C

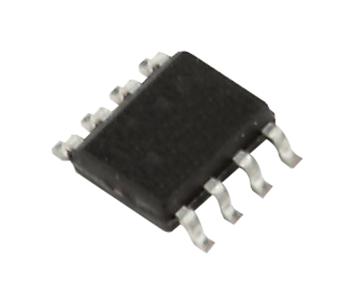

- Package style is SOP8
Product details
| Memory Density:
512Kbit
|
| Memory Configuration:
64K x 8bit
|
| Interfaces:
I2C
|
| Clock Frequency Max:
1MHz
|
| IC Case / Package:
SOP
|
| No. of Pins:
8Pins
|
| Supply Voltage Min:
1.6V
|
| Supply Voltage Max:
5.5V
|
| IC Mounting:
Surface Mount
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
85°C
|
| Product Range:
-
|
Other details
| Brand |
ROHM |
| Part Number |
BR24G512F-5AE2 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
