| ₹ 575.59 includes GST and import duties. | |
| B2B customers can avail ₹ 87.78 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

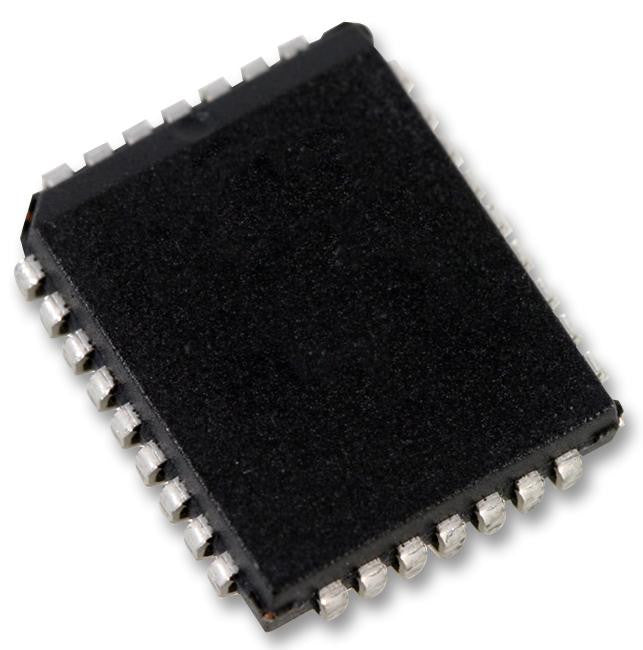

The AT27C010-45JU is a low-power, high-performance 1048576-bit, 1-time Erasable Programmable Read-Only Memory (OTP EPROM) organized as 128K by 8 bits. The device requires only one 5V power supply in normal read mode operation. Any byte can be accessed in less than 45ns, eliminating the need for speed reducing WAIT states on high performance microprocessor systems. In read mode, it typically consumes only 8mA. Standby mode supply current is typically less than 10µA. The rapid programming algorithm reduces the time required to program the part and guarantees reliable programming. Programming time is typically only 100µs/byte. The integrated product identification code electronically identifies the device and manufacturer. This feature is used by industry standard programming equipment to select the proper programming algorithms and voltages.
- To ensure high quality and efficient production use
- Low-power CMOS operation
- 5V ±10% Supply
- High-reliability CMOS technology
- 2000V ESD protection
- 200mA Latchup immunity
- CMOS and TTL-compatible inputs and outputs
- Integrated product identification code
- Industrial temperature range
Applications
Computers & Computer Peripherals
Warnings
ESD sensitive device, take proper precaution while handling the device.
Product details
| EPROM Memory Configuration | 128K x 8bit |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Access Time | 45ns |
| No. of Pins | 32Pins |
| Memory Size | 1Mbit |
| Product Range | - |
| Memory Case Style | LCC |
| Supply Voltage Min | 4.5V |
| Packaging | Each |
| Supply Voltage Max | 5.5V |
| MSL | MSL 2 - 1 year |
Other details
| Brand | MICROCHIP |
| Part Number | AT27C010-45JU |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 564.08 |
| 3-5 | ₹ 558.32 |
| 5-10 | ₹ 546.81 |
| 10+ | ₹ 535.3 |
Bulk discount will be automatically applied during checkout based on quantity.
