Description
Product Overview

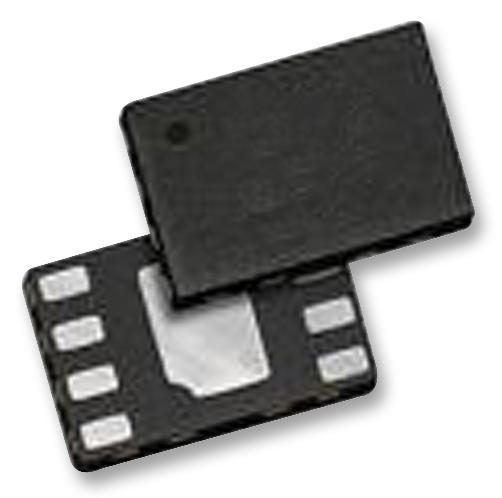

AT24C32D-MAHM-T is a 32-Kbit I²C serial EEPROM. It provides 32,768 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 4,096 words of 8 bits each. The device�s cascading feature allows up to eight devices to share a common two?wire bus. The device is optimized for use in many industrial and commercial applications where low?power and low?voltage operation are essential.
- Operating voltage range from 1.7V to 5.5V, internally organized as 4,096 x 8 (32K)
- Schmitt triggers, filtered inputs for noise suppression
- Bidirectional data transfer protocol, write-protect pin for full array hardware data protection
- Ultra low active current (3mA maximum) and standby current (6?A maximum)
- Random and sequential read modes, self-timed write cycle within 5ms maximum
- 1,000,000 write cycles endurance, 100 years data retention
- 400KHz maximum SCL clock frequency at (Vcc = 1.7 to 5.5V)
- 300ns maximum inputs rise time at (Vcc = 1.7 to 5.5V)
- 100ns maximum noise suppression time at (Vcc = 1.7 to 5.5V)
- Operating temperature range from -40°C to +85°C, 8-pad UDFN package
Product details
Other details
| Brand | MICROCHIP |
| Part Number | AT24C32D-MAHM-T |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
