Description

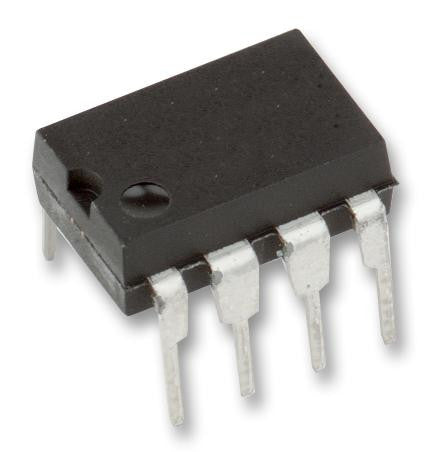

The 93LC46B/P is a 1kB MICROWIRE compatible serial Electrically Erasable Programmable Read-Only Memory (EEPROM) with word-selectable devices such as the 93AA46C, 93LC46C or 93C46C are dependent upon external logic levels driving the ORG pin to set word size. The 93C46B device provides dedicated 16-bit communication. Advanced CMOS technology makes this device ideal for low-power, nonvolatile memory applications.
- Low-power CMOS technology
- Self-timed erase/write cycles
- Automatic erase all (ERAL) before write all (WRAL)
- Power ON/OFF data protection circuitry
- Industry standard 3-wire serial I/O
- Device status signal
- Sequential read function
- 1000000 Erase/write cycles
- Data retention >200 years
Applications
Computers & Computer Peripherals, Industrial, Communications & Networking, Consumer Electronics, Automotive
Product details
| Operating Temperature Min | 0°C |
| Operating Temperature Max | 70°C |
| Clock Frequency | 3MHz |
| No. of Pins | 8Pins |
| Memory Size | 1Kbit |
| Product Range | 1Kbit Serial Microwire EEPROMs |
| Memory Case Style | DIP |
| Supply Voltage Min | 2.5V |
| IC Interface Type | Serial Microwire |
| EEPROM Memory Configuration | 64 x 16bit |
| Packaging | Each |
| Supply Voltage Max | 5.5V |
| MSL | - |
Other details
| Brand | MICROCHIP |
| Part Number | 93LC46B/P |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Miscellaneous EN | |
| Product Change Notice EN | |
