Description

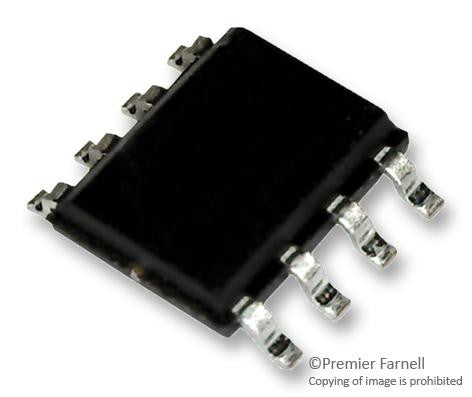

The 24LC64-I/SN is a 64Kbit serial I2C EEPROM (Electrically Erasable Programmable Memory) in 8 pin SOIC package. The device is organized as a single block of 8K x 8bit memory with a two wire serial interface. Low voltage design permits operation down to 1.7V with standby and active currents of only 1µA and 3mA respectively. It has been developed for advanced low power applications such as personal communications or data acquisition. The 24LC64 has a page write capability for up to 32Bytes of data. Functional address lines allow up to eight devices on the same bus for up to 512Kbits address space. It features more than 1 million erase/write cycles and data retention is greater than 200 years.
- Maximum clock frequency is 400KHz
- Supply voltage range from 2.5V to 5.5V
- Low power CMOS technology
- Packages with 3 address pins are cascaded to 8 devices
- Schmitt trigger inputs for noise suppression
- Output slope control to eliminate ground bounce
- Page write time is 5ms maximum
- Self timed erase/write cycle
- Hardware write protect
- Operating temperature range -40°C to 85°C
Applications
Embedded Design & Development, Consumer Electronics, Portable Devices, Communications & Networking, Automotive
Product details
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Clock Frequency | 400kHz |
| No. of Pins | 8Pins |
| Memory Size | 64Kbit |
| Product Range | 64Kbit Serial I2C EEPROMs |
| Memory Case Style | SOIC |
| Supply Voltage Min | 2.5V |
| IC Interface Type | I2C |
| EEPROM Memory Configuration | 8K x 8bit |
| Packaging | Each |
| Supply Voltage Max | 5.5V |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MICROCHIP |
| Part Number | 24LC64-I/SN |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Miscellaneous EN | |
| Product Change Notice EN | |
