Description
Product Overview

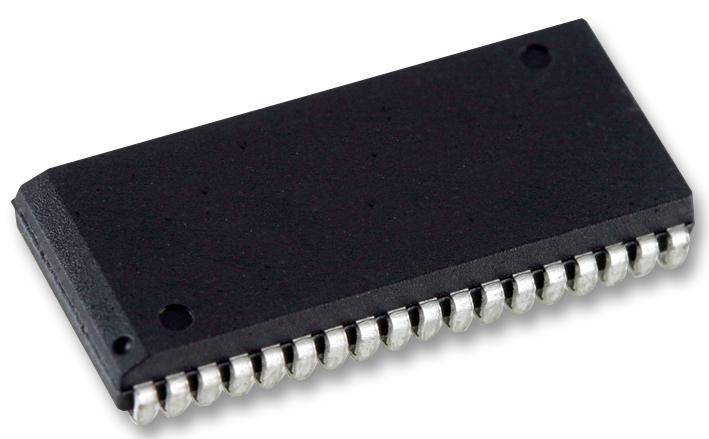

CY7C1049GN-10VXIT is a CY7C1049GN high-performance CMOS fast static RAM device organized as 512K words by 8-bits. Data writes are performed by asserting the chip enable active-low (CE) and write enable (WE) inputs LOW, while providing the data on I/O0 through I/O7 and address on A0 through A18 pins. Data reads are performed by asserting the chip enable active-low (CE) and output enable (OE) inputs LOW and providing the required address on the address lines. Read data is accessible on the I/O lines (I/O0 through I/O7).
- High speed is tAA = 10ns
- Low active and standby currents
- Active current: ICC = 38mA typical
- 1.0V data retention
- TTL-compatible inputs and outputs
- 4.5V to 5.5V voltage range
- 36-pin moulded SOJ package
- Industrial temperature range from �40°C to +85°C
- 65nm process technology
Product details
Other details
| Brand | INFINEON |
| Part Number | CY7C1049GN-10VXIT |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
