Description
Product Overview

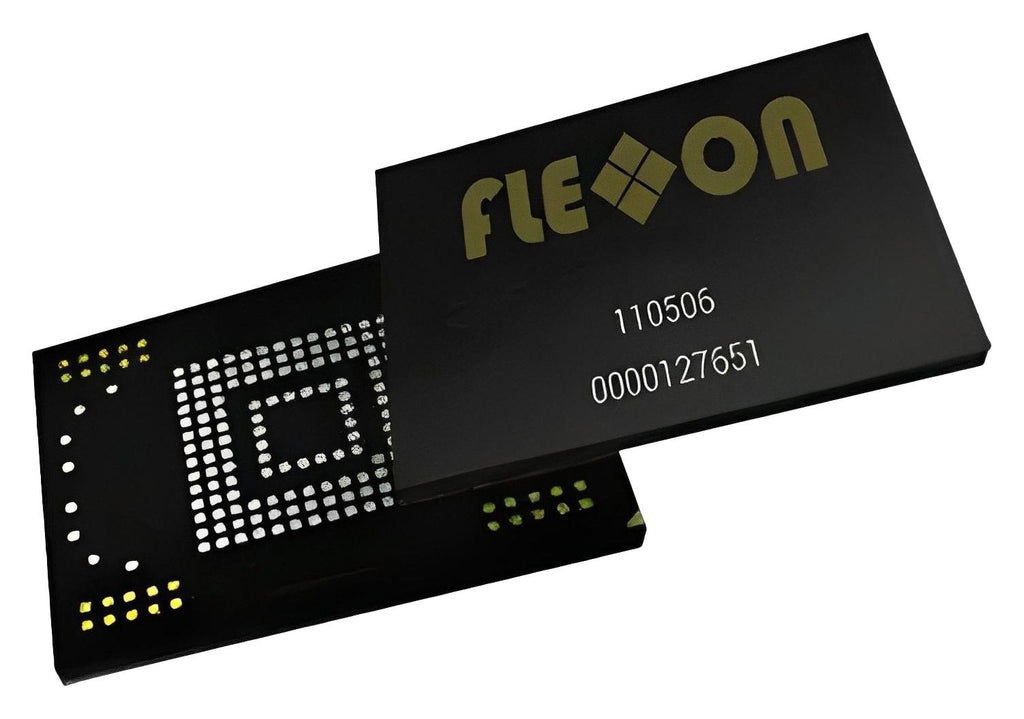

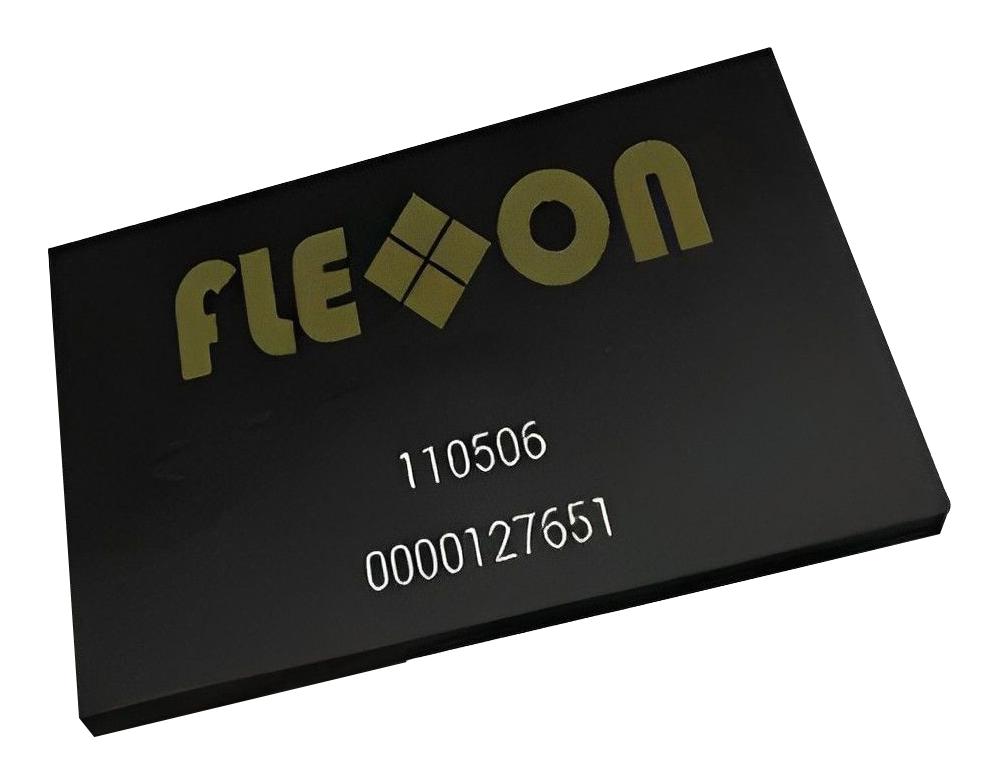

FEMC004GTTE7-T13-18 is a XTRA III series industrial eMMC 4.5 flash memory. It is fully compliant with the JEDEC eMMC4.5 standard. It is a combination of an embedded flash controller and standard MLC NAND flash memory in one JEDEC standard package. It provides high performance, good reliability and advanced power management. It is suitable for small, low-power electronic devices.
- 4GB capacity, VCCQ: 1.8V/3.3V, VCC: 3.3V power system
- Compliant with eMMC specification Ver. 4.4, 4.41, 4.5
- Up to 52MHz clock speed, support HS200 mode
- Supply voltage (NAND) range from 2.7 to 3.6V
- Output high voltage is VDD - 0.2V min (IOH = -100uA, open-drain bus signal level)
- Output low voltage is 0.3V max (IOL = 2mA, open-drain bus signal level)
- Clock frequency data transfer mode (PP) is 26MHz max (CL ? 30pF)
- Clock rise time is 3ns max (CL ?30pF), clock fall time is 3ns max (CL ?30pF)
- Output delay time during data transfer is 13.7ns max (CL ?30 pF)
- 100-ball FBGA package, operation temperature range from -40°C to 85°C
Product details
Other details
| Brand | FLEXXON |
| Part Number | FEMC004GTTE7-T13-18 |
| Quantity | Each |
| Technical Data Sheet EN |  |
