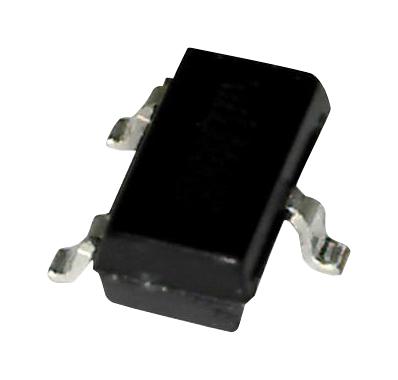

ANALOG DEVICES DS28E05R+T EEPROM, 896 bit, 7Pages x 16Bytes, 1-Wire, SOT-23, 3 Pins

DS28E05R+T is a 112-byte user-programmable EEPROM organized into 7 pages of 16 bytes each. Memory pages can be individually set to write protected or EPROM emulation mode through protection byte settings. It has its own guaranteed unique 64-bit ROM identification number (ROM ID) that is factory-programmed into the chip. The DS28E05 communicates over Analog Device's single contact 1-Wire® interface at overdrive speed with the ROM ID acting as node address in the case of a multiple-device 1-wire network. Typical applications include accessory/PCB identification, medical sensor calibration data storage, analogue sensor calibration, and aftermarket management of consumables.

• Single-contact 1-wire interface
• 112bytes user EEPROM with 1K write cycles
• Programmable write protection and OTP EPROM emulation modes for user memory
• Unique factory-programmed 64-bit ROM ID number
• ±8kV HBM ESD protection (typ) on IO pin
• 1-wire pullup voltage range from 1.71 to 3.63V at TA=-40°C to +85°C
• EEPROM programming current is 400µA max at TA=-40°C to +85°C
• EEPROM write/erase cycling endurance is 1000 at TA=+85°C
• 3 SOT23 package
• Operating temperature range from -40°C to +85°C
