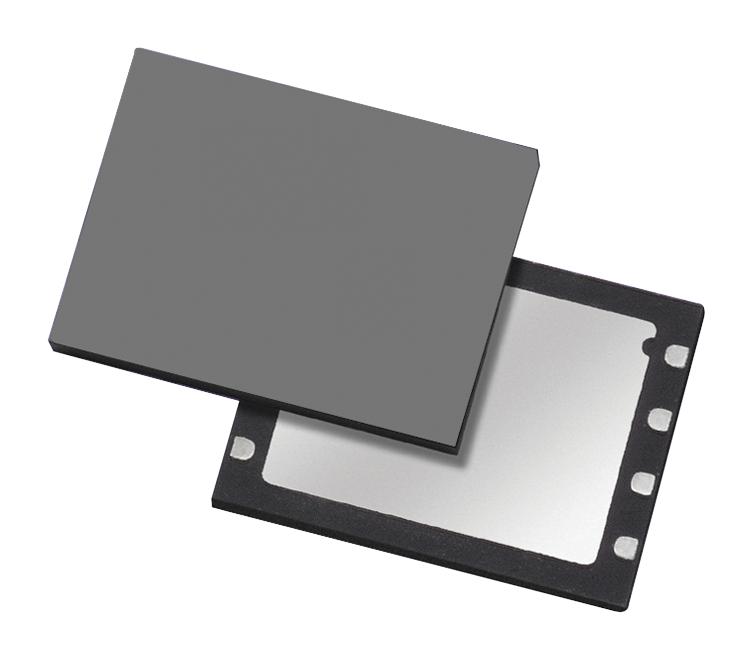

ALLIANCE MEMORY AS25F1128MQ-70WIN Flash Memory, Serial NOR, 128 MB, 16M x 8bit, QPI, SPI, WSON, 8 Pins

AS25F1128MQ-70WIN is a serial flash memory. It supports the standard serial peripheral interface (SPI), and quad peripheral interface (QPI): serial clock, chip select, serial data I/O0(DI), I/O1(DO), I/O2(/WP), and I/O3(/HOLD). SPI clock frequencies of upto 133MHz are supported allowing equivalent clock rates of 266MHz for dual output and 532MHz for quad output when using the QPI and fast read dual/quad I/O instructions. The AS25F1128MQ array is organized into 65,536 programmable pages of 256-bytes each. Upto 256 bytes can be programmed at a time using the page program instructions. Pages can be erased sector, 32KB block, 64KB block or the entire chip. This devices operate on a single 1.65V to 1.95V power supply with current consumption as low as 5mA active and 3?A for Deep Power-down. This device supports JEDEC standard manufacturer and device identification with a 4K-bit secured OTP.

• 1.8V voltage, 128Mb density, 133MHz speed
• Active read current is 27mA maximum, 100K program/ erase cycles
• Power down current is 20?A maximum, 5mA active current
• Standby current is 70?A maximum, 3?A typical deep power-down
• 256-bytes per programmable page, 4K-bit secured OTP
• 65MB/S continuous data transfer rate, 40MB/S random access (32byte fetch)
• Uniform sector erase (4K-byte), block erase (32K and 64K-bytes), erase/program suspend and resume
• Input capacitance is 6pF maximum, input leakage current is ±2µA maximum
• Input rise and fall times is 5ns maximum, standby current is 10µA typical
• Operating temperature range from -40°C to +85°C, 8-lead WSON package
