Description

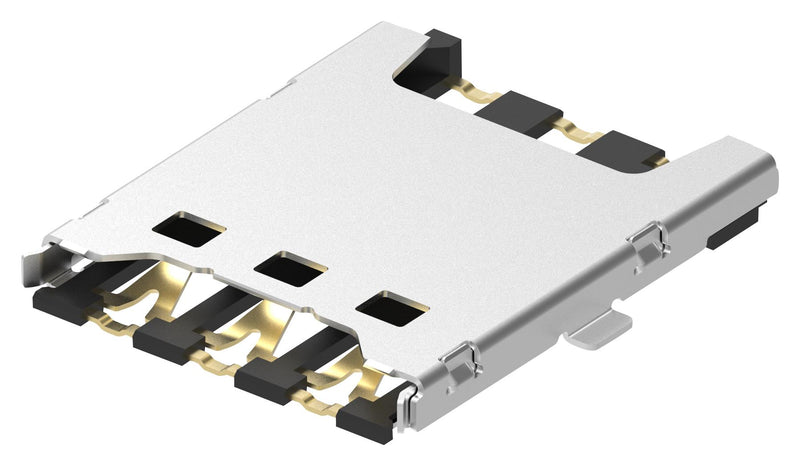

The SIM8055-6-1-14-00-A is a Nano SIM connector with innovative card detection switch. It features a normally open card detect (CD) C7 mechanism shares the space with contact 5 (C5). The circuit is closed once a nano SIM card is inserted. It comes with a locating peg as standard for PCB stability, and is packaged in a tape and reel format, enabling easy pick and place assembly. It offers one of the smallest footprints available on the market with card detect functionality (12.2mm length and 9.54mm width).
- Surface mount
- 1.35mm profile
- Polarised card stop
- Metallic Shell: Stainless Steel SUS301
- Voltage Rating: 30V Max
- Current Rating: 0.5A Max
- Durability: 5,000 cycles
Computer Hardware, Computers & Computer Peripherals, Smartphones, Telecommunications
Other details
| Brand | GCT (GLOBAL CONNECTOR TECHNOLOGY) |
| Part Number | SIM8055-6-1-14-00-A |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
| Drawing EN | |
| CAD Multiple Formats EN | |
