Description
Cambo Actus-G Overview

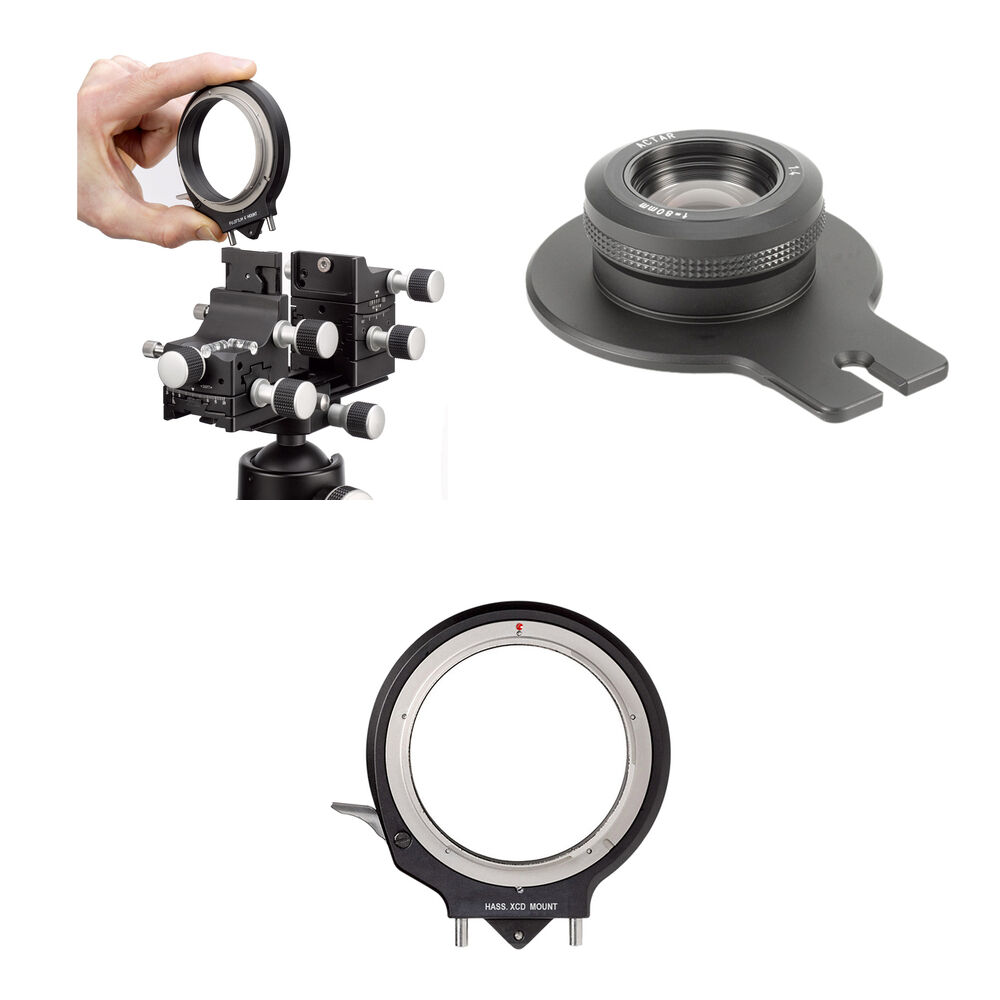

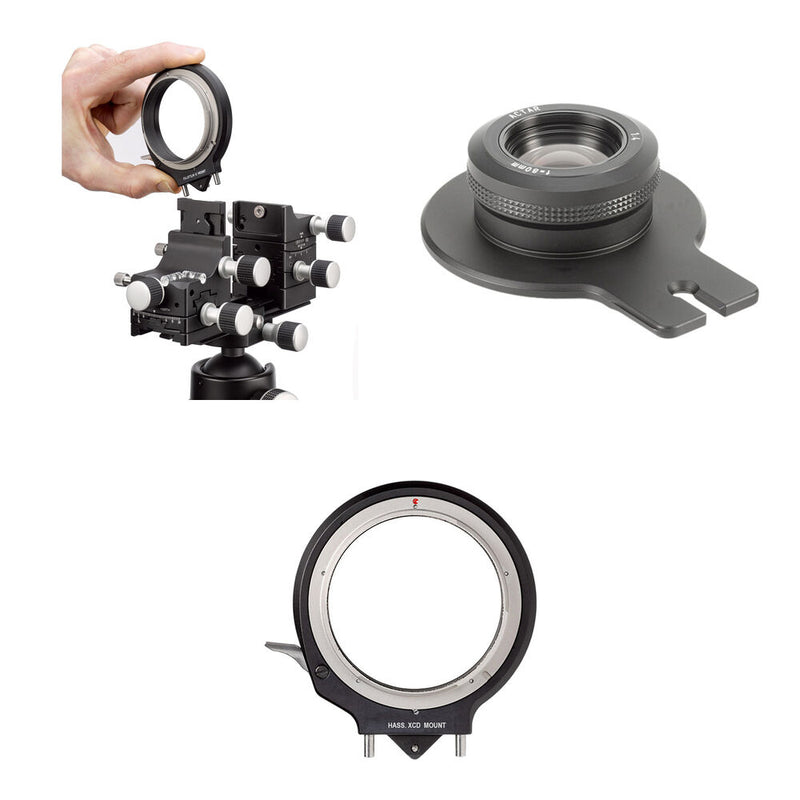

A start-up bundle for view camera mirrorless capture, the ACTUS-G View Camera with 80mm f/4 Lens and Bayonet Kit from combines the view camera body with the ACTAR-80 80mm f/4 lens and the AC-793 Bayonet Holder for Hasselblad X-mount medium format cameras.
Offering extensive perspective and focus control along with the convenience of working with your digital camera, the black ACTUS-G View Camera Body from Cambo effectively transforms your digital camera or back into a digital view camera. As the core component within a modular system, this view camera body serves as the primary piece from which you can pair a digital camera body with a variety of lenses to reap the benefits of geared camera movements for correcting perspective distortions, achieving an extended depth of field, or producing creative selective focus effects. While resembling traditional large format view cameras in function, the ACTUS system also echoes the compact form factor of the digital cameras it is designed to be paired with and is optimized for use in both the studio as well as on location.
This view camera body is delivered with a 6.1" monorail as well as a 4.9" bellows to permit working with a variety of lens and camera types. The monorail is designed to fit within the Arca-Swiss style quick release system for easy mounting to a tripod, and is also fitted with both 3/8"-16 and 1/4"-20 mounts for attaching quick release plates. Optional lensplates can be added depending on your desired lens type, and the monorail and bellows is also interchangeable with optional wide-angle and longer versions of each.
- Rear Rise/Fall: +0.5", -0.6" / +12mm, -15mm
- Rear Shift: +/- 0.8" / 20mm
- Front Swing: 360°
- Front Tilt: +10°, -9°
The swing and tilt movements of the front standard rotate about the optical axis in order to avoid having to re-compose or re-focus after each movement is applied.

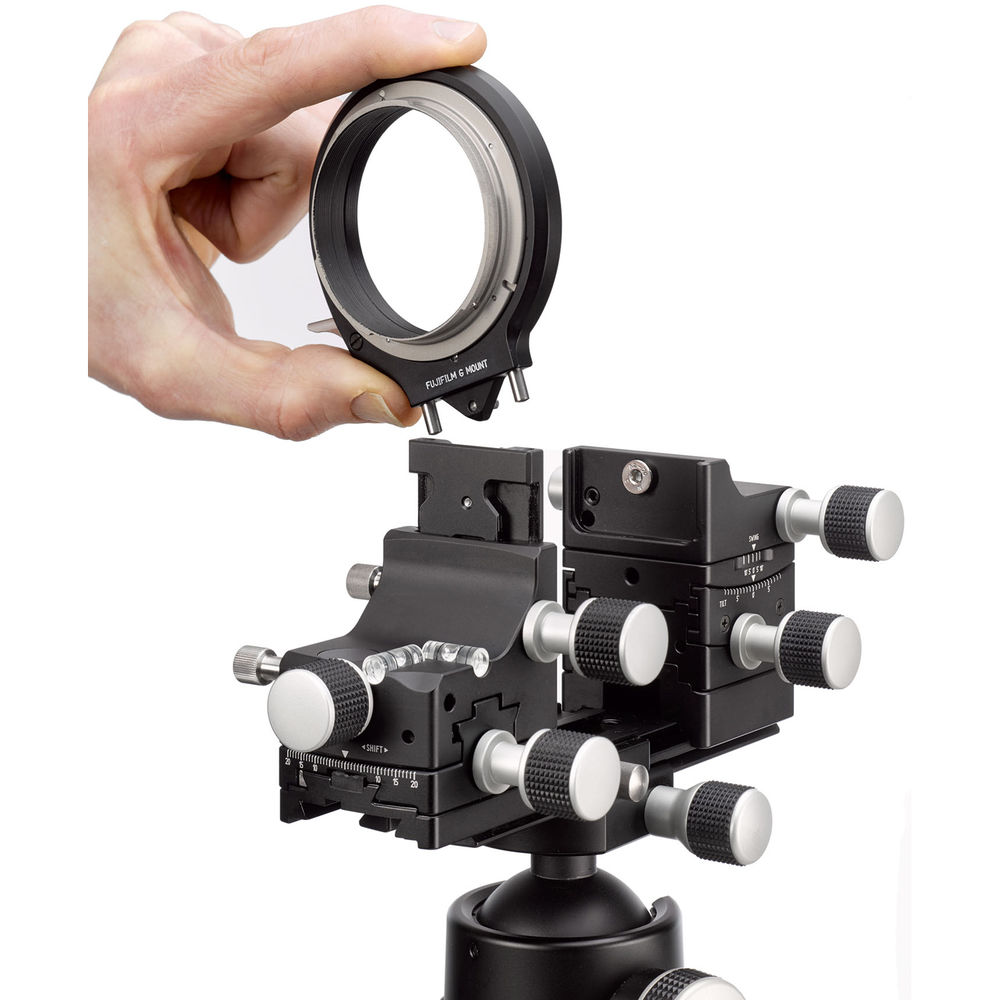

- Requires additional AC-792 or AC-793 Bayonet Holder, for use with Fujifilm GFX or Hasselblad X1D camera systems; AC-78E Bayonet Holder and dedicated camera mount bayonet, for use with Canon EF, Canon EF-M, Nikon F, Leica M, Sony E, Pentax K, Micro Four Thirds, Olympus OM-D, or Fujifilm X camera systems; or ACDB-989 SLW Interface Adapter Plate Holder and ACDB-series bellows, for use with select digital backs.
- Revised rear standard features geared horizontal shift and is compatible with removable bayonet holders.
- Both fine geared and quick-slide focusing adjustment types are available.
- Bellows and monorail focusing allows you to achieve closer focusing distances without the use of extension tubes or other macro attachments.
- Zero-position clicks are incorporated into each movement type for more intuitive handling.
- Monorail is compatible with the Arca-Swiss-style quick release system and also features both 3/8"-16 and 1/4"-20 mounts.
- Front tilts and swings allow you to alter the plane of focus for employing selective focus techniques or Scheimpflug settings for extensive depth of field. Additionally, these tilt and swing movements are used to correct for convergence and other perspective distortions.
- Rear horizontal and vertical shifts allow you to move the camera position while retaining the same lens position, making this configuration especially ideal for stitching multiple exposures without having to adjust the lens.
- This black finish body is anodized for greater durability and scratch resistance.
- Compact overall form factor is relative to the size of DSLR and mirrorless cameras.

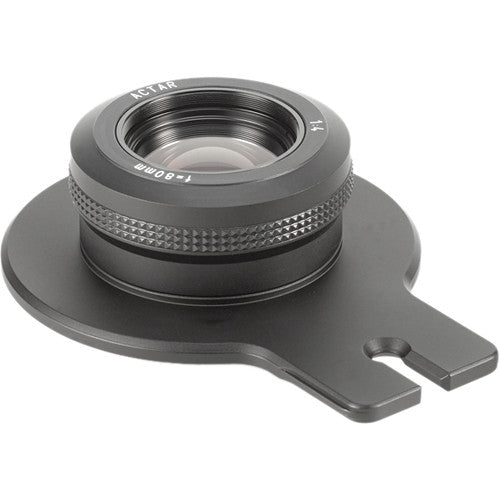

Dedicated to the Cambo ACTUS-B-series of view cameras, the ACTAR-80 is a 80mm f/4.0 lens that provides a 85mm image circle to facilitate both shift and rise/fall movements with sensor sizes up to 24 x 36mm. This wide-angle lens is permanently mounted in an ACTUS lensplate for seamless use with the view camera system and features a manual aperture ring for adjustment from f/4.0 to f/22. A 7 element in 5 groups optical design is employed to produce clean, sharp imagery with low distortion, making it well-suited to architectural and landscape applications, as well as product photography. Each of the elements is also multi-coated to suppress surface reflections and flare for improved contrast and color fidelity when working in bright lighting conditions.

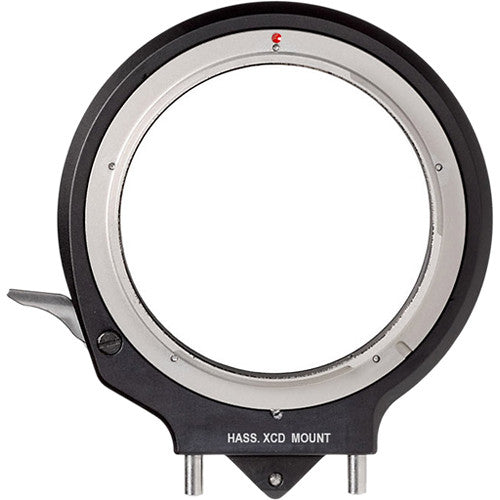

Dedicated to Cambo ACTUS-G view cameras, this AC-793 Bayonet Holder allows you to attach a Hasselblad X-mount camera to the rear standard of the view camera body. The bayonet can rotate 90° within the holder to facilitate switching between horizontal and vertical shooting orientations and it features a black anodized finish to prevent scratching. This bayonet holder is available here as a spare or replacement part for the one originally included with the ACTUS-XCD view camera, and can also be used with other ACTUS-G-series cameras to enable working with Hasselblad X-system cameras.
Items Included
- Cambo ACTUS-G View Camera Body (Black)
- Cambo AC-210 Standard Bellows for ACTUS
- Cambo AC-315 Standard Monorail for ACTUS Cameras (6.1")
-
Limited 1-Year Manufacturer Warranty
Registration Extension: 2-Year (US Only) - Cambo ACTAR-80 80mm f/4.0 Lens for ACTUS-B
- Limited 1-Year Manufacturer Warranty
- Cambo AC-793 Bayonet Holder for Hasselblad X
-
Limited 1-Year Manufacturer Warranty
Registration Extension: 2-Year (US Only)
Additional Resources
Cambo ACTUS-G View Camera Body (Black)
| Camera Type |
View camera body for DSLR, mirrorless, or digital back capture
|
| Lens Mount |
Compatible with optional ACTUS-B lensplates
|
| Camera Mount |
Compatible with optional AC-792 Bayonet Holder for Fujifilm GFX, AC-793 Bayonet Holder for Hasselblad X1D, or additional ACTUS camera bayonet mounts via optional AC-78E Bayonet Holder
Compatible with optional ACDB-989 SLW Interface Adapter Plate Holder for digital back use |
| Monorail Length |
6.1" / 155 mm (standard AC-315 monorail)
|
| Bellows Extension |
4.9" / 125 mm (standard AC-210 bellows)
|
| Focusing System |
Quick slide adjustment, geared fine-focus adjustment
|
| Mounting |
Monorail is Arca-Swiss-compatible
1/4" and 3/8" mounts also integrated into monorail |
| Dimensions |
6.0 x 4.5 x 6.7" / 152 x 115 x 171 mm
|
| Weight |
2.5 lb / 1150 g
|
| Package Weight |
3.505 lb
|
| Box Dimensions (LxWxH) |
10.2 x 7.9 x 6.4"
|
