Description
- View Camera for Digital Back Capture
- Monorail: 6.9", Bellows Extension: 5.9"
- Requires Optional Back Interface Plates
- Supports Copal, Alpa, and WRS Lensplates
- Front Tilt & Swing, Rear Shift Movements
- Geared Control for All Movements
- Quick-Slide and Geared Focus Movement
- Zero-Position Clicks on All Movements
- Arca-Style Rail has 3/8" and 1/4" Mounts
- Engraved Infinity Marks for LF Lenses

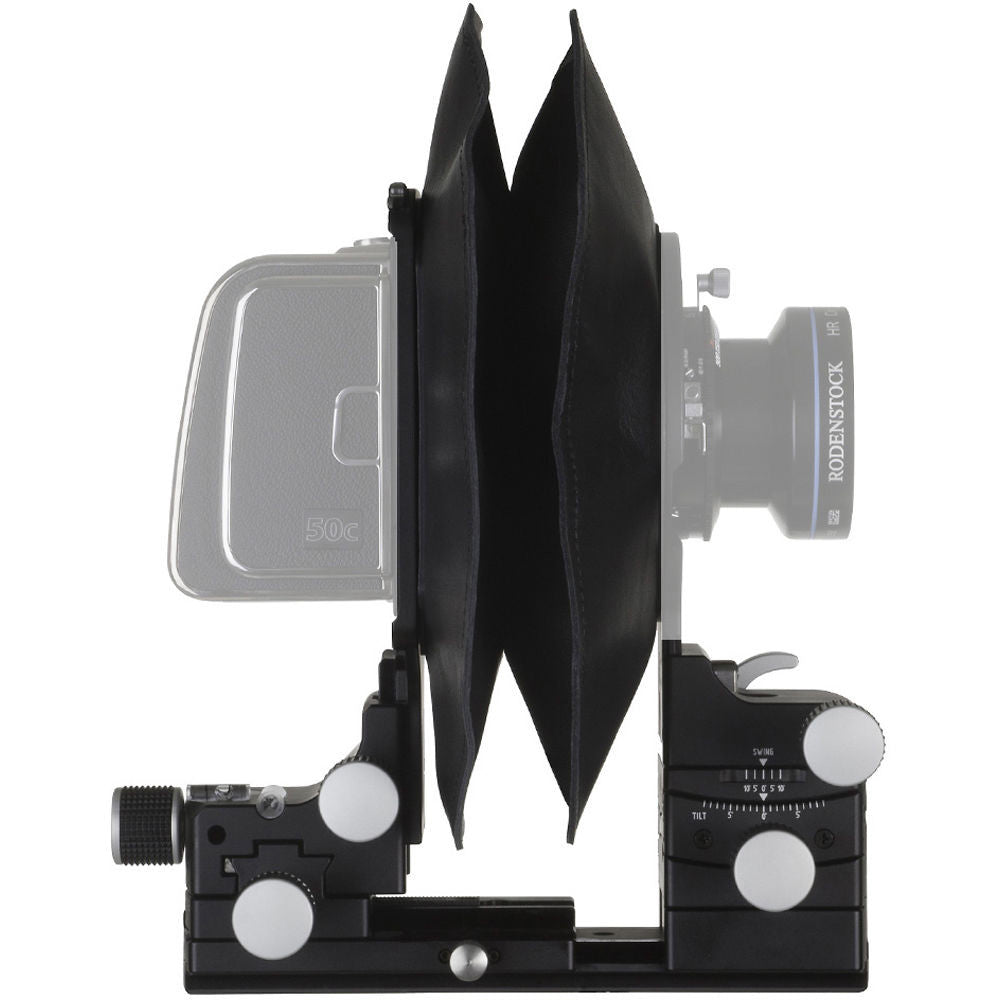

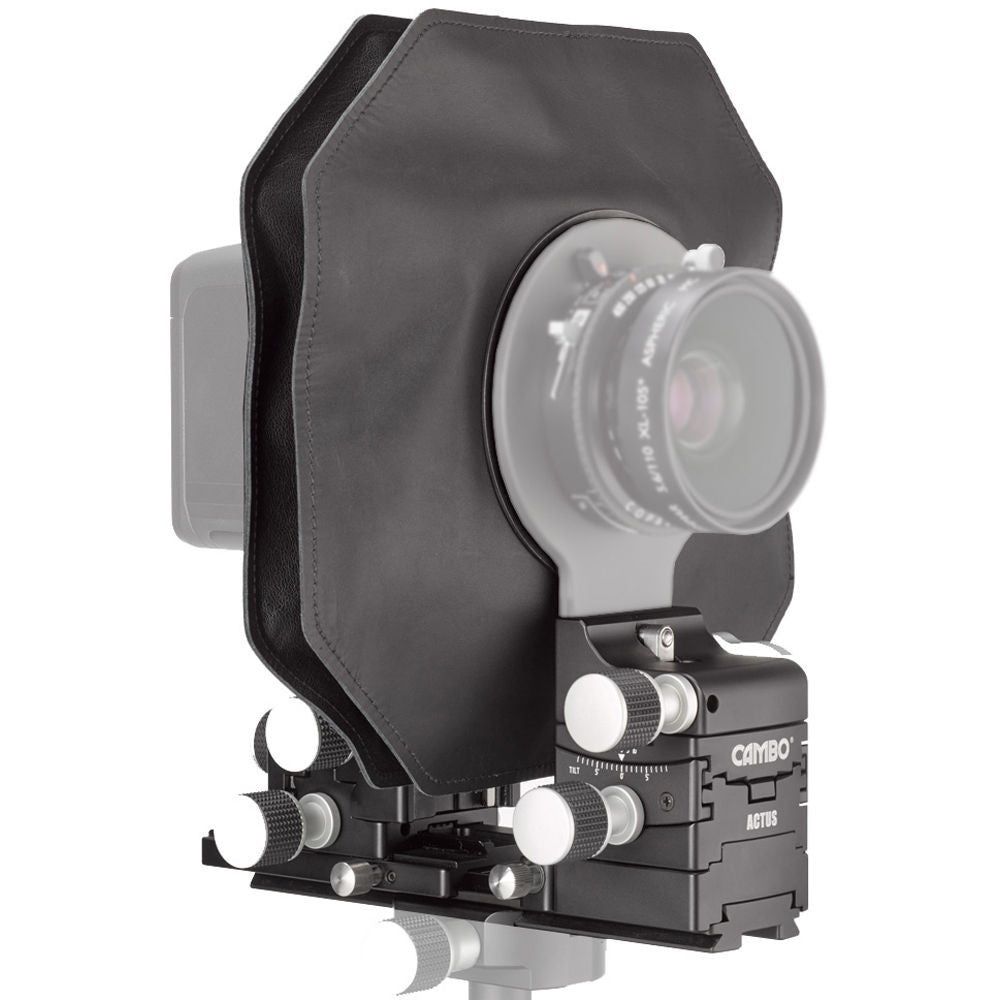

Offering extensive perspective and focus control with medium format digital backs, the ACTUS-DB2 View Camera Body from Cambo effectively transforms your digital back into a digital view camera. As the core component within a modular system, this view camera body serves as the primary piece from which you can pair a variety of digital back types and large format lenses to reap the benefits of geared camera movements for correcting perspective distortions, achieving an extended depth of field, or producing creative selective focus effects. While resembling traditional large format view cameras in function, the ACTUS system also echoes the compact, contemporary form factor of the digital backs it is designed to be paired with and is optimized for use in both the studio as well as on location.
This view camera body is delivered with a 6.9" monorail as well as a 5.9" bellows to permit working with a variety of focal lengths. The monorail is designed to fit within the Arca-Swiss style quick release system for easy mounting to a tripod, and is also fitted with both 3/8"-16 and 1/4"-20 mounts for attaching quick release plates. Optional lensplates and interface plates can be added depending on your desired lens and back combination, and the monorail and bellows are also interchangeable with optional wide-angle and longer versions of each.
- Camera Movements
- A full system of movements offers extensive control over perspective and focusing settings. Geared on-axis tilt and swing movements are performed on the front standard and the rear standard permits geared rise/fall and lateral shift movements:
- Rear Rise/Fall: +0.5", -0.6" / +12mm, -15mm
- Rear Shift: � 0.8" / 20mm
- Front Swing: 360�
- Front Tilt: +10�, -9�
- Camera Features
-
- Both fine geared and quick-slide focusing adjustment types are available.
- Bellows and monorail focusing allows you to achieve closer focusing distances without the use of extension tubes or other macro attachments.
- Zero-position clicks are incorporated into each movement type for more intuitive handling.
- Infinity marks are engraved into the monorail for quick focus setting of various Schneider and Rodenstock lenses.
- Monorail is compatible with the Arca-Swiss-style quick release system and also features both 3/8"-16 and 1/4"-20 mounts.
- Front tilts and swings allow you to alter the plane of focus for employing selective focus techniques or Scheimpflug settings for extensive depth of field. Additionally, these tilt and swing movements are used to correct for convergence and other perspective distortions.
- Rear horizontal and vertical shifts allow you to move the back's position while retaining the same lens position, making this configuration especially ideal for stitching multiple exposures without having to adjust the lens.
- The optional digital back interface plates allow you to rotate between horizontal and vertical shooting orientations without having to adjust the actual orientation of the view camera body.
- This black finish body is anodized for greater durability and scratch resistance.
- Compact overall form factor is relative to the size of medium format digital backs.
- ACTUS-DB System
- As the central component within the modular ACTUS-DB system, the DB2 view camera body serves as the means to which you can attach a variety of optional interface plates and lensplates:
Lensplates:
- Copal #0
- Copal #1
- Alpa
- Cambo WRS
- SLW-80 for Hasselblad V
- SLW-89 for Hasselblad H
- SLW-87 for Contax 645
- SLW-83 for Phase One IQ3 (XF/DF)
- SLW-88 Mamiya 645 AFD
- SLW-81 for Leaf Afi or Sinar/Rollei Hy6
- Also compatible with WRS-1068 Rear Plate for Mamiya RB film backs and WDS-619 Ground Glass Frame
- ACDB-250 Standard Bellows for ACTUS-DB
- ACTUS-DB2 Monorail (6.9" / 175mm)
- AC-389 Infinity Lock
- Limited 1-Year Warranty
| Camera Type | View camera body for digital back capture |
| Lens Mount | Compatible with optional ACB-0, ACB-1, ACB-ALP, and ACB-WRS lensplates |
| Compatible Digital Backs | Compatible with optional SLW digital back interface plates and WRS/WDS rear plates |
| Monorail Length | 6.9" / 175 mm |
| Bellows Extension | 5.9" / 150 mm (standard ACDB-250 bellows) |
| Camera Movements | Rear Rise/Fall: +0.5", -0.6" / +12 mm, -15 mm Rear Shift: � 0.8" / 20 mm Front Swing: 360� Front Tilt: +10�, -9� |
| Focusing System | Quick-slide adjustment, geared fine-focus adjustment |
| Mounting | Monorail is Arca-Swiss-compatible 1/4" and 3/8" mounts also integrated into monorail |
| Dimensions | 7.1 x 3.9 x 8.3" / 18 x 10 x 21 cm |
| Weight | 2.6 lb / 1.2 kg |
| Packaging Info | |
|---|---|
| Package Weight | 3.95 lb |
| Box Dimensions (LxWxH) | 10.2 x 7.9 x 6.3" |
