Description
Cambo Actus-B Overview

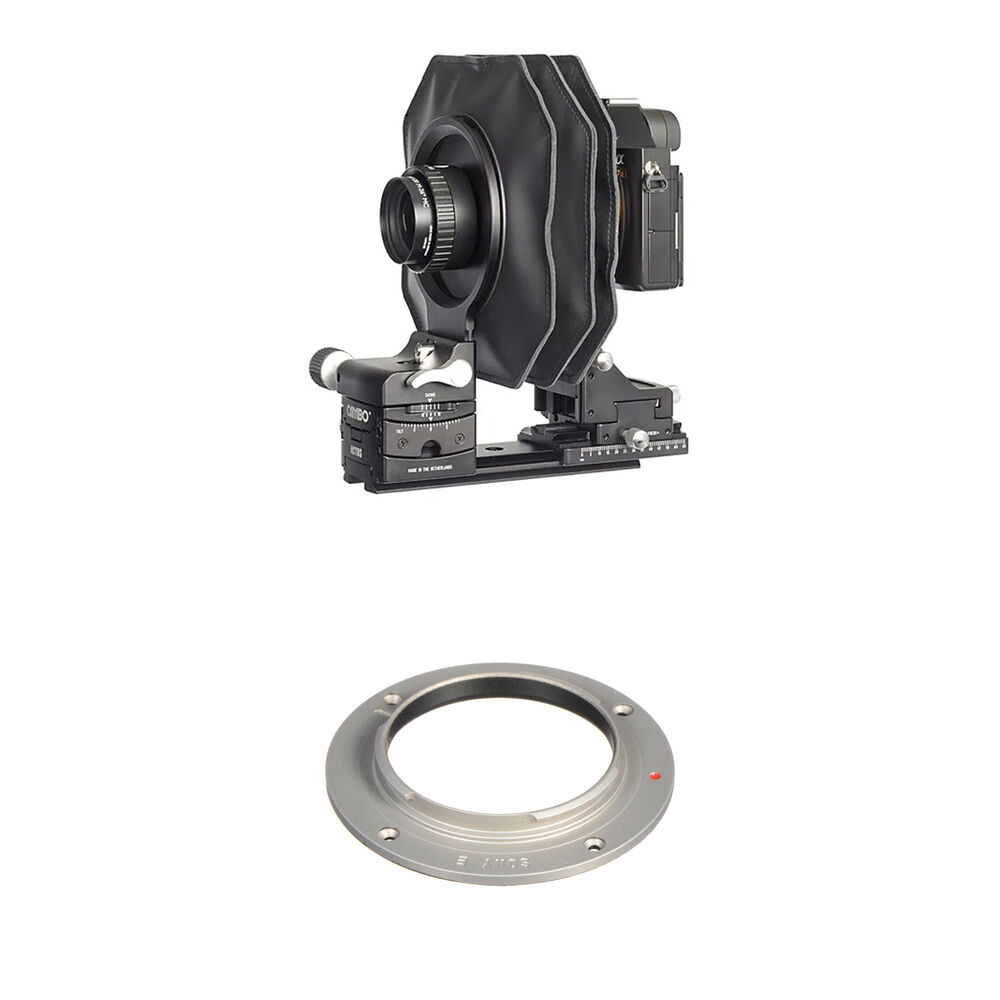

Providing the basics needed for converting your Sony E-mount mirrorless camera into a large format setup, the ACTUS-B View Camera Body with Bayonet Kit from pairs the view camera with bellows and monorail with a Sony E-mount bayonet kit.

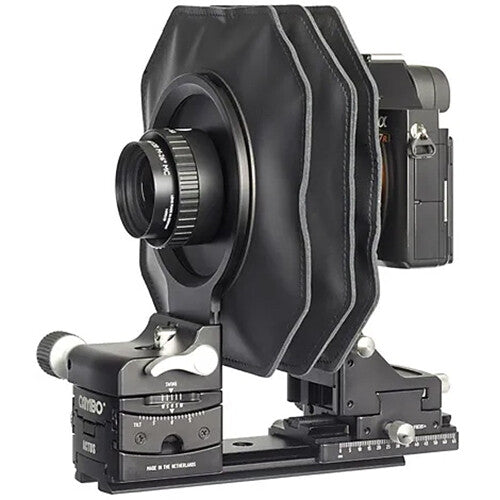

Offering extensive perspective and focus control along with the convenience of working with your digital camera, the black ACTUS-B View Camera Body from Cambo effectively transforms your DSLR or mirrorless camera into a digital view camera. As the core component within a modular system, this view camera body serves as the primary piece from which you can pair a variety of digital cameras and lenses to reap the benefits of geared camera movements for correcting perspective distortions, achieving an extended depth of field, or producing creative selective focus effects. While resembling traditional large format view cameras in function, the ACTUS system also echoes the compact form factor of the digital cameras it is designed to be paired with and is optimized for use in both the studio as well as on location.
This view camera body is delivered with a 6.1" monorail as well as a 4.9" bellows to permit working with a variety of lens and camera types. The monorail is designed to fit within the Arca-Swiss style quick release system for easy mounting to a tripod, and is also fitted with both 3/8"-16 and 1/4"-20 mounts for attaching quick release plates. Optional lensplates and bayonet mounting kits can be added depending on your desired lens and camera combination, and the monorail and bellows is also interchangeable with optional wide-angle and longer versions of each.
- Rear Rise/Fall: +0.5", -0.6" / +12mm, -15mm
- Rear Shift: +/- 0.8" / 20mm
- Front Swing: 360°
- Front Tilt: +10°, -9°
The swing and tilt movements of the front standard rotate about the optical axis in order to avoid having to re-compose or re-focus after each movement is applied.
- Both fine geared and quick-slide focusing adjustment types are available.
- Bellows and monorail focusing allows you to achieve closer focusing distances without the use of extension tubes or other macro attachments.
- Zero-position clicks are incorporated into each movement type for more intuitive handling.
- Monorail is compatible with the Arca-Swiss-style quick release system and also features both 3/8"-16 and 1/4"-20 mounts.
- Front tilts and swings allow you to alter the plane of focus for employing selective focus techniques or Scheimpflug settings for extensive depth of field. Additionally, these tilt and swing movements are used to correct for convergence and other perspective distortions.
- Rear horizontal and vertical shifts allow you to move the camera position while retaining the same lens position, making this configuration especially ideal for stitching multiple exposures without having to adjust the lens.
- The optional camera bayonet mounts allow you to rotate between horizontal and vertical shooting orientations without having to adjust the actual orientation of the view camera body.
- This black finish body is anodized for greater durability and scratch resistance.
- Compact overall form factor is relative to the size of DSLR and mirrorless cameras.
Lensplates:
- Copal #0
- Copal #1
- M39 threading
- Leica R bayonet
- Hasselblad C bayonet
- Mamiya RZ/RB bayonet
- Mamiya 645 Pro TL bayonet
- Pentax 645 bayonet
- Nikon F bayonet
- Canon EF bayonet
Camera Bayonet Mounts:
- Canon EOS camera body (except 1D-series)
- Nikon F camera body (except D3/D4-series)
- Leica M camera body
- Sony E camera body
- Fujifilm X camera body
- Olympus OM-D camera body
- Micro Four Thirds camera body
Additionally, besides the standard included bellows and monorail, a variety of optional bellows and monorails are available for wide-angle and close-focusing/macro shooting applications.

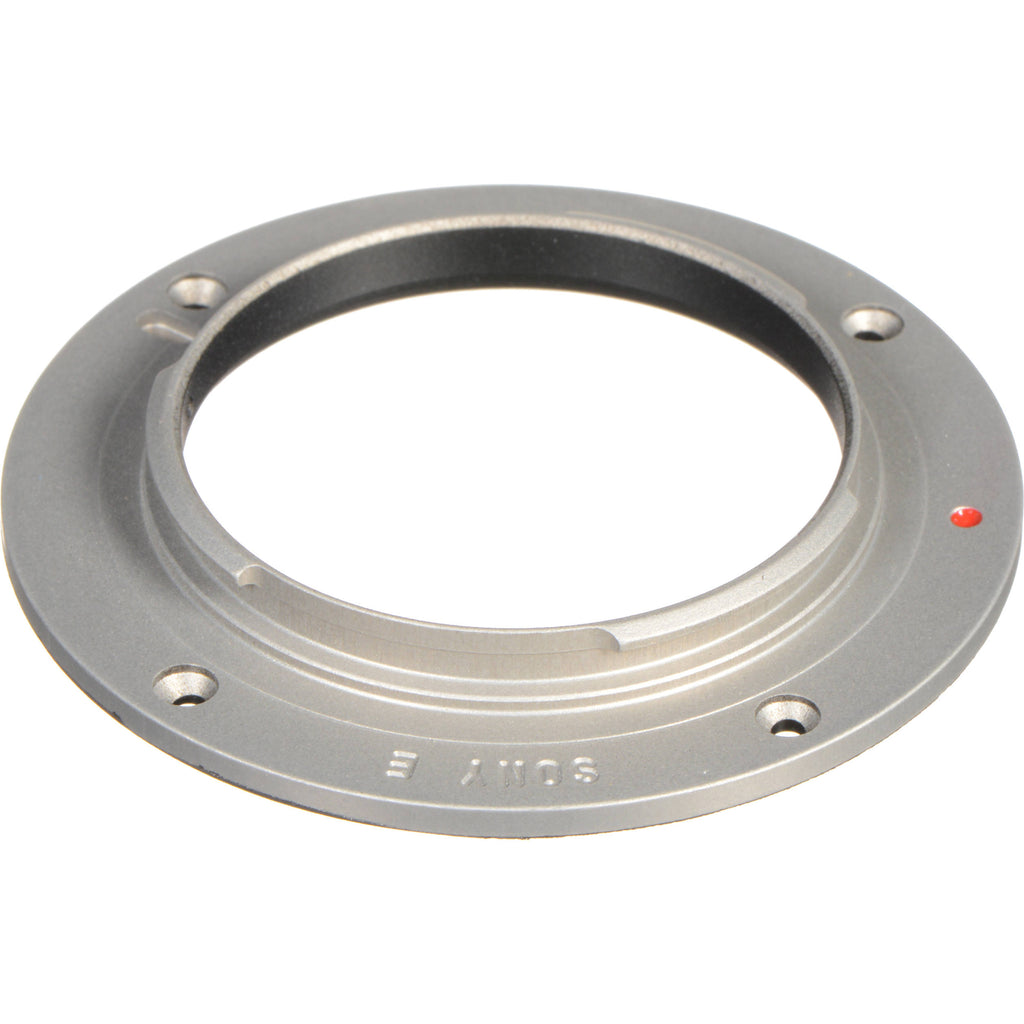

This AC-786 ACTUS Bayonet Kit from Cambo allows you to attach a Sony E-mount body to the ACTUS View Camera. This is included in the ACTUS-B6 and ACTUS-T7 sets and is offered here as a replacement or spare.
Items Included
- Cambo ACTUS-B View Camera Body (Black)
- Cambo AC-210 Standard Bellows for ACTUS
- Cambo AC-315 Standard Monorail for ACTUS Cameras (6.1")
- Limited 1-Year Manufacturer Warranty
- Cambo AC-786 ACTUS Bayonet Kit for Sony E Mount Body
- 4 x Mounting Screws
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Cambo Actus-B Specs
| Camera Type |
View camera body for DSLR or mirrorless capture
|
| Lens Mount |
Compatible with optional ACTUS-B lensplates
|
| Camera Mount |
Compatible with optional ACTUS camera bayonet mounts
|
| Monorail Length |
6.1" / 155 mm (standard AC-315 monorail)
|
| Bellows Extension |
4.9" / 125 mm (standard AC-210 bellows)
|
| Focusing System |
Quick slide adjustment, geared fine-focus adjustment
Up to 4.9" / 125 mm travel with Sony E mount Up to 5.7" / 145 mm travel with Nikon F mount Up to 5.6" / 141 mm travel with Canon EF mount |
| Mounting |
Monorail is Arca-Swiss-compatible
1/4" and 3/8" mounts also integrated into monorail |
| Dimensions |
5.9 x 3.9 x 6.7" / 15 x 10 x 17 cm
|
| Weight |
2.2 lb / 1 kg
|
| Package Weight |
3.45 lb
|
| Box Dimensions (LxWxH) |
10.3 x 8 x 6.4"
|
