Description

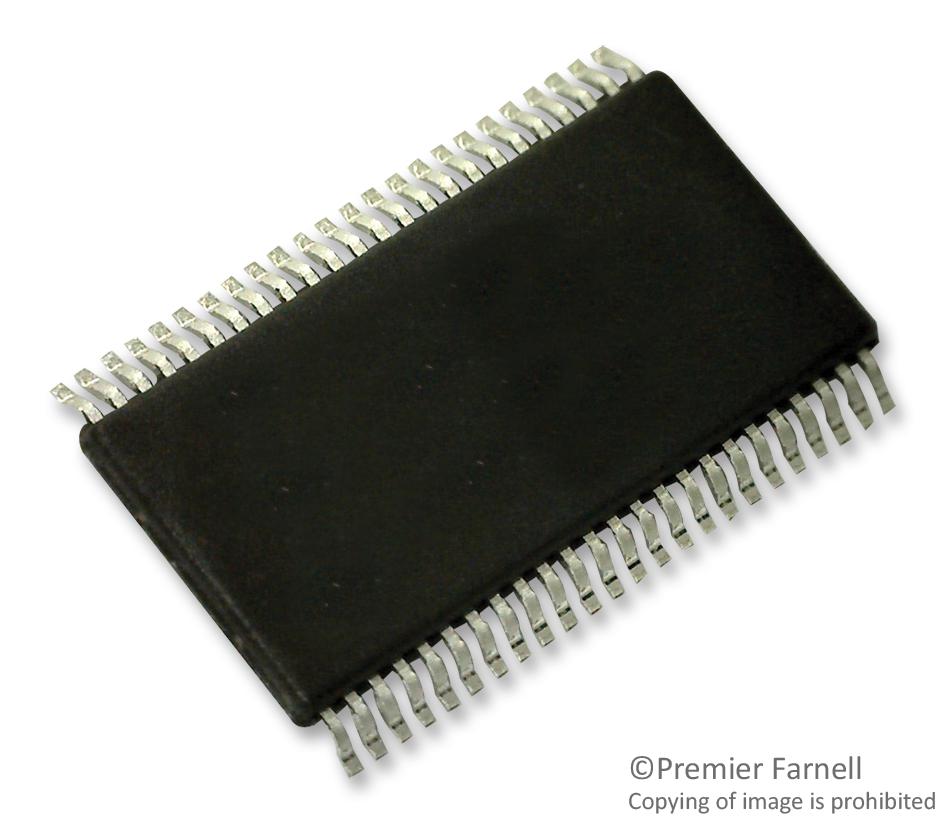

The DS90CF366MTD/NOPB is a LVDS Receiver converts the three LVDS data streams (up to 1.78Gbps throughput or 223Mbps bandwidth) back into parallel 21 bits of CMOS/TTL data (18 bits of RGB and 3 bits of Hsync, Vsync and DE). The receiver outputs are falling edge strobe. This chipset is an ideal means to solve EMI and cable size problems associated with wide, high speed TTL interfaces.
- Supports VGA, SVGA, XGA and single pixel SXGA
- PLL requires no external components
- Rx power consumption of <142mW (typical) at 85MHz grayscale
- Rx power-down mode of <1.44mW (maximum)
- ESD rating of >7kV (HBM) and >700V (EIAJ)
- 20 to 85MHz Shift clock support
- Green product and no Sb/Br
Imaging, Video & Vision
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | DS90CF366MTD/NOPB |
| Quantity | Each |
