Description
Product Overview

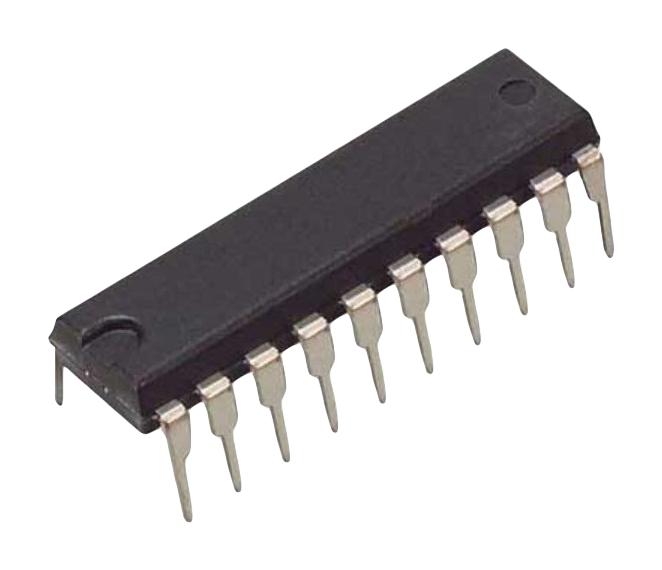

TC74HC574AP(F) is a high speed CMOS octal flip-flop with 3-stae output fabricated with silicon gate C²MOS technology. It achieves the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation. This 8bit D-type flip-flop is controlled by a clock input (CK) and an output enable input (active low OE). All inputs are equipped with protection circuits against static discharge or transient excess voltage.
- Non-inverting octal D-type filp-flop with 3-state output
- Maximum clock frequency is 17MHz typ (VCC = 2.0V, Ta = 25°C, input: tr = tf = 6ns)
- Power dissipation capacitance is 54pF typ (Ta = 25°C, input: tr = tf = 6ns)
- High noise immunity: VNIH = VNIL = 28% VCC (min)
- Output drive capability: 15 LSTTL loads
- Symmetrical output impedance: (IOH) = IOL = 6mA (min)
- Balanced propagation delays: tpLH ?? tpHL
- Wide operating voltage range from 2 to 6V
- Pin and function compatible with 74LS564/574
- DIP20-P-300-2.54A package, operating temperature range from -40 to 85°C
Product details
Other details
| Brand | TOSHIBA |
| Part Number | TC74HC574AP(F) |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
