| ₹ 95.05 includes GST and import duties. | |
| B2B customers can avail ₹ 14.5 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

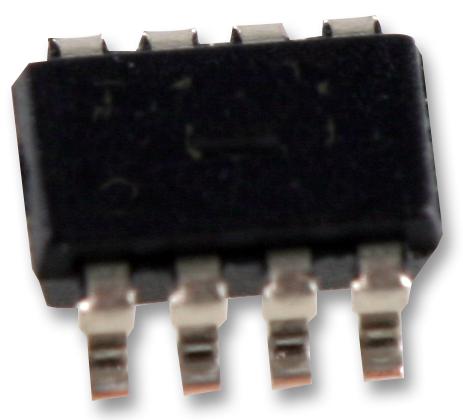

The SN74LVC3G14DCTR is a triple Schmitt-trigger Inverter. The device performs the Boolean function Y = A\. The device functions as three independent inverters but, because of Schmitt action, it may have different input threshold levels for positive-going (VT+) and negative-going (VT-) signals. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
- ±24mA Output drive at 3.3V
- <0.8V at VCC = 3.3V (typical) VOLP (Output ground bounce)
- >2V at VCC = 3.3V Typical VOHV (Output VOH undershoot)
- 10µA Maximum ICC low power consumption
- Inputs accept voltages to 5.5V
- Maximum tpd of 5.4ns at 3.3V
- Ioff supports live insertion, partial power down mode and back drive protection
- ESD protection exceeds JESD 22
- Latch-up performance exceeds 100mA per JESD 78, Class II
Industrial
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | SN74LVC3G14DCTR |
| Quantity | Each (Supplied on Cut Tape) |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 93.15 |
| 3-5 | ₹ 92.2 |
| 5-10 | ₹ 90.3 |
| 10+ | ₹ 88.4 |
Bulk discount will be automatically applied during checkout based on quantity.
