| ₹ 45.0 includes GST and import duties. | |
| B2B customers can avail ₹ 6.86 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

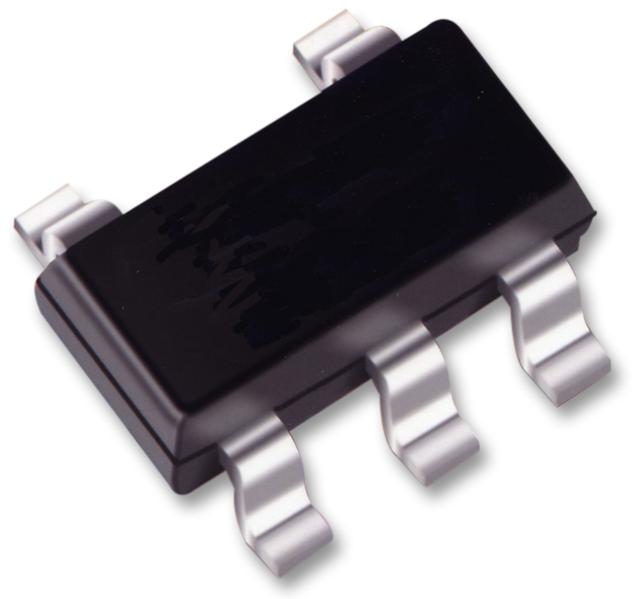

The SN74LVC1G02DBVR is a single 2-input Positive-NOR Gate designed for 1.65 to 5.5V VCC operation. The device performs the Boolean function Y = (A + B)\ or Y = A\ � B\ in positive logic. The CMOS device has high output drive while maintaining low static power dissipation over a broad VCC operating range.
- Supports 5V VCC operation
- Inputs accept voltages to 5.5V
- Provides down translation to VCC
- Maximum tpd of 3.6ns at 3.3V
- 10µA Maximum ICC low power consumption
- ±24mA Output drive at 3.3V
- Ioff supports live insertion
- Partial-power-down mode
- Back-drive protection
- Latch-up performance exceeds 100mA per JESD 78, Class II
- ESD protection exceeds JESD 22
- Green product and no Sb/Br
Imaging, Video & Vision, Audio, Consumer Electronics, Portable Devices, Embedded Design & Development, Computers & Computer Peripherals, Wireless
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | SN74LVC1G02DBVR |
| Quantity | Each (Supplied on Cut Tape) |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 44.1 |
| 3-5 | ₹ 43.65 |
| 5-10 | ₹ 42.75 |
| 10+ | ₹ 41.85 |
Bulk discount will be automatically applied during checkout based on quantity.
