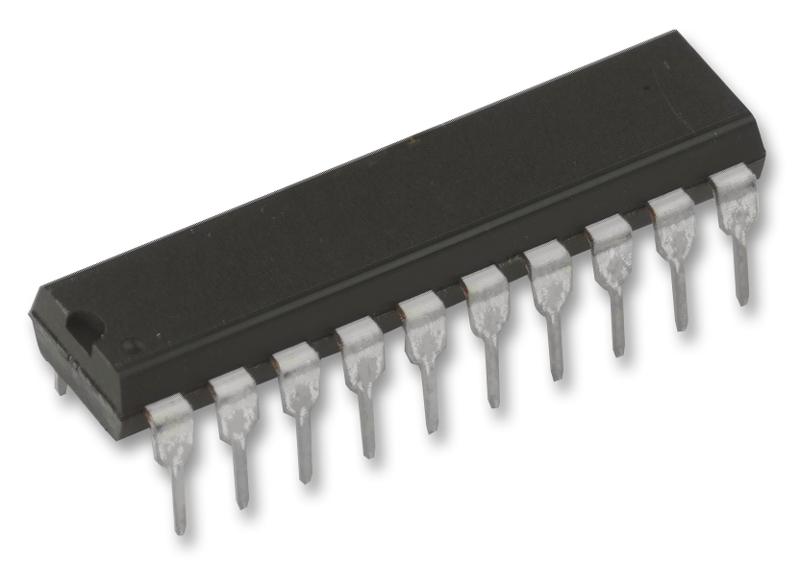

TEXAS INSTRUMENTS SN74HC573AN Latch, 74HC573, D Type Transparent, Tri State Non Inverted, 21 ns, 7.8 mA, DIP

The SN74HC573AN is an Octal Transparent D-type Latch features 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. Particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers and working registers. While the latch-enable (LE) input is high, the Q outputs respond to the data (D) inputs. When LE is low, the outputs are latched to retain the data that was set up. A buffered output-enable (OE)\ input can be used to place the eight outputs in either a normal logic state (high or low logic levels) or the high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and increased drive provide the capability to drive bus lines without interface or pull-up components.

• High-current 3-state outputs drive bus lines directly or up to 15 LSTTL loads
• Low power consumption, 80µA maximum ICC
• 21ns Typical TPD
• ±6mA Output drive at 5V
• Low input current of 1µA (maximum)
• Bus-structured pin-out

Applications

Industrial
