Description

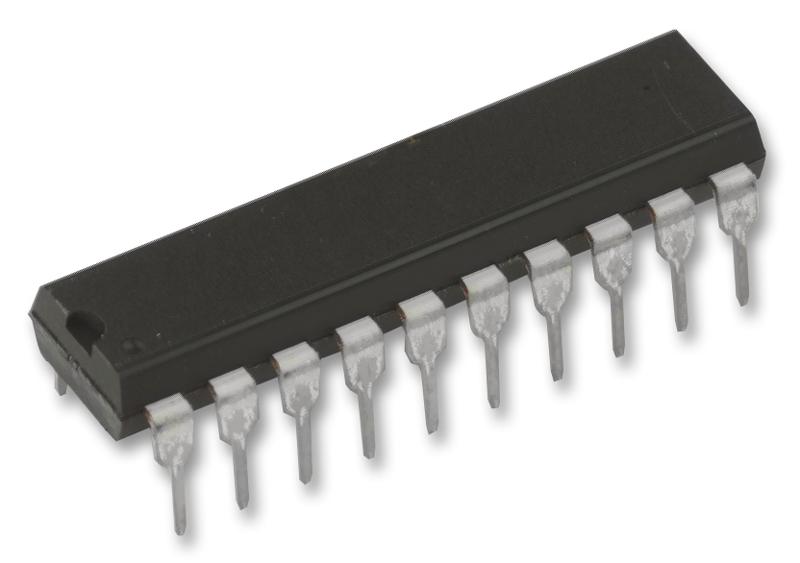

The SN74HC244N is an Octal Buffer and Line Driver IC, designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers and bus-oriented receivers and transmitters. This device organized as two 4-bit buffers/drivers with separate output-enable (OE)/inputs. When OE/ is low, the device passes non-inverted data from the A inputs to the Y outputs. When OE/ is high, the outputs are in the high-impedance state.
- High-current Outputs Drive up to 15 LSTTL Loads
- 3-state Outputs Drive Bus Lines or Buffer Memory Address Registers
- Low-power Consumption, 80µA Maximum ICC
- 11ns Typical Propagation Delay Time
- ±6mA Output Drive at 5V
- 1µA (maximum) Low Input Current
Clock & Timing, Signal Processing
Warnings Input and output voltage ratings may be exceeded if the input and output current ratings are observed, package thermal impedance is calculated in accordance with JESD 51-7.Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | SN74HC244N |
| Quantity | Each |
| Product Change Notice EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
