| ₹ 332.97 includes GST and import duties. | |
| B2B customers can avail ₹ 50.78 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
The SN74ALVC164245DGGR is a 16-bit non-inverting 2.5 to 3.3 or 3.3 to 5V level shifting Bus Transceiver with three-state outputs. The SN74ALVC164245 is designed for asynchronous communication between data buses. The control circuitry is powered by VCCA. To ensure the high-impedance state during power up or power down, the output-enable (OE) or input should be tied to VCC through a pull up resistor, the minimum value of the resistor is determined by the current-sinking capability of the driver. The logic levels of the direction-control (DIR) input and the output-enable (OE) or input activate either the B-port outputs or the A-port outputs or place both output ports into the high-impedance mode. The device transmits data from the A-bus to the B-bus when the B-port outputs are activated and from the B-bus to the A-bus when the A-port outputs are activated.
- Maximum TPD of 5.8ns at 3.3V
- ±24mA Output drive at 3.3V
- Control inputs VIH/VIL levels are referenced to VCCA voltage
- Latch-up performance exceeds 250mA per JESD 17
- Green product and no Sb/Br
Industrial
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | SN74ALVC164245DGGR |
| Quantity | Each (Supplied on Cut Tape) |

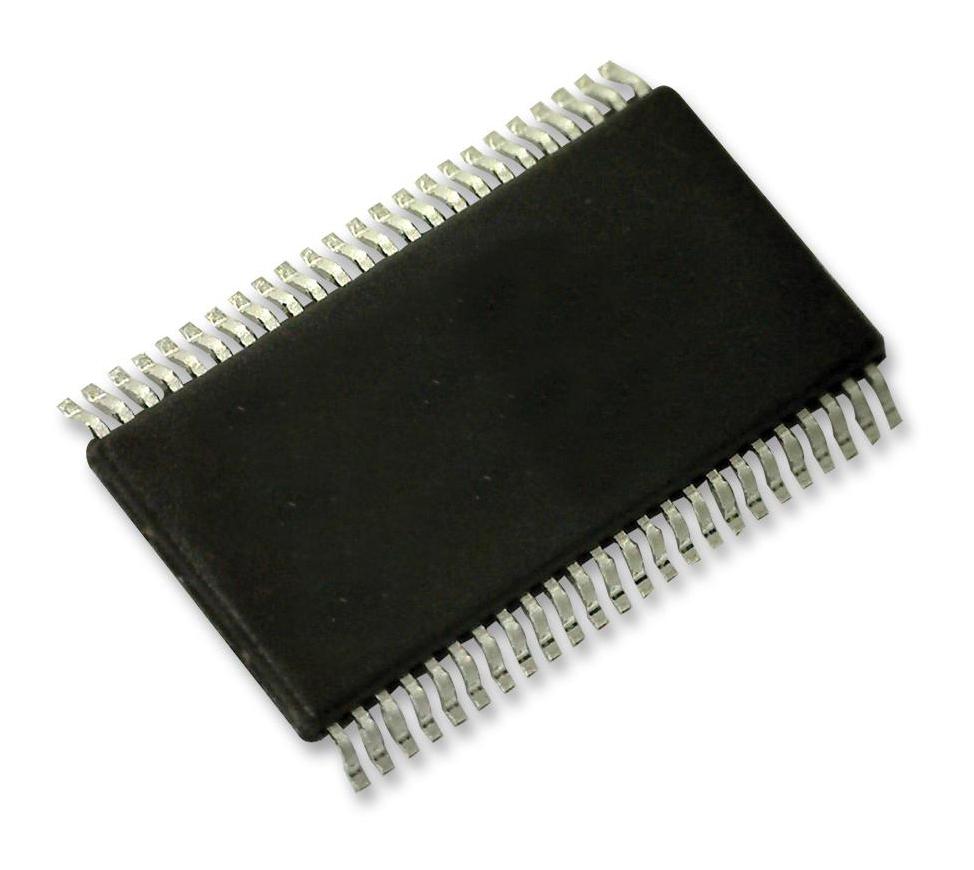

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 326.31 |
| 3-5 | ₹ 322.98 |
| 5-10 | ₹ 316.32 |
| 10+ | ₹ 309.66 |
Bulk discount will be automatically applied during checkout based on quantity.
