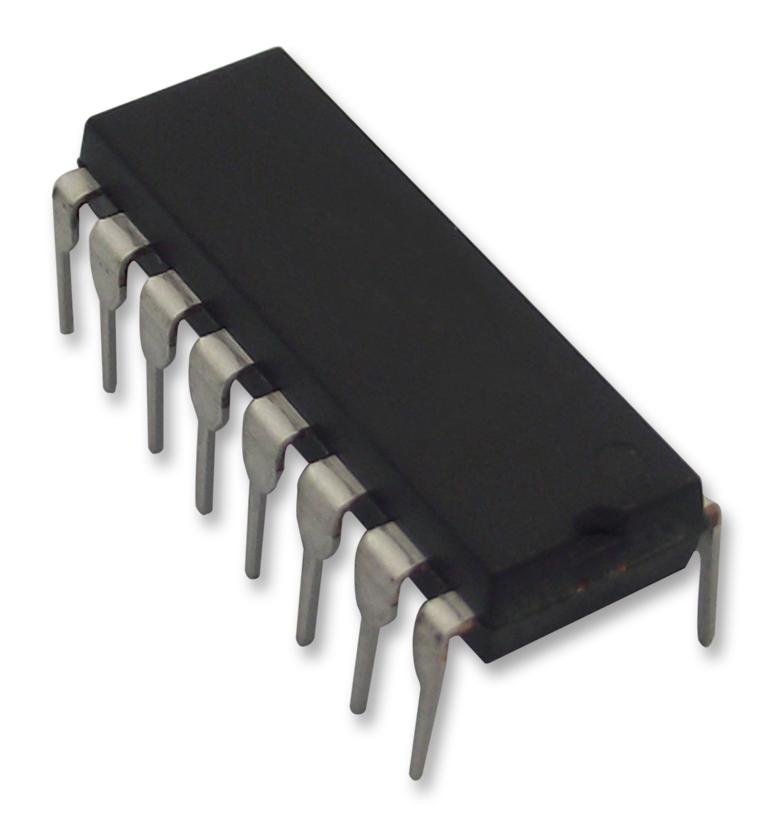

Texas Instruments CD4042BE CD4042BE Latch CD4042 D Type Differential 40 ns 6.8 mA DIP

The CD4042BE is a CMOS Quad-clocked 'D' Latch, each strobed by a common clock. Complementary buffered outputs are available from each circuit. The impedance of the n and p-channel output devices is balanced and all outputs are electrically identical. Information present at the data input is transferred to outputs Q and Q\ during the CLOCK level which is programmed by the POLARITY input. For POLARITY=0 the transfer occurs during the 0 CLOCK level and for POLARITY=1 the transfer occurs during the 1 CLOCK level. The outputs follow the data input providing the CLOCK and POLARITY levels defined above are present. When a CLOCK transition occurs (positive for POLARITY=0 and negative for POLARITY=1) the information present at the input during the CLOCK transition is retained at the output until an opposite CLOCK transition occurs.

• Clock polarity control
• Q and Q\ outputs
• Common clock
• Low power TTL compatible
• Standardized, symmetrical output characteristics
• 100% Tested for quiescent current at 20V

Applications

Industrial

Other details

Brand	TEXAS INSTRUMENTS
Part Number	CD4042BE
Quantity	Each
