- Use With FMX-42a Portable Mixer
- Send/Return To/From Camera via FMX-42a
- 10-Pin Hirose Male to 2 XLRM & 1/8" Male
- Send Audio to Two Recording Devices
- Three Feet in Length

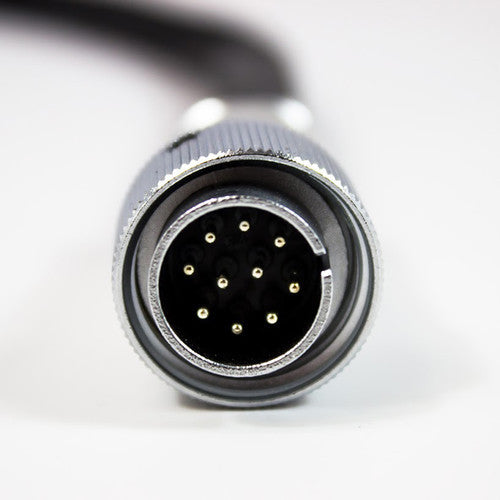

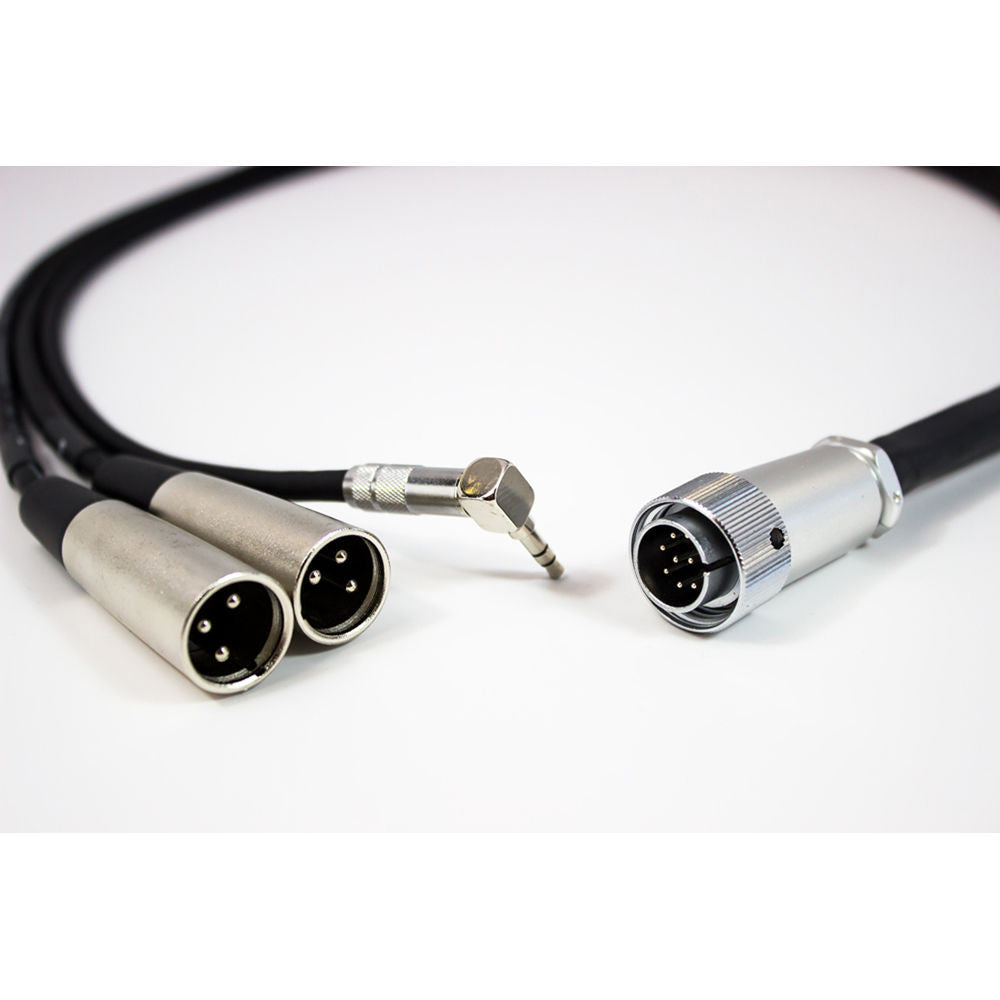

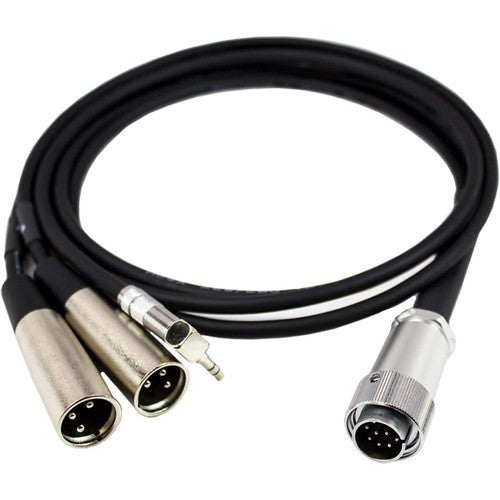

The Azden MX-10 is a multi-pin stereo send-and-return breakout cable designed for use with the FMX-42a Portable Mixer. It has a 10-pin Hirose male connector that goes to two balanced male XLR connectors and one stereo 3.5mm male connector.

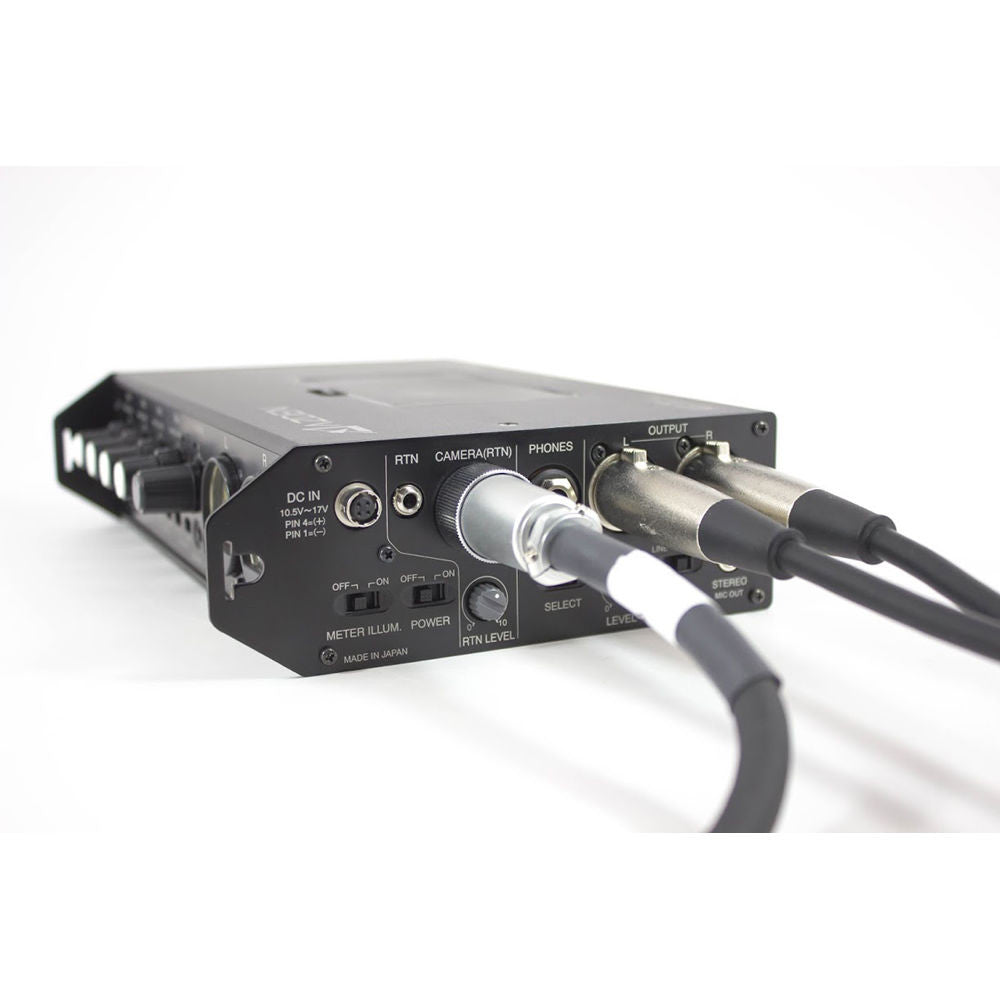

With the MX-10 you can take full advantage of the FMX-42a's return monitoring capabilities. Send stereo audio to your camera and return for monitoring at the mixer. Adding the MX-10 to your toolkit also gives you the ability to send stereo audio to two separate recording devices, as the FMX-42a's 10-pin output and main XLR outputs can be used simultaneously.
The MX-10 is three feet in length and can be extended by using standard XLR microphone cables and a 3.5mm headphone extension cable (not included).
UPC: 095528903155
In the Box
Azden MX-10 Send/Return Breakout Cable for FMX-42a (3')
| Connectors | 10-pin Hirose male to 2 x XLR male and 1 x stereo 3.5 mm male |
| Length | 3.0' / 0.9 m |
| Packaging Info |
| Package Weight | 0.5 lb |
| Box Dimensions (LxWxH) | 8.9 x 4.3 x 0.7" |
