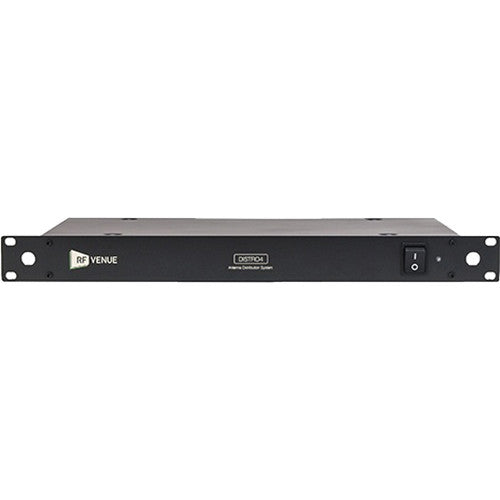

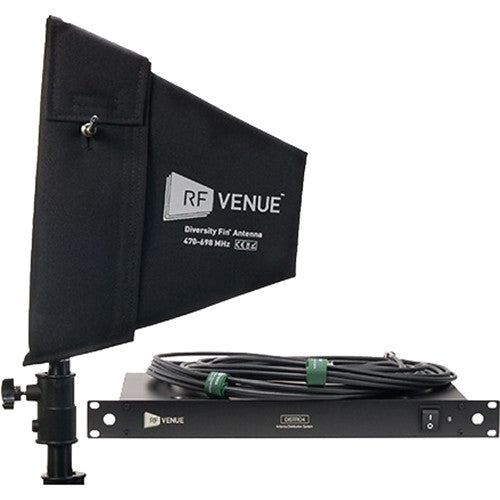

The DISTRO4 4-Channel UHF Antenna Distribution System from RF Venue is an active antenna splitter designed to split the RF signal from two remotely mounted antennas and distribute it to up to 5 wireless receivers (antennas and receivers available separately). The all-metal, 1-RU rackmount splitter includes 10 BNC cables for splitting the RF signal as well as 4 DC jumpers to provide four wireless receivers with power. The unit's cascade port can be used to connect a fifth receiver (with an external power supply) or additional DISTRO4 units connected to additional receivers.
At a Glance
- Reduce IMD and crosstalk while decluttering your rack with regulated 12 VDC power to your receivers
- Routes antenna signals from a pair of diversity antennas to several receivers in a multichannel system
- Compensates for signal strength lost in the splitting process with high-quality amplifiers
- Provides DC powering for up to 4 receivers
- Internal switch applies DC power over coaxial cable to antenna connections

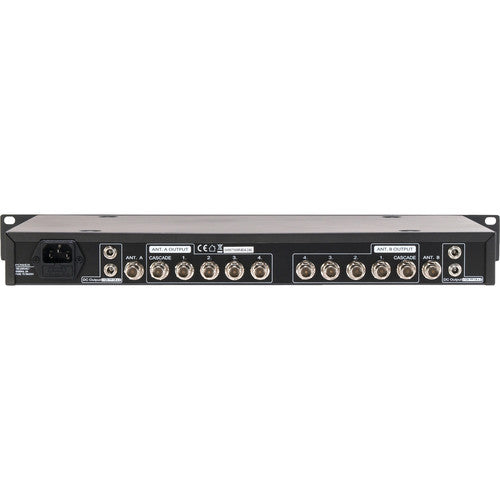

- Features BNC outputs for 4 receivers, plus cascade BNC for a fifth receiver (with external power supply) or additional DISTO4 units and receivers
- Wide UHF bandwidth from 470 to 952 MHz
- Works with any UHF wireless system that supports remote antenna mounting
- 1 RU full-rack width to install near receivers
- 2000mA internal power supply (no wall wart)
