Description
- Frequency Range 470 - 698MHz
- Flat Folding Waterproof Design
- Buckles While Flat for Easy Storage
- Long Range for FOH Applications
- Fits 1/4-20, 3/8-16 & 5/8-27 Stands

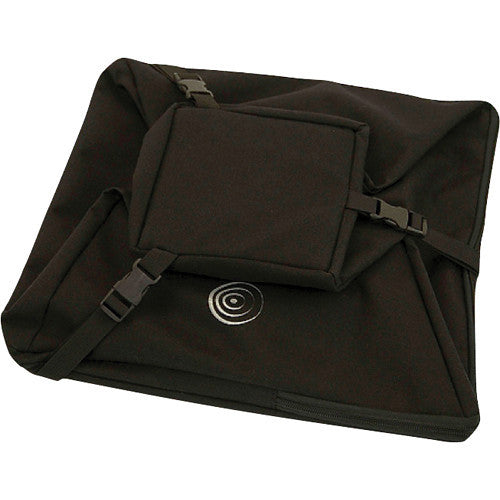

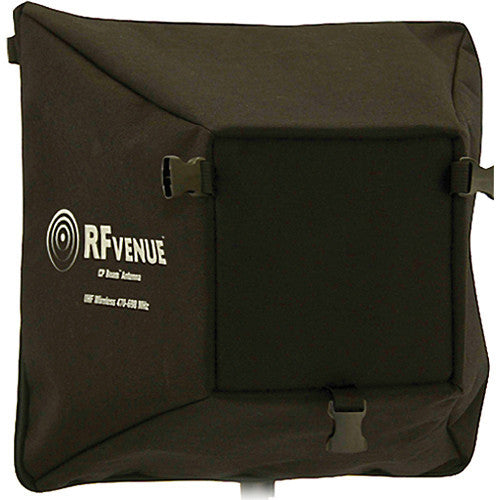

The RFVenue CP Beam Antenna is a uniquely designed, long range antenna for wireless microphones and IEM (In Ear Monitoring) systems. The antenna features a waterproof nylon material, perfect for outdoor use. It folds and buckles while flat for easy storage and transport. The CP Beam Antenna operates on a wide frequency band of 470 - 698MHz, and features a circular polarized beam pattern high directionality and strong signal reception. The CP Beam will easily mount to 1/4-20 lighting stands, 3/8-16 European microphone stands, and 5/8-27 international mic stands without any adapters.
- Works with existing wireless microphone and IEM systems, 470-698MHz
- Collapses from 12" extended to 3" compressed
- Perfect for long range FOH in arenas, large churches, sports stadiums, and outdoor concerts
- Circular polarized for high directionality and strong signal reception
- Super strong, water resistant nylon cover
- Fits 1/4-20 lighting stands, 3/8-16 EU mic stands, and 5/8-27 international mic stands- no adapters
In the Box
RFvenue CP Beam Antenna
- 1 Year Warranty
| Operating Frequency | 468 - 740MHz |
| Bandwidth | 272 MHz |
| Return Loss | -13.15 dBm |
| Impedance | 50 ? |
| Pattern | Beam |
| Polarization | RHCP |
| Beam Width | Azimuth X: 63� Azimuth Y: 70� |
| Ratio | Azimuth X F/B: 15dB Azimuth Y F/B: 15dB Azimuth X F/S: 12dB Azimuth Y F/S: 12dB Squint: < 2 |
| Gain | 9dBd |
| Transmit Power | 50W |
| Connector | N female (BNC adapter supplied) |
| Mounting | 1/4-20, 3/18-16, and 5/8-27 |
| Operating Temperature | 10 to 130°F (-23 to 54�C) |
| Color | Black |
| Dimensions (LxH) | 14 x 14" (355 x 355mm) |
| Weight | 2.5 lb (1100g) |
| Packaging Info | |
|---|---|
| Package Weight | 2.75 lb |
| Box Dimensions (LxWxH) | 14.0 x 14.0 x 6.0" |
