Description

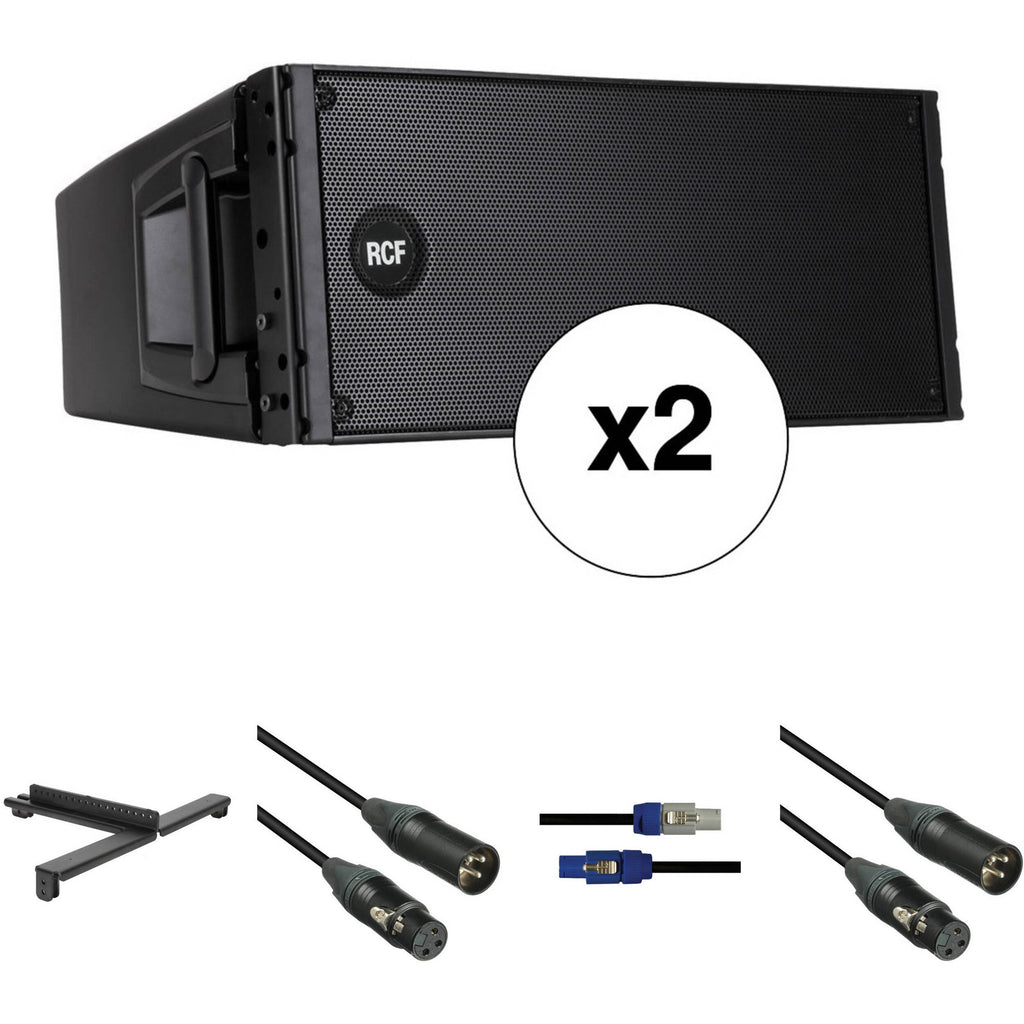

Need a compact line array system for live sound reinforcement? Check out this Kit which combines a pair of RCF HDL 20-A Powered Line Array Speaker Modules with a light fly bar, a combo power/audio jumper cable, and a premium XLR to create the primary components of a line array speaker system.
Audio professionals in search of a compact line array module for live sound reinforcement and reliable installation applications will be impressed with the RCF HDL 20-A, a powered line array module with a fast and easy setup well suited for touring bands, concerts, clubs, festivals, or anywhere line array performance is needed.
The module features a 1400W bi-amplifier that delivers 1000W to the dual 10" woofers and 400W to the 3" compression driver, which combine for a frequency response of 55 Hz to 20 kHz and a maximum SPL of 135 dB. The integrated DSP includes cluster and high-frequency projection correction and special new presets for indoor and high-curving situations. There are XLR inputs and outputs and powerCON inputs and outputs for daisy chaining multiple line array modules.
- The CD850 large-format compression driver delivers one of the key advantages of the HDL 20-A, the 3" voice coil allows a crossover point of 800 Hz and therefore almost all of the vocal range can be produced by this driver. This allows better coverage and dispersion control, and superior efficiency.
Low frequencies:
- High power woofers. Very-high efficient and controlled bass reproduction.
- 2 x 10" woofers, 2,5" inside-outside voice coil
- Water-resistant fiber doped cone
- Polycotton M-roll surround
- Hypervented magnetic structure
- 1400W peak power / 700W RMS
- 135 dB max SPL
- 55 Hz to 20 kHz frequency response
- DSP controlled -input section with selectable presets
- Tour-grade safe and solid variable mechanics
- Composite PP enclosure structurally wooden reinforced
The FL-B LGT HDL 20 Light Fly Bar from RCF is a suspending bar for the HDL 20-A Line Array System. This fly bar is designed specifically to suspend HDL 20-A line array speakers and supports up to 4 HDL 20-A speakers.
The solid steel construction can be relied upon for serious installation and demanding usage. This fly bar includes a pole mount, a pickup tab with shackle, a stacking bar, and 7 pins for getting started.
The black Kopul Premium Performance 3000 Series XLR Male to XLR Female Microphone Cable (25') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections onstage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. The 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.

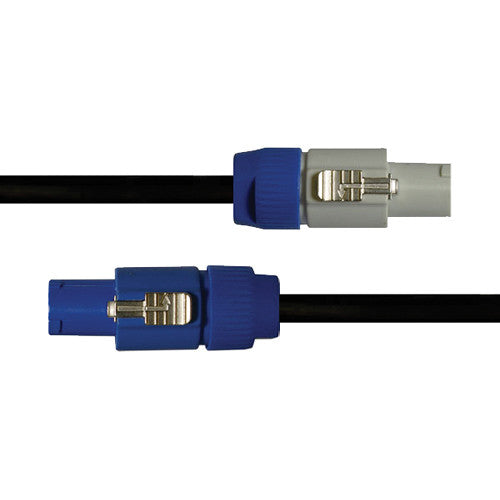

This 3' Cool Cable 14-Gauge Interconnect Cable from Blizzard Lighting allows power linking of compatible devices.
The Enova NXT True Mold XLR Microphone Cable (3.3') is a flexible and reliable cable built for connecting mics to mixers, preamps, audio interfaces, and recorders. True Mold technology fully integrates the cable and connectors, providing strain relief that withstands a higher force than conventionally manufactured XLR cables to ensure outstanding strength and durability that stands up to the rigors of live stage and studio applications. This is a weather and Moisture Resistant Cable.
Enova True Mold cables are made from 24 AWG wire with a 98% copper spiral outer shield that makes the cable resistant to EMI and RFI noise. The Swiss-made EnovaNxt connectors are gold-plated to provide a high level of connectivity, and all the solder connections are protected by heat-shrink tubes. The modern and slick design of the body allows for enhanced handling and the tapered design puts an end to drooping cables.
Items Included
- 2 x RCF HDL20-A Dual 10" 1400W Active Line Array Module
- Power Cord
- Limited 3-Year Manufacturer Warranty
- RCF FL-B LGT HDL 20 Light Fly Bar for HDL 20-A Line Array
- Stack Bar
- Pole Mount
- Pickup Tab with Shackle
- 7 x Pin
- Limited 3-Year Manufacturer Warranty
- Kopul Premium Performance 3000 Series Neutrik XLR Male to XLR Female Microphone Cable (25', Black)
- Limited 3-Year Manufacturer Warranty
- Blizzard Cool Cable 14-Gauge Interconnect Cable (3')
- Limited 2-Year Manufacturer Warranty
- Enova NXT True Mold XLR Microphone Cable (3.3')
- Limited Lifetime Warranty
Additional Resources
Guides & Manuals
RCF HDL20-A Dual 10" 1400W Active Line Array Module
| Speaker Type |
Active Line Array Loudspeaker
|
| Configuration |
Full-Range Array
|
| Total Output Power |
700 W RMS / 1400 W Peak
|
| LF Driver |
2x 10" / 25.4 cm Woofer
Voice Coil: 2.5" / 6.3 cm |
| HF Driver |
1x 2" / 5.1 cm Compression Driver
Voice Coil: 3" / 7.6 cm |
| Frequency Range/Response |
55 Hz to 20 kHz
|
| Configuration |
Full-Range Array
|
| Enclosure Type |
Bass-Reflex
|
| Total Output Power |
700 W RMS / 1400 W Peak
|
| Amplifier Power Rating |
Low Frequency (LF)
500 W RMS / 1000 W Peak Mid Frequency (MF) 200 W RMS / 400 W Peak |
| Amplifier Class |
Class-D
|
| LF Driver |
2x 10" / 25.4 cm Woofer
Voice Coil: 2.5" / 6.3 cm |
| HF Driver |
1x 2" / 5.1 cm Compression Driver
Voice Coil: 3" / 7.6 cm |
| Frequency Range/Response |
55 Hz to 20 kHz
|
| Maximum SPL |
135 dB
|
| Coverage Angle |
100? H x 15? V
|
| Protections |
RMS, Thermal
|
| Crossover Frequency |
800 Hz
|
| EQ & Filters |
No
|
| Dynamic Processing |
Soft Limiter
|
| Alignment Delay |
No
|
| Digital Signal Processing |
Venue Settings, Voicing Modes
|
