Description

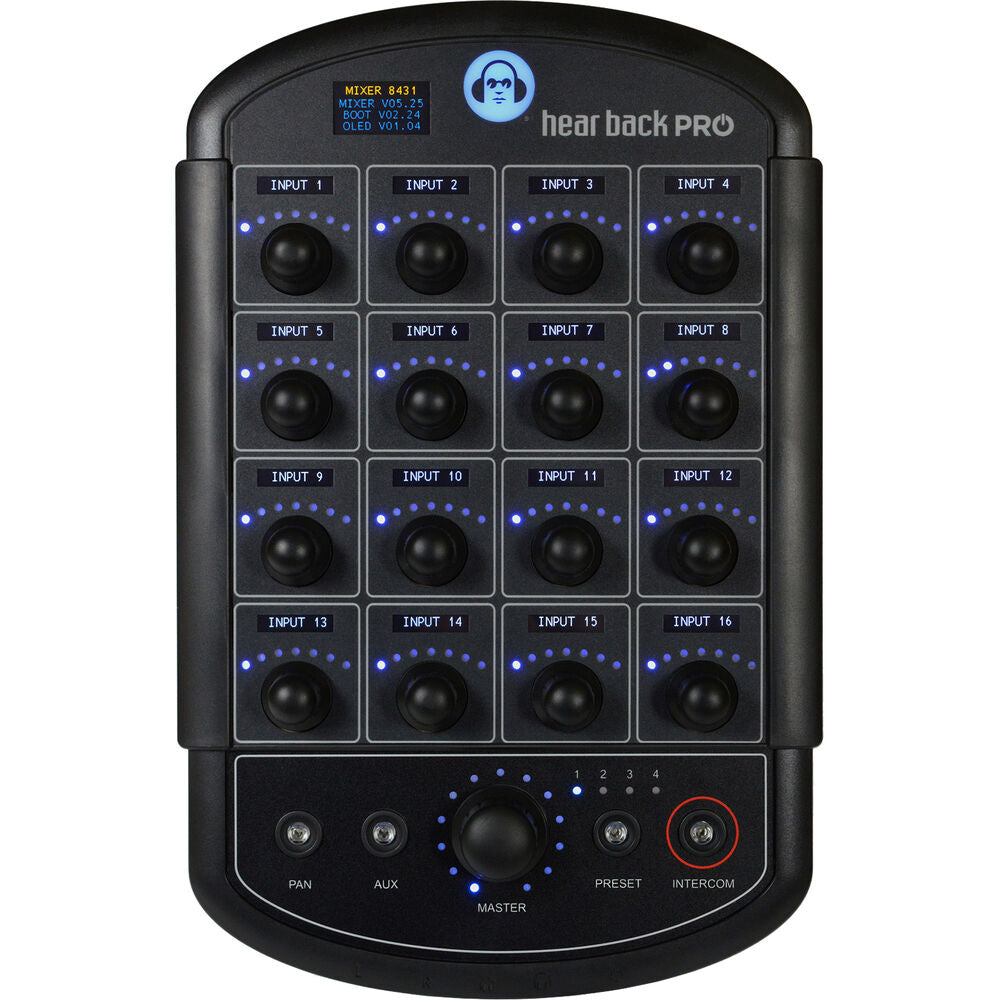

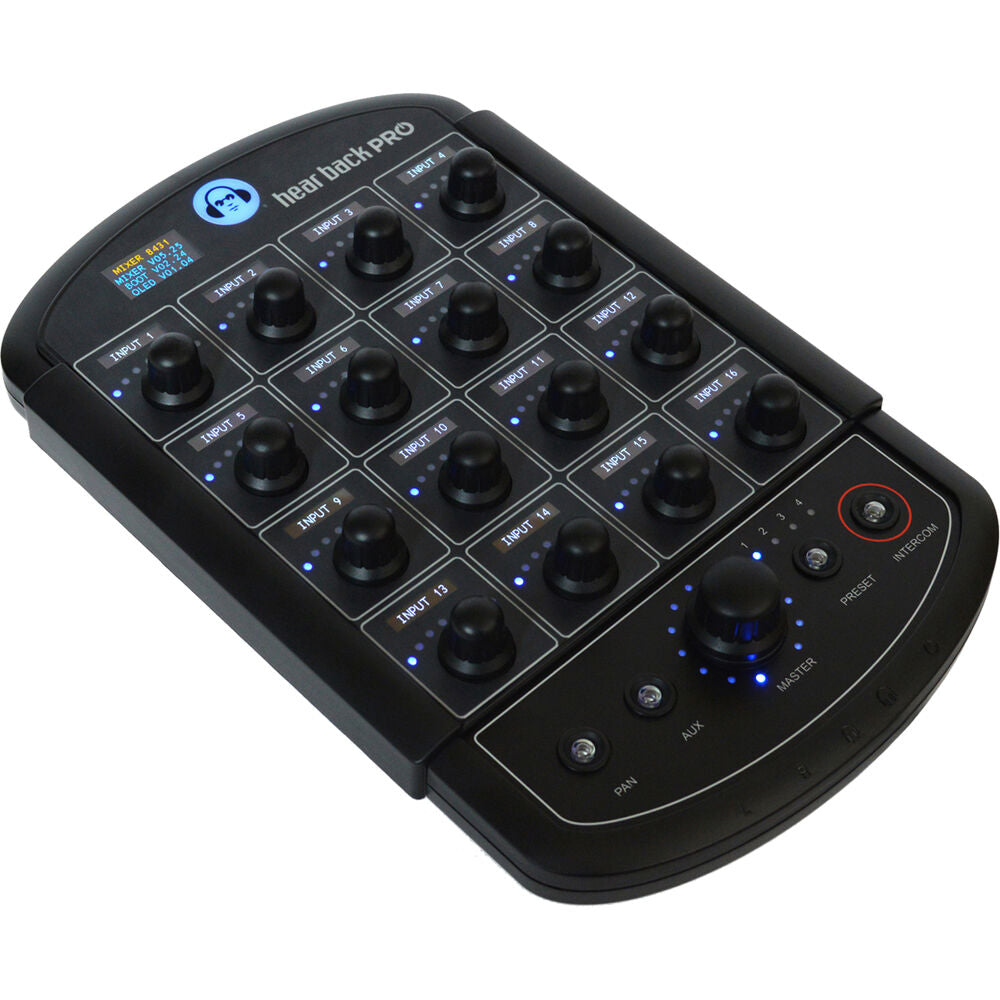

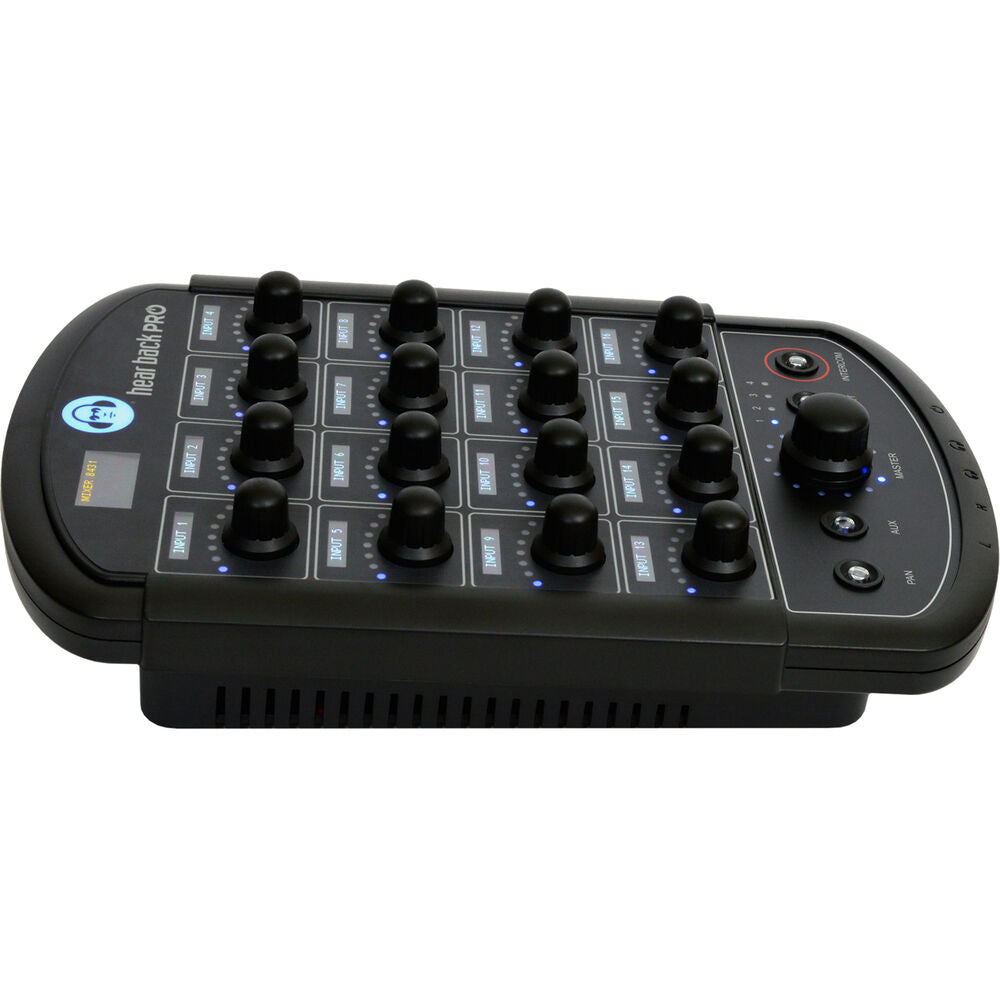

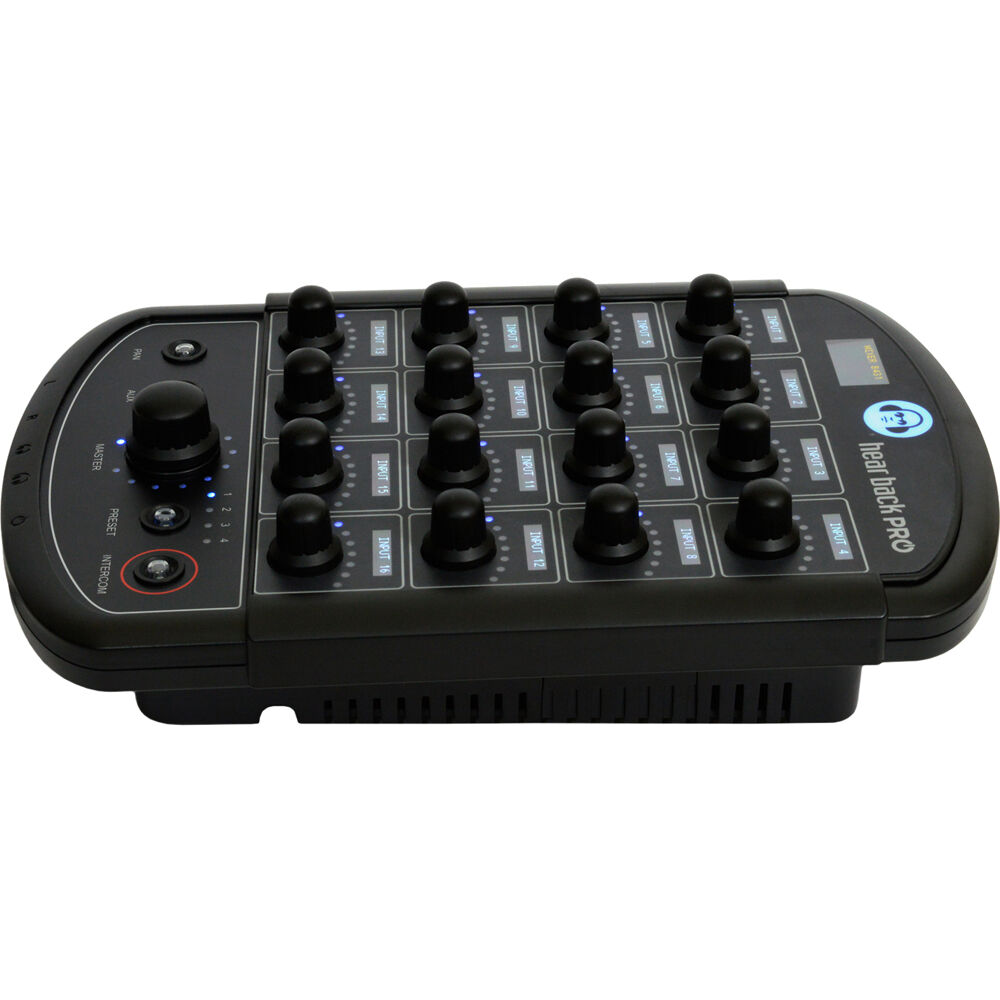

Hear Technologies PROHBMDO Overview
This configuration of the Hear Technologies Hear Back PRO Mixer includes the PRO Digital Overlay preinstalled on the faceplate of the mixer, upgrading the interface with easy-to-read OLED digital labeling.
The Hear Technologies Hear Back PRO Mixer is a personal monitor mixer designed to provide simple multi-source mixing and low system latency for musicians, vocalists, and various performers in recording studios, rehearsal spaces, and live stage applications. It receives power and signal via a Cat6e connection to a Hear Back PRO Hub (available separately) and features an integrated 5/8�-27 threaded socket for easy mounting to a mic stand. Store and recall up to four presets to instantly reconfigure mixer settings for different monitoring scenarios.
The 18-channel mixer accepts 16 channels via Cat6e and two channels via the 3.5mm stereo aux input jack. Adjacent mono channels can be linked for true stereo operation. Connect an external mic to the XLR 3-pin jack, then use the built-in intercom function to communicate to other connected Hear Back PRO Mixers. Volume and pan is adjustable for each channel and a dedicated master output knob allows for quick control of the headphone level. 24-bit A/D and D/A conversion delivers high-quality signal to the 3.5mm and 1/4" stereo headphone jacks and the two 1/4" balanced line outs.
Upgrade your Hear Back PRO monitor mixers with OLED-screen electronic labeling with this PRO Digital Overlay from Hear Technologies. Less than 3mm thick, each overlay installs right on the mixer face and connects to the mixer's expansion port via ribbon cable, providing neat labeling of the channels and mixer functions. The overlay's bright OLED displays are easy to see in the studio or during live performances. Naming functions are done remotely using the iOS app or a computer
- Bright and easily legible OLED displays allow for quick identification and control, even in low-light environments
- Supports the use of letters, numbers, and symbols when labeling channels and mixers
- Mixers and channels can be named and updated remotely with either the Hear Back PRO iOS app or via a computer
- Unobtrusive with a thin ultralow profile (less than 3mm thick)
- Rugged design for stage and touring
- Easy and quick installation
In the Box
- Hear Technologies Hear Back PRO Personal Monitor Mixer for Hear Back PRO Hub
- Hear Technologies PRO OLED Digital Overlay for Hear Back PRO Mixer (Single)
Hear Technologies Hear Back PRO Personal Monitor Mixer for Hear Back PRO Hub Specs
| Inputs | 1 x 1/8" (3.5 mm) TRS stereo mini-jack 1 x XLR 3-pin microphone input 1 x RJ45 |
| Outputs | 2 x 1/4" TRS balanced line outputs 1 x 1/4" TRS unbalanced stereo headphone jack 1 x 1/8" (3.5 mm) unbalanced stereo headphone mini-jack |
| Phantom Power | 15 V for XLR input |
| A/D and D/A Conversion | 24-bit Delta-Sigma |
| Maximum Input Level | Aux Input: +18 dBu (0 dBu optimal) Mic Input: -30 dBu (-42 dBu optimal) |
| Maximum Output Level | +24 dBu |
| Dynamic Range | 117 dB typical |
| Noise | -93 dBu at 192 kHz sample rate (A-weighted) |
| Impedance | Aux Input: 10 kOhms typical Mic Input: 1 kOhm, 150 Hz high-pass filter |
| Frequency Response | Line Outputs: 20 Hz to 20 kHz (±0.15 dB) |
| THD + N | Line Outputs: 0.004% typical (at 1 kHz, +15 dBu), 0.008% typical (at 20 Hz to 20 kHz, +4 dBu) |
| IMD | Line Outputs: 0.02% typical (at +4 dBu, 60 Hz/7 kHz) Headphone Outputs: <0.03% |
| Crosstalk | Line Outputs: Less than -93 dB at 1 kHz |
| Propagation Delay | Line Outputs: <0.25 ms at 192 kHz sample rate |
| Headphone Output Power | @ 8 Ohms: 1.2 W (THD <0.015%), 1.5 W (THD <0.1%) @ 16 Ohms: 1.6 W (THD <0.01%), 1.8 W (THD <0.1%) @ 25 Ohms: 2 W (THD <0.01%), 2.2 W (THD <0.1%) @ 32 Ohms: 1.8 W (THD <0.01%), 2 W (THD <0.1%) @ 50 Ohms: 1.5 W (THD <0.01%), 1.6 W (THD <0.1%) @ 100 Ohms: 1.1 W (THD <0.01%), 1.2 W (THD <0.1%) @ 200 Ohms: 500 mW (THD <0.01%), 650 mW (THD <0.1%) @ 600 Ohms: 220 mW (THD <0.01%), 250 mW (THD <0.1%) |
| Maximum Cable Distance | Cat6e: 500' / 152.4 m |
| Mounting | 5/8"-27 threaded socket |
| Enclosure Material | UV-stabilized ABS |
| Dimensions | 9.5 x 6.0 x 2.7" / 241.0 x 152.0 x 68.8 mm |
| Weight | 1.6 lb / 0.7 kg |
| Package Weight | 2.1 lb |
| Box Dimensions (LxWxH) | 10.8 x 7.1 x 4.9" |
Hear Technologies PRO OLED Digital Overlay for Hear Back PRO Mixer (Single) Specs
| Compatibility | Hear Technologies Hear Back PRO |
| Panel Type | OLED |
| Size | Not Specified by Manufacturer |
| Video I/O | 1 x Proprietary Input |
| Power Source | Proprietary Interface (Built-In) |
| Cable Length | Not Specified by Manufacturer |
| Dimensions | 6.8 x 6.2 x 0.1" / 172 x 157 x 2.7 mm |
| Weight | 0.17 lb / 77 g |
