Description

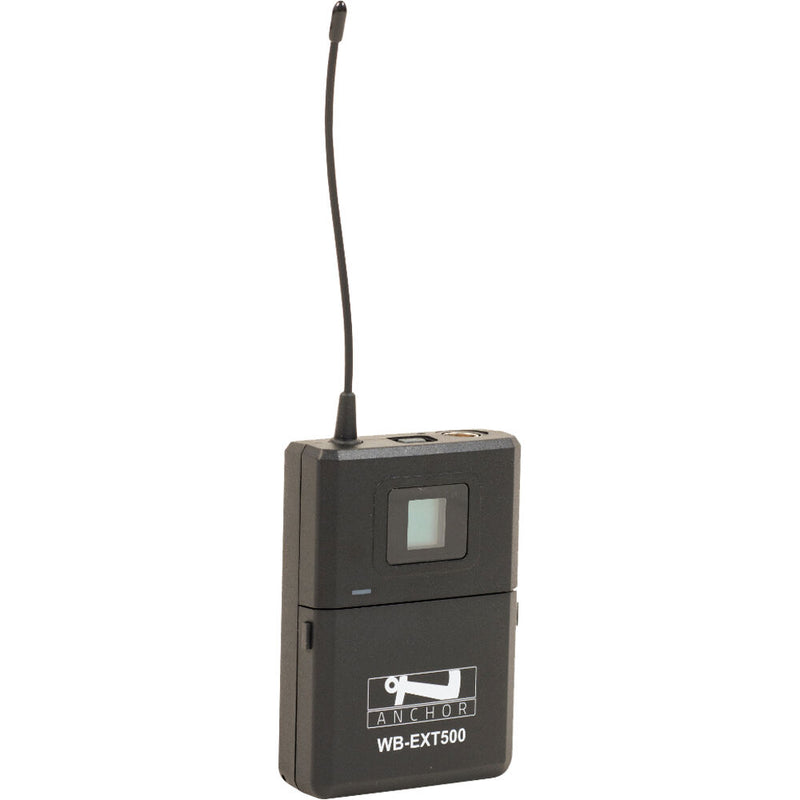

Anchor Audio WB-EXT500 Overview
The Anchor Audio WB-EXT500 Wireless Beltpack Transmitter is a professional-quality UHF wireless transmitter that operates in the 540 to 570 MHz bandwidth. The beltpack is compatible with the WR-EXT500 wireless receiver and features a TA4F connector (mini-XLR) that's compatible with a variety of microphones, including headband, collar, and lapel microphones.
The beltpack transmitter features a power On/Off button, a Mute button, LED indicators, an LCD display for channel number and battery power level, and a battery compartment, which holds two AA batteries. A gain switch sets the audio input and offers -20, -10, and 0 dB settings.
Built-in talk/mute button
Mini-XLR (TA4F) connector is compatible with lapel and headset microphones
Gain switch adjusts audio input (-20, -10, 0 dB)
700 selectable channels
Set interference-free channels by using automatic frequency setting
540 to 570 MHz wireless frequency range
Over 100 dB of dynamic range
Manual, preset, and automatic frequency scan function
UPC: 819941016403
In the Box
- Anchor Audio WB-EXT500 Wireless Beltpack Transmitter with TA4F Plug
- Limited 2-Year Warranty
Anchor Audio WB-EXT500 Specs
| Microphone Connector | Mini-XLR TA4F Connector |
| Display | LCD Display for Channel Number and Battery Power Level |
| Controls | Power Button Power LED: Indicates Power/Battery Level Mute Button: Toggles Between Mute and Unmute SYNC Button: Actuates the Synchronization Process with Receiver |
| Indicators | Green: Ready Flashing Green: The Synchronization Process is Actuated Flashing Red: Low-Battery Power with Less than 10 Minutes of Operation Left Blue: Mute Status |
| Frequency Range | UHF 540 to 570 MHz (Regionally Selected) |
| Channel Selection | SYNC with Receiver |
| RF Power Output | 10 mW Max |
| Frequency Stability | ±0.005% |
| Spurious Emission | >60 dB Below Carrier Frequency |
| Gain | 0, -10, -20 dB Settings |
| Battery | 2.4 V (2 x 1.2 V AA Size Rechargeable Batteries) 3 V (2 x 1.5 V AA Size Batteries) |
| Battery Access | Battery Compartment: 2 x AA Dry or Rechargeable Batteries |
| Current Consumption | 120 mW ±10 mA |
| Dimensions | 3.8 x 2.5 x 1" / 9.7 x 6.4 x 2.4 cm |
| Weight | 0.2 lb / 860 g |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 39812.5 |
| 3-5 | ₹ 39406.25 |
| 5-10 | ₹ 38593.75 |
| 10+ | ₹ 37781.25 |
Bulk discount will be automatically applied during checkout based on quantity.
