Description
Anchor Audio Beacon 2 Overview

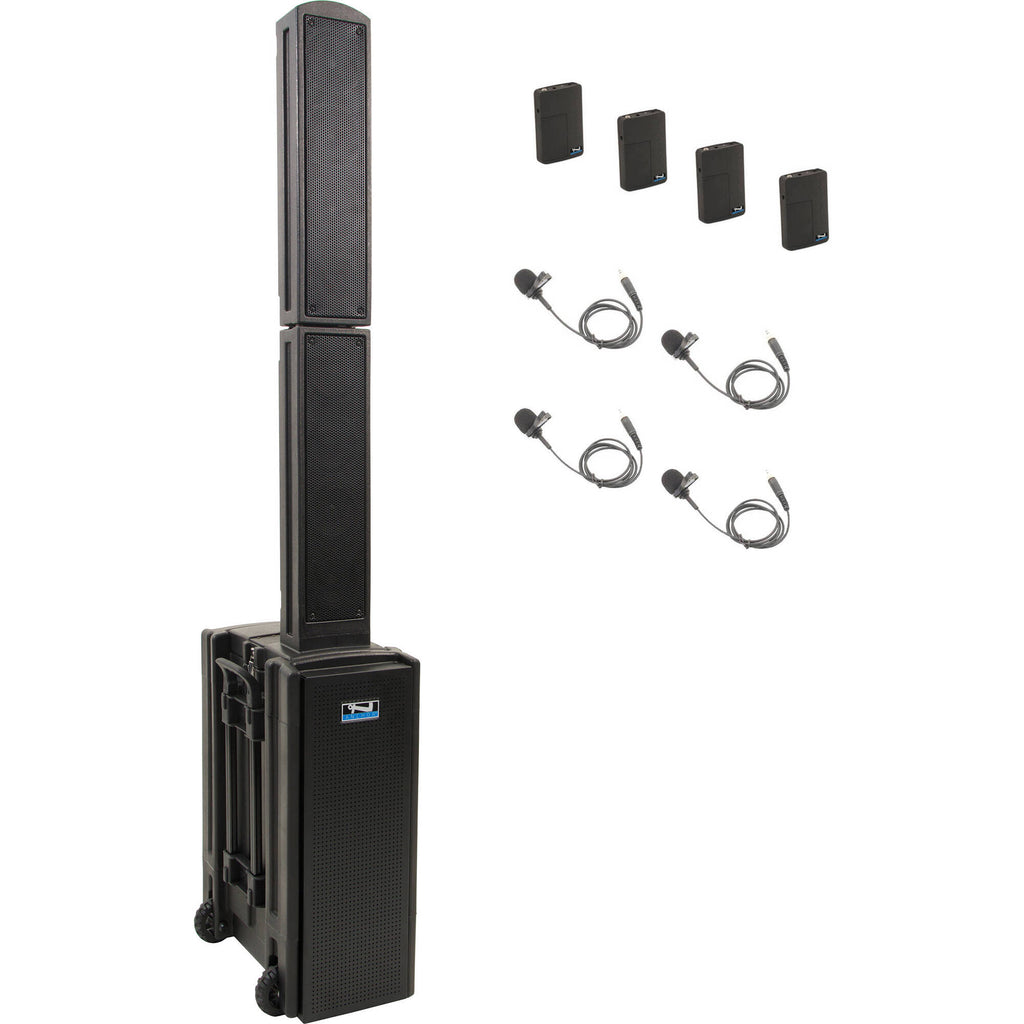

The Anchor Audio Beacon 2 System X4 combines the BEA2-XU4 Beacon 2 portable line array sound system with two dual-channel mic receivers, four WB-LINK beltpack transmitters, and four LM-LINK lavalier microphones. The battery-powered system features Bluetooth and Airlink technology, and provides speakers with the flexibility of using four wireless lavalier mics when presenting for crowds up to 2500 people, in various indoor and outdoor environments.
The Beacon 2 system brings the ease of use and reliability of the AnchorLink wireless technology, which operates on the 1.9 GHz frequency range to ensure a clear signal with reduced interference. Should you need extended sound coverage, the AIR transmitter provides a wireless connection to a companion speaker (available separately) at a distance up to 300' from the Beacon 2 speaker.

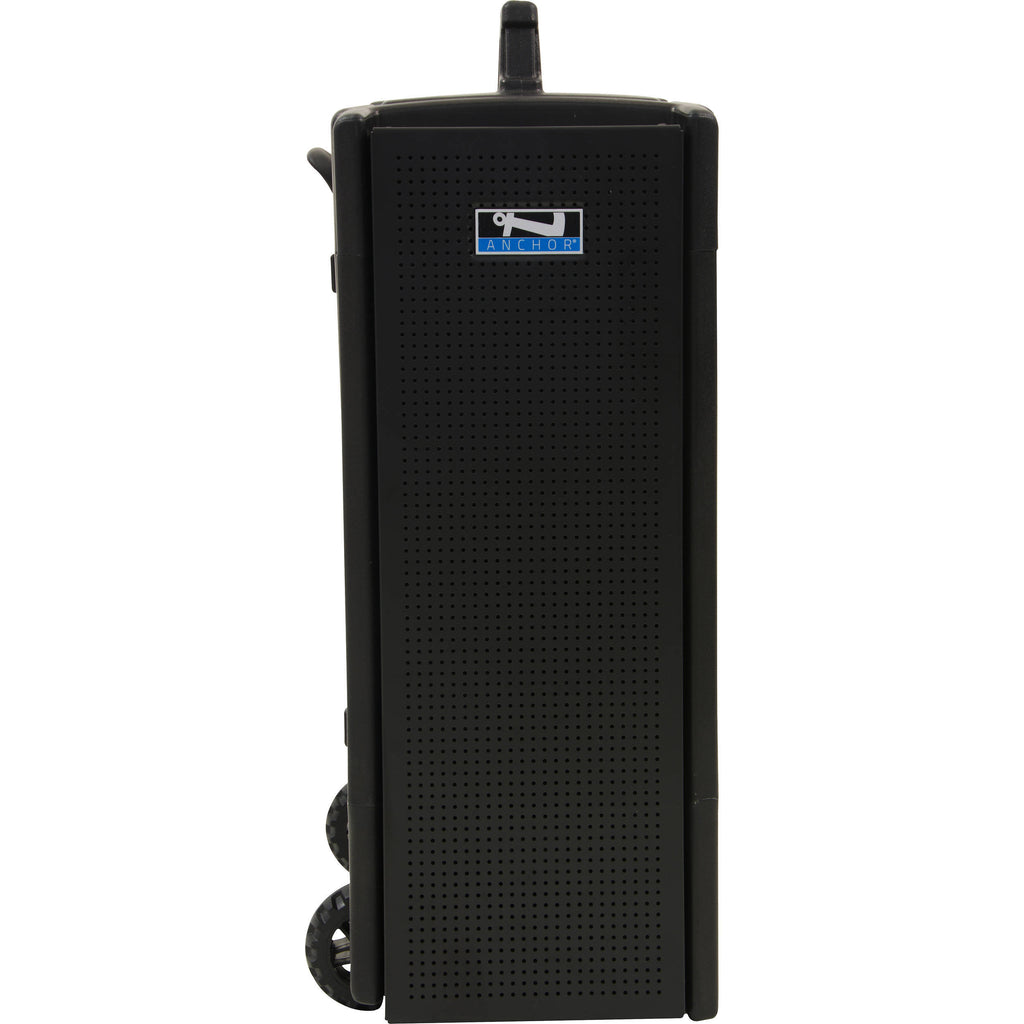

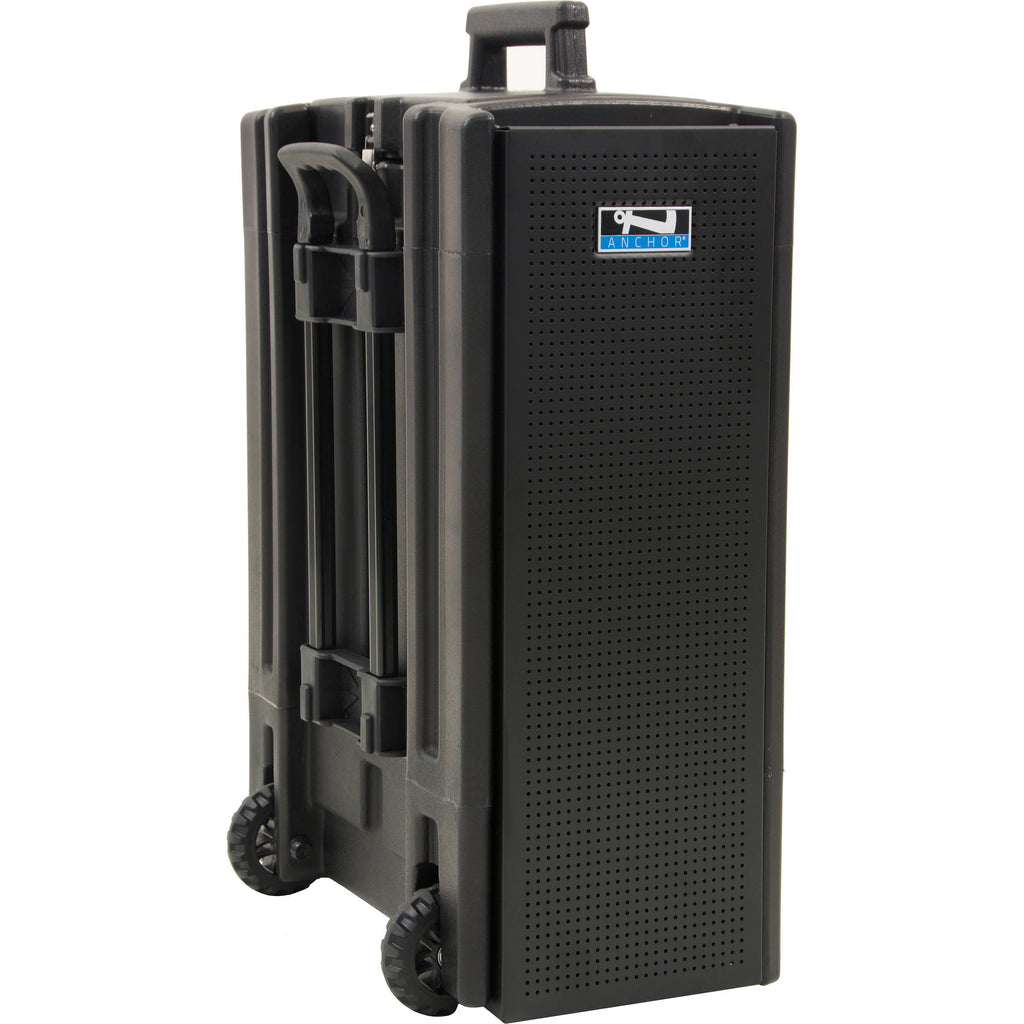

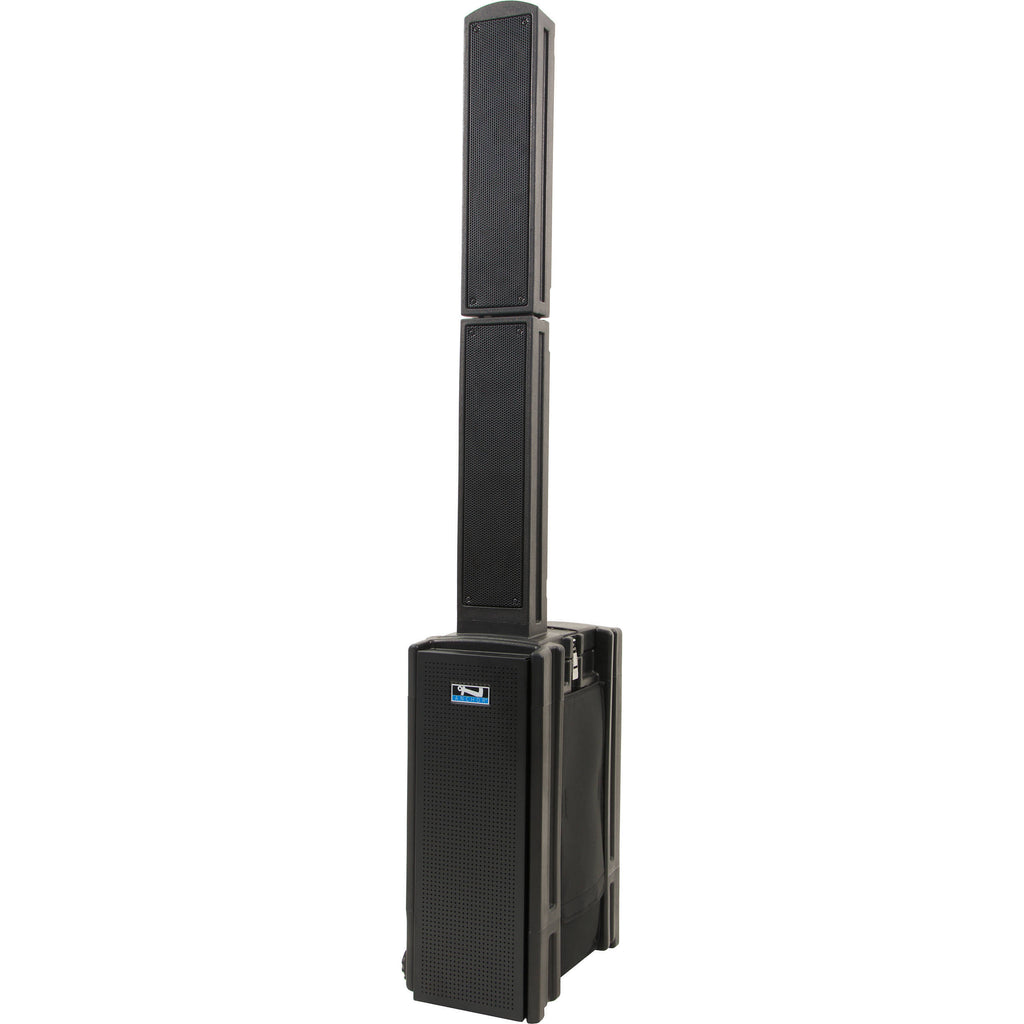

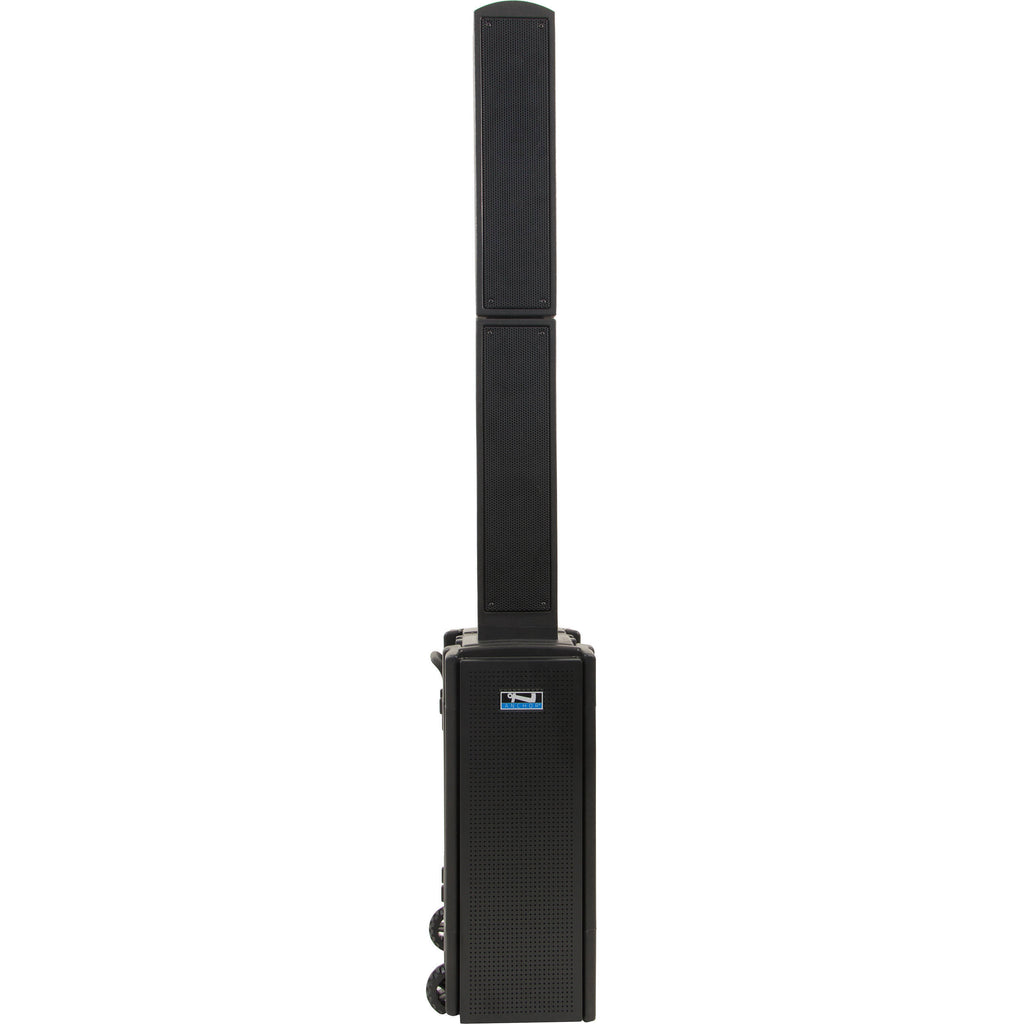

The Anchor Audio BEA2-XU4 is a Beacon 2 portable line array tower with Bluetooth, an AIR wireless transmitter, and two dual wireless microphone receivers. With 150W of rated output power driving eight 4" neodymium speakers and three 8" woofers and a neodymium compression driver to produce 120 dB SPL, it is designed to deliver versatile and powerful amplification for crowds of up to 2500 people in sports venues, educational facilities, and various indoor and outdoor events.
The built-in Bluetooth receiver allows streaming of music from your smartphone, tablet, or laptop. Two XLR-1/4" combo jacks, a 1/4" line input, and a 3.5mm stereo mini jack provide connectivity for wired mics, instruments, line-level sources, and non-Bluetooth devices. Connect up to four wireless mics (available separately) via the two included dual wireless microphone receivers. The balanced 1/4" output can be routed to another PA system or an audio recorder. Integrated mixer functions include volume controls and 2-band equalization.
The supplied AIR wireless transmitter enables cord-free connection to a compatible companion speaker. Power the Beacon 2 via AC power or the built-in rechargeable lithium-ion batteries, which offer approximately six to eight hours of operating time on a single charge. The integrated carry handle and heavy-duty rolling wheels simply transport of the system.
The Anchor Audio WB-LINK is a wireless bodypack transmitter compatible with sound and PA systems equipped with AnchorLink Series receivers. It operates in the less-populated 1.9 GHz frequency range with automatic frequency hopping to deliver a clear signal with reduced interference, at a range up to 300'.
Pairing the WB-LINK to your sound system is a quick and easy one-time operation done by pressing just two buttons, and doesn't have to be repeated every time you turn on your system. The unit is equipped with a 3.5mm input connector and accepts AnchorLink Series lavalier, headset, earset, and collar mics.
The WB-LINK features volume and mute buttons, which enable you to conveniently mute and adjust the volume of your microphone without having to go to your speaker. The transmitter can operate up to eight hours on two AA batteries.
- 1.9 GHz wireless frequency range�a less-populated frequency band for reduced signal interference
- Automatic frequency hopping ensures a clear transmission without having to manually change the channel
- 300� line-of-sight wireless range
- 3.5mm microphone input connector
- Volume and mute control on the microphone
- One-time pair function allows you to pair your mic with your system once without having to repeat the operation
- Runs up to eight hours on two AA batteries
- Bigfoot
- Beacon
- Liberty
- Go Getter
- MegaVox
- MiniVox
- AN-Mini
- AN-1000X+
- AN-130+
- CouncilMAN
- Acclaim
- CM-LINK collar mic
- EM-LINK Ultralite earset mic
- HBM-LINK headset mic
- LM-LINK lavalier mic
Ideal for speakers who prefer the hands-free convenience of a wearable microphone, the Anchor Audio LM-LINK is a lavalier mic with a 3.5mm connector for use with the AnchorLink Series WB-LINK bodypack transmitter. It features a cardioid polar pattern designed to minimize unwanted feedback when using the mic near a speaker. The LM-LINK ships with a clip and a foam windscreen.
Items Included
- Anchor Audio BEA2-XU4 Beacon 2 Portable Line Array Tower with Bluetooth, AIR Transmitter & Two Dual Mic Receivers
- Limited 6-Year Warranty on Line Array
- Limited 2-Year Warranty on Battery
- 4 x Anchor Audio WB-LINK Wireless Bodypack Transmitter (1.9 GHz)
- Belt Clip
- Limited 2-Year Manufacturer Warranty
- 4 x Anchor Audio LM-LINK Cardioid Lavalier Microphone for AnchorLink Series Transmitter (3.5mm Connector)
- Clip
- Foam Windscreen
- Limited 2-Year Manufacturer Warranty
Not Included
- Essential Batteries
Additional Resources
Anchor Audio BEA2-XU4 Beacon 2 Portable Line Array Tower with Bluetooth, AIR Transmitter & Two Dual Mic Receivers
| Amplifier Power Rating |
150 W (AC Power)
125 W (Battery Power) |
| LF Driver |
3x 8" / 20.3 cm Woofer
|
| Audio I/O |
2x Combo XLR-1/4" TRS Balanced Mic Input
1x 1/4" TS Unbalanced Line Input 1x 1/8" / 3.5 mm TRS Unbalanced Line Input 1x 1/4" TRS Balanced Line Output |
| Wireless Transmission |
1.9 GHz
|
| Amplifier Power Rating |
150 W (AC Power)
125 W (Battery Power) |
| Full-Range Driver |
8x 4" / 10.2 cm
|
| LF Driver |
3x 8" / 20.3 cm Woofer
|
| Magnet |
Neodymium
|
| Frequency Response |
60 Hz to 15 kHz ±3 dB
|
| Maximum SPL |
120 dB
|
| Input Sensitivity |
Lo-Z Mic Input:
-52 dBV / 2.5 mVrms Hi-Z Mic Input: -43 dBV / 7.5 mVrms Aux Input: -14 dBV / 200 mVrms |
| I/O Impedance |
Hi-Z Input:
10 Kilohms Low-Z Input: 1 Kilohms Line Output: 600 Ohms |
| Audio I/O |
2x Combo XLR-1/4" TRS Balanced Mic Input
1x 1/4" TS Unbalanced Line Input 1x 1/8" / 3.5 mm TRS Unbalanced Line Input 1x 1/4" TRS Balanced Line Output |
| Phantom Power |
+12 V
|
| Wireless Transmission |
1.9 GHz
|
| Max Wireless Range |
RF Wireless:
300' / 91.4 m (Line of Sight) |
| RF Frequency Band |
902 to 928 MHz
|
| Bluetooth Power Class |
1
|
| Battery Type |
2x Built-In Rechargeable 12 V Lithium-Ion
|
| Approximate Battery Life |
8 Hours
|
| Internal Battery Capacity |
7 Ah
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Consumption |
250 W (Max)
|
| Environmental Resistance |
No
|
| Dimensions |
28 x 11 x 18.5" / 71.1 x 27.9 x 47 cm (Collapsed)
71.5 x 11 x 18.5" / 181.6 x 27.9 x 47 cm (Full Assembly) |
| Weight |
43 lb / 19.5 kg
|
| Package Weight |
55.5 lb
|
| Box Dimensions (LxWxH) |
32.4 x 21 x 15.5"
|
