| ₹ 971.52 includes GST and import duties. | |
| B2B customers can avail ₹ 148.16 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

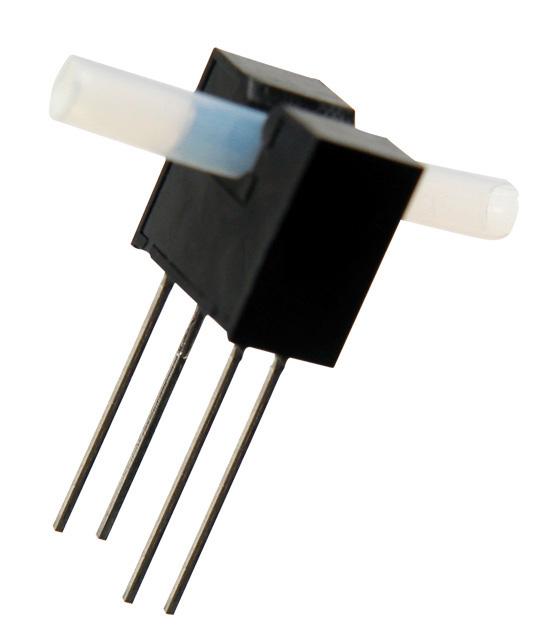

The OPB350W250Z is a Liquid Level Sensor with opaque plastic housing enhances ambient light rejection, 26AWG wires are remote mountable. This PCB mounting sensor is designed to work with wired assembly for 1/4-inch outside diameter clear tubing with mounting tabs. When output reference circuitry is added, multiple output states such as "fluid present", "no fluid present" and "no tube present" can be recognised. Clear liquid present causes the phototransistor to sink the maximum current, while dark liquid present causes it to sink the minimum current. As bubbles pass through the tube, the signal will vary between the "liquid present" and "no liquid" states. If no tube is present, the phototransistor sinks current between the dark fluid and clear fluid states. Suitable for non-contact fluid sensing, IV fluid, oils and other petroleum products, coloured fluids, toner fluids and water.
- 100mW Power dissipation
- -40 to 85°C Operating temperature range
Sensing & Instrumentation
Other details
| Brand | TT ELECTRONICS / OPTEK TECHNOLOGY |
| Part Number | OPB350W250Z |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 952.09 |
| 3-5 | ₹ 942.37 |
| 5-10 | ₹ 922.94 |
| 10+ | ₹ 903.51 |
Bulk discount will be automatically applied during checkout based on quantity.
