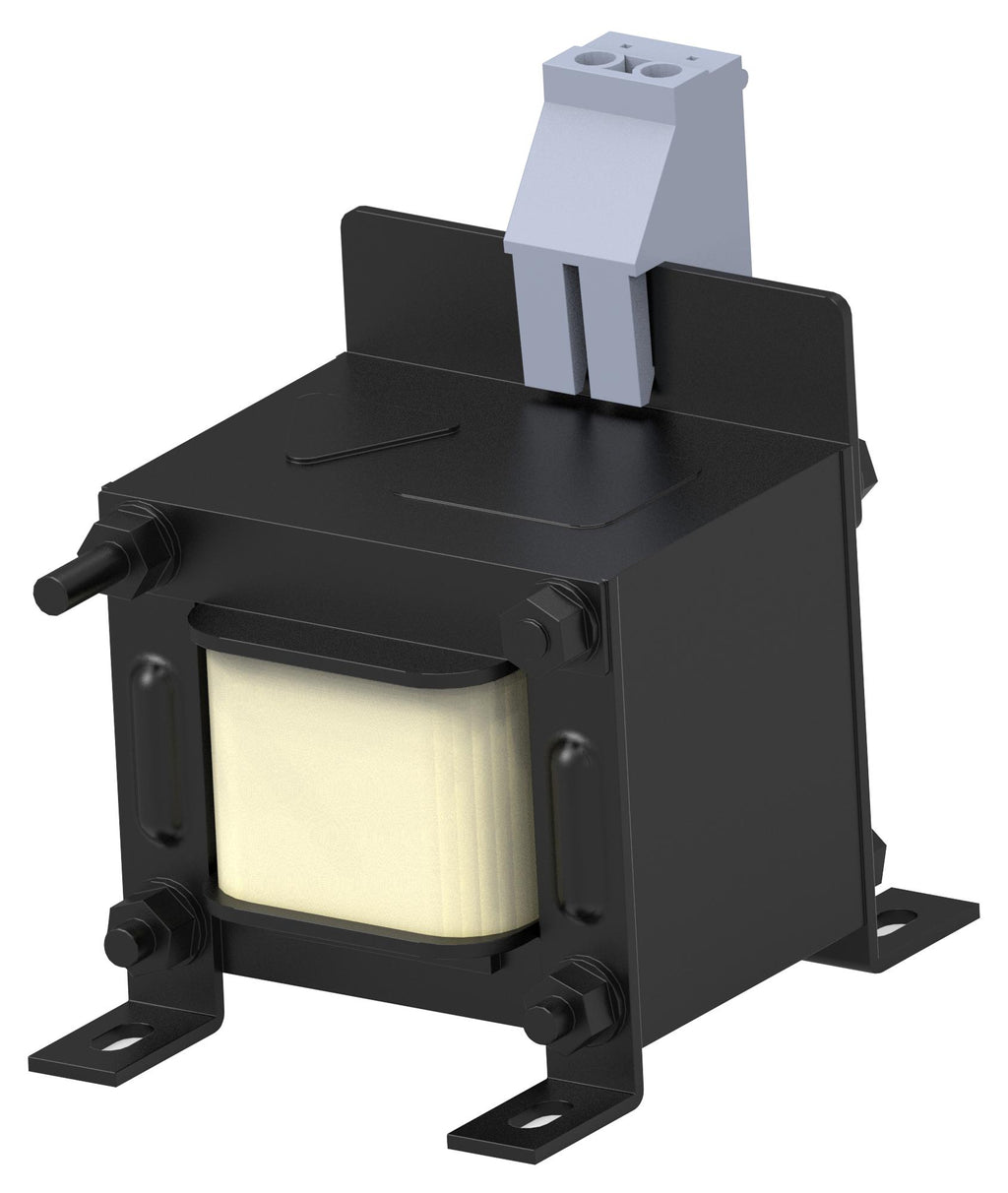

2432408-1 is a RPQ series single phase line reactor. It is designed to help protect motor drives from power line disturbances and disruptions from the line side as well as the harmonics distortions from AC/DC motor drives. Design corresponding to EN61558-2-20, EN60076-6, UL61800-5-1. Applications include power quality applications, motor drives and various adjustable speed drive system, harmonic reduction and process automation equipment.
- 2A rated current, 0.6HP rated power, 14.642mH inductance, connector termination
- Copper windings, low ripple
- Helps protect motor drive electronics
- Limitations of inrush currents
- Reduction of nuisance tripping caused by power line voltage spikes
- Nominal/rated voltage of 230/250VAC
- Operating frequency is 50Hz, impedance is 4% of 230VAC at rated current, 50Hz frequency
- High potential test voltage of 2000VAC
- Operating temperature range from -45°C to 100°C, climatic category 45/100/21
- Natural cooling (AN), IP00 protection category, design in accordance with UL 508
Product details
| Supply Voltage Max:
250VAC
|
| Product Range:
CORCOM RPQ Series
|
| Power Consumption:
0.6hp
|
| Impedance:
-
|
| Phase Type:
1 Phase
|
| Output Current:
2A
|
| Inductance:
14.642mH
|
| Length:
2.26"
|
| Width:
2.95"
|
| Height:
2.08"
|
Other details
| Brand |
CORCOM - TE CONNECTIVITY |
| Part Number |
2432408-1 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
