Description

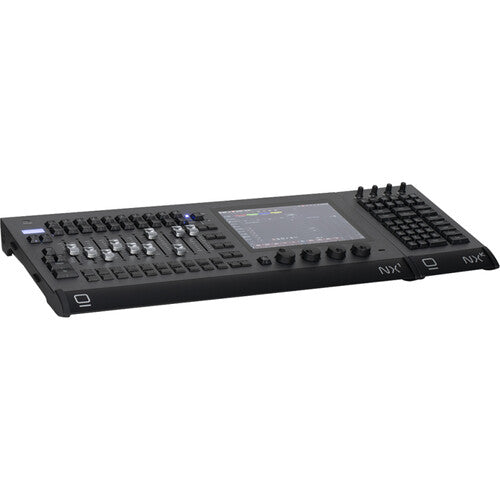

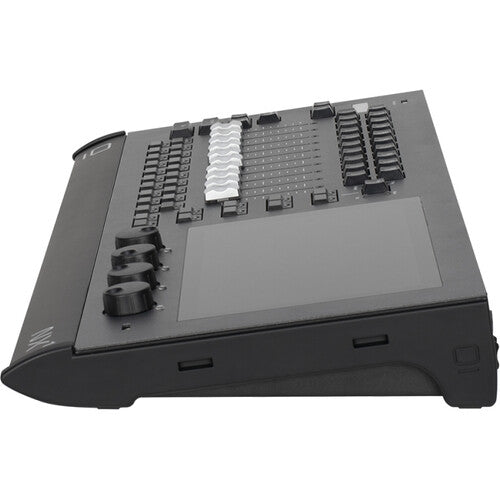

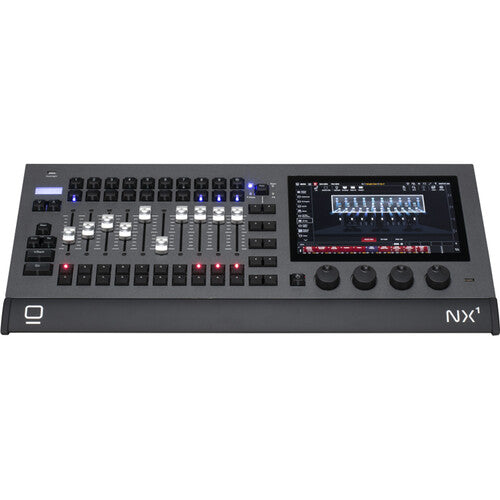

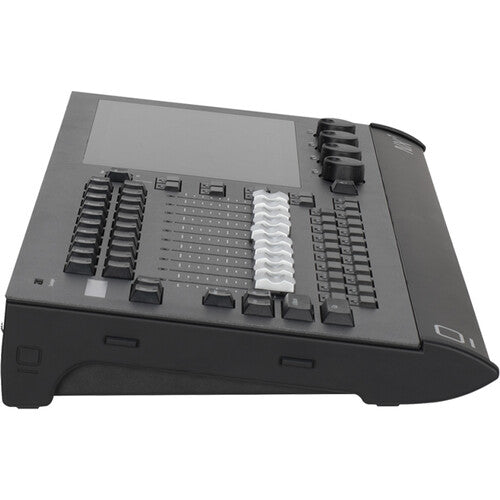

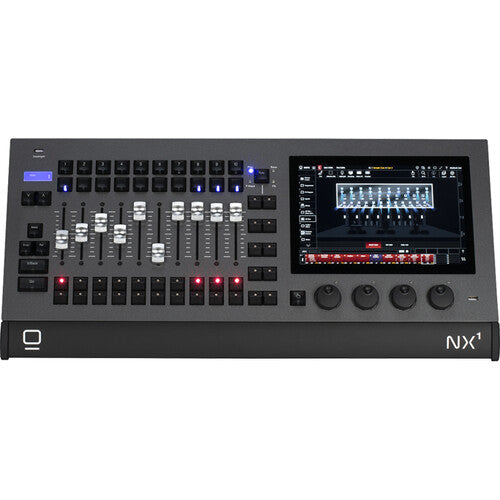

Obsidian NX1-16 Overview
Lighting professionals in search of a compact and highly portable lighting controller will be impressed with the NX1-16 ONYX Lighting Controller with Motorized Faders from Obsidian. The NX1-16 is a professional lighting console with a comprehensive, feature-packed control surface that includes an ONYX Essential license, which provides control of up to 16 universes. It offers four DMX connectors and dual Gigabit network ports for up to 16 universes of Art-Net, sACN, or ONYX X-Net protocol.
Portable and Compact Fully Featured Lighting Console
As a member of the innovative ONYX operating system, the NX1-16 has expanded capabilities. The NX1-16 includes a high-brightness 10.1" HD multi touchscreen, four assignable parameter encoders, 10 full motorized playback faders, four freely assignable buttons, plus an extra playback and function key hybrid array. A dedicated Master Go section rounds out the efficient front panel design with go, pause, snap, and release options.
Additional Details
- Intel processor, high speed NVMe SSD drive, and 16GB of DDR5 RAM
- IP65 locking power in with the included power cable
- Four digital rotary encoders with push function and status LED for fixture parameter control
- Virtual keypad control
- Magnetic alignment system

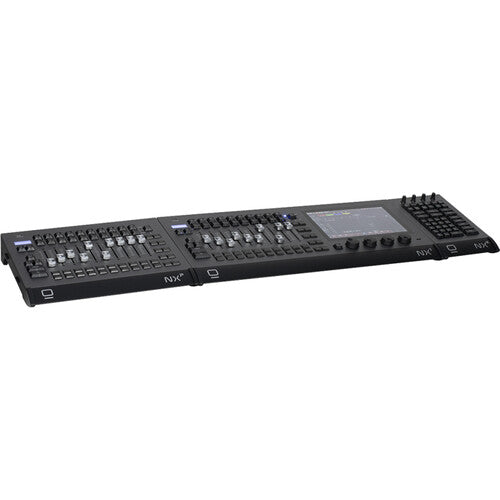

- Expandable with the NXK keypad and the NXP motorized playback wing
- Supports additional touch monitor
- Quiet thermal design using advanced copper heat pipe coolers
- Weighs 17.8 lb
UPC: 810008265994
Items Included
- Obsidian NX1-16 ONYX Lighting Controller with Motorized Faders
- LED USB Desk Lamp
- Dust Cover
- IP65 Locking Power Cable
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Obsidian NX1-16 Specs
General
| Compatibility |
ONYX Lighting Systems
|
Display
| Panel Type |
TFT LCD
|
| Display Size |
10.1"
|
| Native Resolution |
1920 x 1200
|
| Touchscreen |
Yes
|
Inputs/Outputs
| USB I/O |
4 x USB-A 3.0 / 3.1/3.2 Gen 1 Female Input/Output
|
| Video I/O |
1x HDMI Output
|
| Audio I/O |
1x 1/8" / 3.5 mm TRS Mic Input
1x 1/8" / 3.5 mm TRS Output |
| Internal Storage |
Yes
|
Power
| Power Source |
AC Input (Included)
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Consumption |
104 W
|
Physical
| Dimensions |
25 x 11.8 x 2.8" / 636 x 298.5 x 71 mm
|
| Weight |
17.9 lb / 8.1 kg
|
Packaging Info
| Package Weight |
24.09 lb
|
| Box Dimensions (LxWxH) |
29.3 x 17.1 x 9.2"
|
