Description
ChamSys MQ250M Overview
- 1Description
- 264 Universes Direct from the Console
- 3Motorization
- 4Playback Encoders
- 5Illumination and Customization
- 6Compatibility

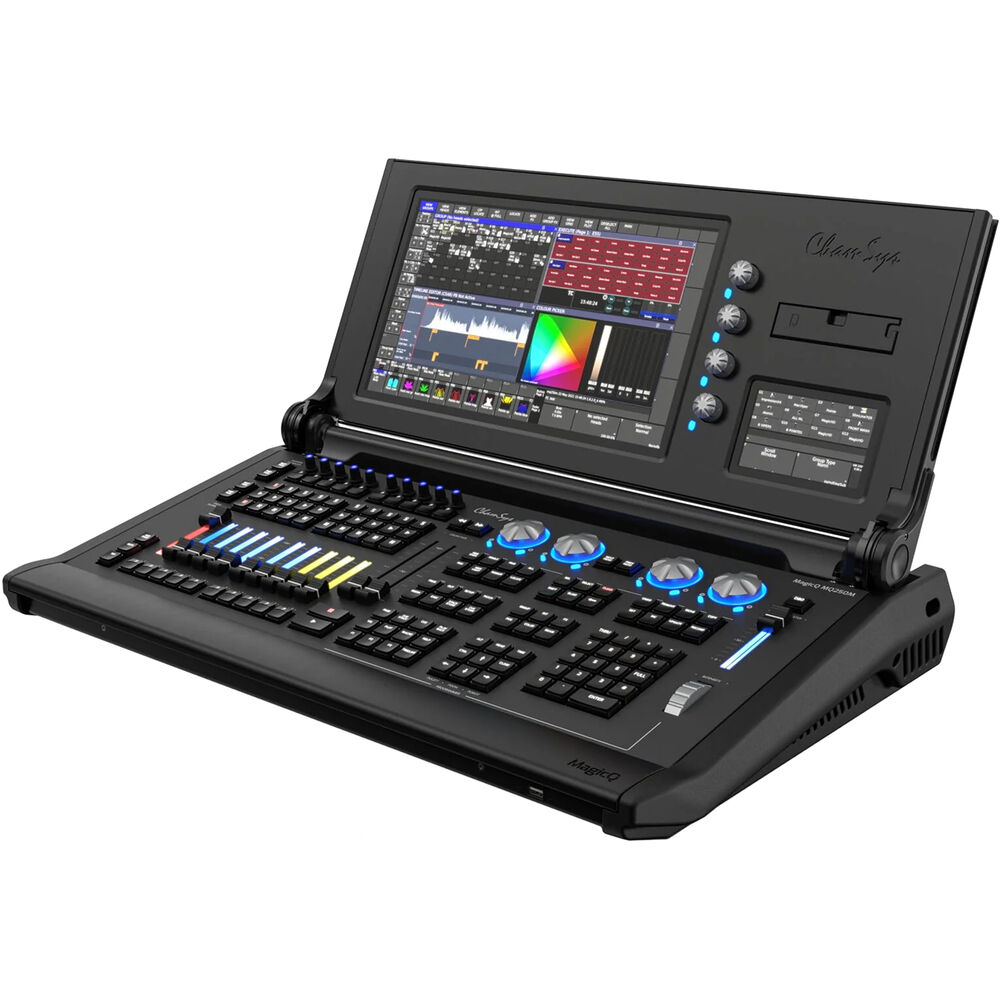

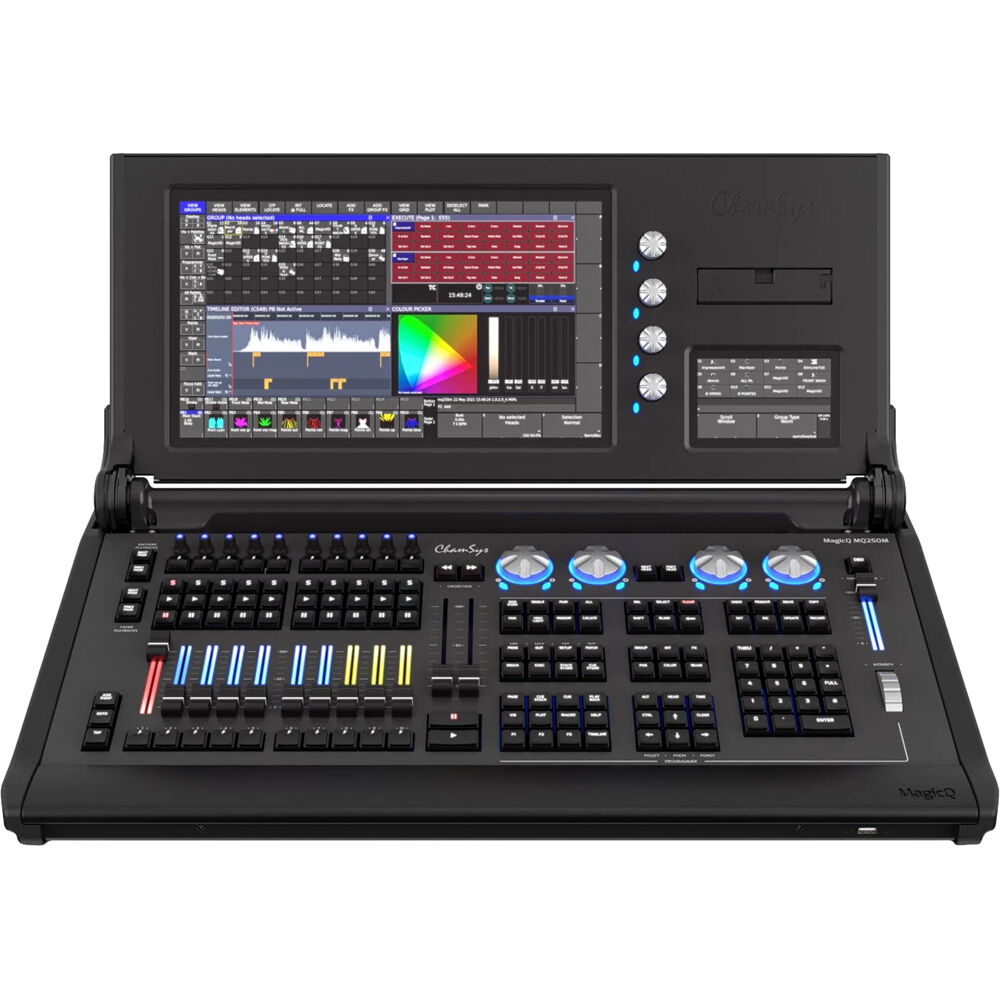

Control your stage, studio, or live entertainment lighting system with the MagicQ MQ250M Stadium Console with 64-Universe Support and Flight Case from ChamSys. This professional stadium/theater lighting control console can control up to 64 DMX universes and features 10 motorized fader playbacks, 10 encoder playbacks with RGB illumination, dual motorized crossfaders, and backlit buttons. It also features a built-in 15" multitouch display and an additional 5" encoder touch display. A separately available upgrade allows you to expand the console capabilities to support 128 universes.
The console features four direct 5-pin DMX outputs and four network ports for connectivity and management, and you can output your console management display using a DisplayPort for an external monitor. There are also audio inputs/outputs, MIDI input/output ports, a 10Scene port, and LTC timecode ports. Its built-in UPS provides a battery-powered safety feature for when power is suddenly interrupted. The console includes two desk lights, a DisplayPort-to-HDMI cable, and a flight case.
64 Universes Direct from the Console
On the MQ250M, all universes of DMX are available directly through the network ports on the rear of the console over industry standard lighting protocols�sACN, Art-Net, and Pathport�without the need for additional processing nodes. With its built-in universal power supply (UPS), the MQ250M is a complete 64-universe standalone all-in-one lighting-control solution. An upgrade to 128 universes is available separately.
Motorization
Thanks to its motorized functionality, the playback section can be used for multiple purposes with shortcut buttons to change functions. With 10 motorized faders, 10 playback encoders per bank, and up to six banks, a total of 180 playbacks can be accessed at the touch of a button.
The MagicQ MQ250M supports many different fader modes enabling the playback section to be used in a wide variety of applications:
- Programmer modes give access to intensities for each patched fixture, to intensities of groups of fixtures, or to individual channels of a fixture. The selected modes enable instant access to the intensities or channels of the currently selected fixtures.
- Master modes provide instant master control of individual fixtures or groups of fixtures without having to preprogram masters�for those live moments when lights are flaring in cameras or key lights need modifying.
- Dual 100mm manual crossfaders together with the prominently placed large Go and Back buttons provide the ultimate theatre control experience.
Playback Encoders
A multi-array of different functions can be assigned to the playback encoders with full legending directly above on the display presenting the current function to the user. The playback encoders can be set to controlling intensity, LTP channels, FX size, FX speed, rate and time. They can also can control cue stacks of their own, be tied to the fader playback below, or even control a whole bank or page of playbacks.
Illumination and Customization
The MQ250M lights the way with backlit keys, illuminated fader tracks and encoders, and glowing pockets. Together with updated graphics, this gives Lighting Designers freedom to visibly configure the console for their needs. Each playback fader track and playback encoder top has full RGB illumination enabling its function to be clearly indicated. Users can select standard functions, or customize each Cue Stack individually, for example, to separate the main cues from bump cues.
Compatibility
The MagicQ MQ250M is built on stadium software, which has been proven to work for 200-universe shows with thousands of fixtures. Show files are fully compatible between MQ250M, Stadium Connect, and all other ChamSys consoles making it easy to move between consoles. Unique to ChamSys, show files are both forward and backward compatible, so no need to worry about software versions.
UPC: 781462222352
In the Box
- ChamSys MagicQ MQ250M Stadium Console with 64-Universe Support and Flight Case
- 2 x Dual-Color Desk Light
- Dust Cover
- Neutrik powerCON TRUE1 Power Cable
- DisplayPort to HDMI Cable
- Flight Case
- Limited 2-Year Manufacturer Warranty
Table of Contents
- Description
- 64 Universes Direct from the Console
- Motorization
- Playback Encoders
- Illumination and Customization
- Compatibility
ChamSys MQ250M Specs
General
| Display |
1 x 15" HD Multitouch Display
1 x 5" Attribute/Execute Display |
| Buttons and Controls |
Motorized Playbacks: 10
Encoder Playbacks: 10 Total Number of Playbacks: 20 (10+10) Intensity Wheel: 1 Attribute Encoders: 8 Dual Manual Crossfaders: Yes |
| Software Specifications |
Max Number of Universes: 64
Max Number of DMX Channels: 32,768 Max Number of Fixtures Supported: 32,768 Max Number of Cues: 5000 Max Number of Cue Stacks: 2000 Max Number of Groups: 5000 Max Number of Palettes: 4096 Number of Media Server Layers Supported: 50 (Each Different Content) Numbers of Shows: Virtually Unlimited (via 500 GB SSD) |
Display
| Panel Type |
Not Specified by Manufacturer
|
| Display Size |
Not Specified by Manufacturer
|
| Touchscreen |
Yes
|
Inputs / Outputs
| USB I/O |
6 x USB-A Female Input/Output
|
| Video I/O |
1x DisplayPort Output
|
| Audio I/O |
1x 1/8" / 3.5 mm Input
1x 1/8" / 3.5 mm Output |
| Media/Memory Card Slot |
Yes
|
| Other I/O |
4 x 5-Pin XLR DMX
4 x RJ45 Ethernet 1 x 3-Pin LTC Input, Female 1 x 3-Pin LTC Output, Male 1 x MIDI Input 1 x MIDI Output 1 x 5-Pin Terminal Block 10Scene 2 x 3-Pin Lamp |
| Output Resolution |
DisplayPort: 1920 x 1200
|
| Wireless |
Yes
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: MagicQ Functionality: Remote Control |
Power
| Power Source |
Plug-In Power (Included)
|
| AC Input Power |
90 to 240 VAC, 50 / 60 Hz
|
| UPS |
Yes, 12V Lead-Acid Battery with Fuse
|
| Power Input |
Neutrik powerCON TRUE1
|
Physical
| Dimensions |
26.8 x 16.4 x 6.3" / 68 x 41.6 x 15.9 cm (Console)
31.9 x 20.9 x 12.6" / 81 x 53 x 32 cm (Flight Case) |
| Weight |
28.7 lb / 13 kg (Console)
57.3 lb / 26 kg (Console + Flight Case) |
