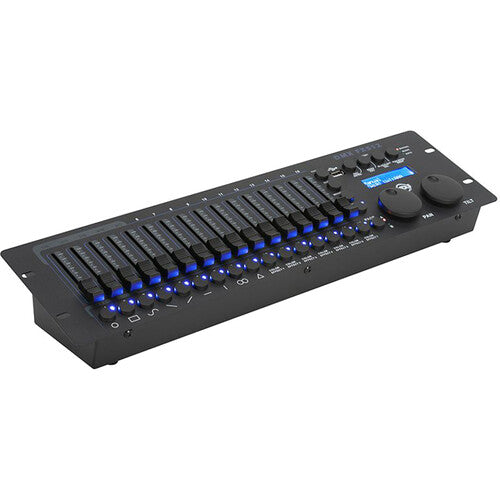

American DJ DMX FX512 Overview
Great for lighting designers and light board operators, the American DJ DMX FX512 is an innovative rackmount DMX controller, well suited for professional lighting applications such as houses of worship, nightclubs, stages, and event production. The DMX FX512 provides precise control over a complete universe (512 channels) and can manage up to 32 intelligent fixtures with 18 channels each. Create captivating light shows with 32 programmable scenes and 32 chases, each up to 100 steps, running up to 5 chases simultaneously.
The soft-patchable faders and control wheels provide flexibility, while 16 built-in effect generators offer dynamic lighting possibilities. Additionally, you can use RDM to remotely access and configure DMX addresses and channel modes for your fixtures, eliminating the need for physically reaching each device. The intuitive control interface features a digital display, 16 channel control faders, dedicated pan/tilt wheels, and 16 effects/fixture select buttons. A built-in mic with digitally adjustable sound sensitivity enhances the interactive experience.
- 19� rackmount DMX controller (3 RU)
- DMX512 and RDM protocol
- 512 DMX channels
- Control up to 32 intelligent fixtures, up to 18 channels each
- 32 chases, each up to 100 steps, can run 5 chases simultaneously
- 32 programmable scenes
- Soft-patchable faders and control wheels
- 16 built-in effects: 9 for moving light and 7 for RGB LED fixtures
- USB for data backup and firmware update
- DMX512 and RDM
- RDM to set the DMX addresses of the fixtures from controller
- 16 channel control faders
- Dedicated pan/tilt wheels (user assignable)
- 16 effects/fixture select buttons
- Sound sensitivity digitally adjustable (0 to 100%), built-in mic
- With wired digital communication network
Items Included
- American DJ DMX FX512 Lighting Console
- 9 VDC Power Adapter
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
American DJ DMX FX512 Specs
| Compatibility |
Not Specified by Manufacturer
|
| Panel Type |
LCD
|
| Display Size |
Not Specified by Manufacturer
|
| Touchscreen |
No
|
| USB I/O |
1 x USB-A 2.0 Female Input/Output
|
| Media/Memory Card Slot |
Yes
|
| Connector |
1 x 5-Pin DMX XLR Output
|
| Power Source |
AC Adapter with Power Brick (Included)
|
| DC Input Power |
9 to 12 VDC at 300 mA
|
| Power Consumption |
1.5 W
|
| Operating Current |
165 mA
|
| Certifications |
cETLus, CE
|
| Operating Temperature |
32 to 113°F / 0 to 45°C
|
| Operating Humidity |
75%
|
| Storage Temperature |
77°F / 25°C
|
| Color |
Gray
|
| Dimensions |
19 x 5.3 x 2.7" / 48.3 x 13.5 x 6.9 cm
|
| Weight |
4.7 lb / 2.1 kg
|
| Package Weight |
5.72 lb
|
| Box Dimensions (LxWxH) |
22.9 x 6.8 x 4.7"
|
