Description

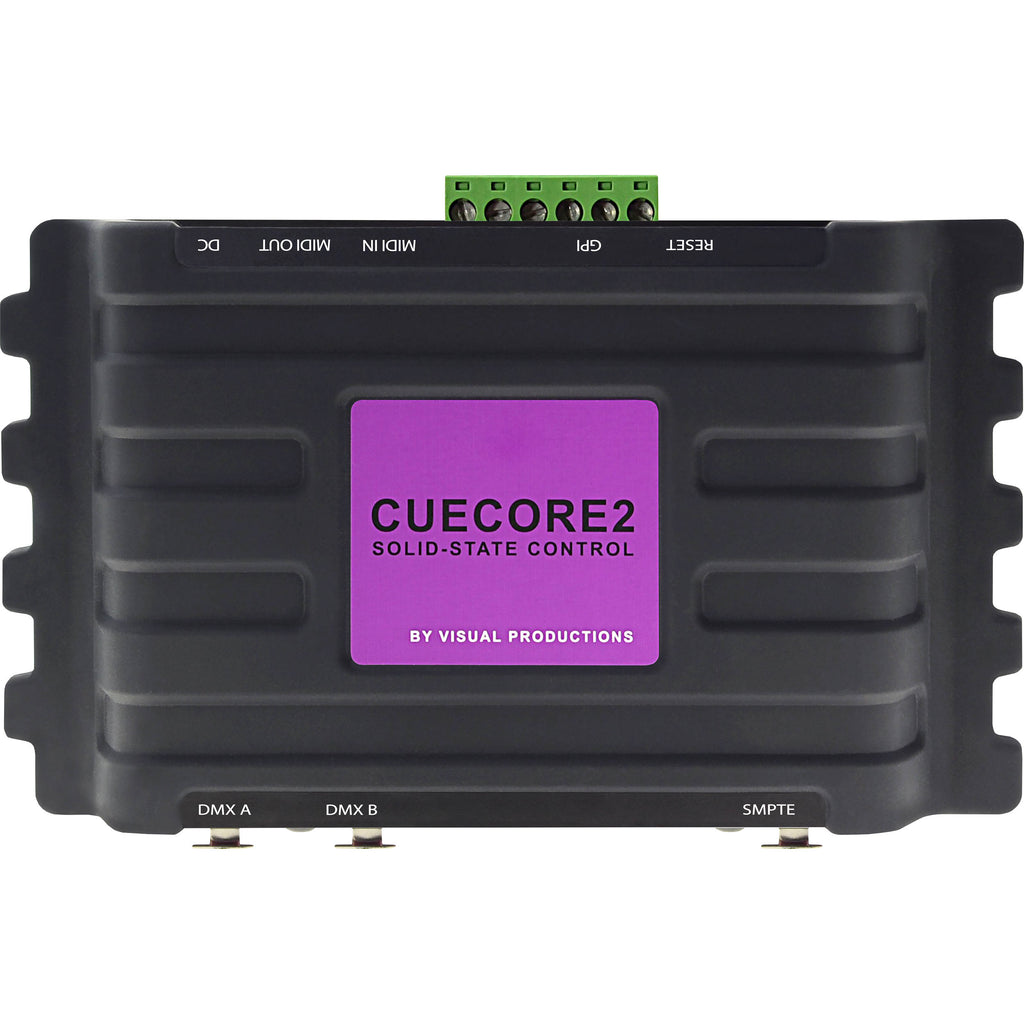

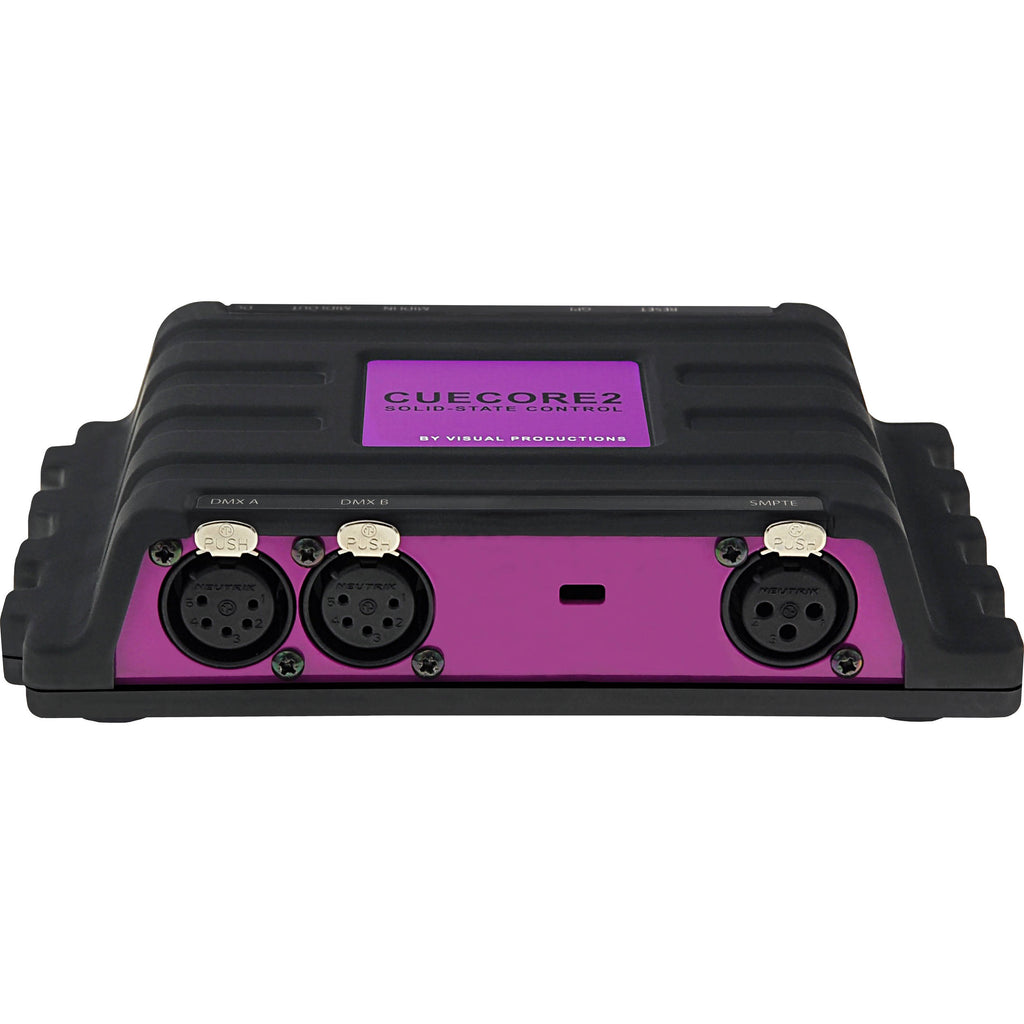

Visual Productions CUECORE2 Overview
Looking for a compact yet sturdy DMX lighting interface that's designed for professional and architectural use? Check out the Visual Productions CueCore2, a two-universe lighting controller for permanent installations. The unit is completely solid-state with no moving parts, allowing for secure and maintenance-free operation.
The CueCore2 features onboard flash memory that allows you to record and store DMX shows. Playback can be fully automated or triggered by several IP based protocols, GPI, MIDI, or an internal scheduler. Programming is done through a dynamic web interface and will control a total of 1024 channels. The CueCore2 features a software bundle including CueluxPro, vManager, and Kiosc.
- Ethernet port

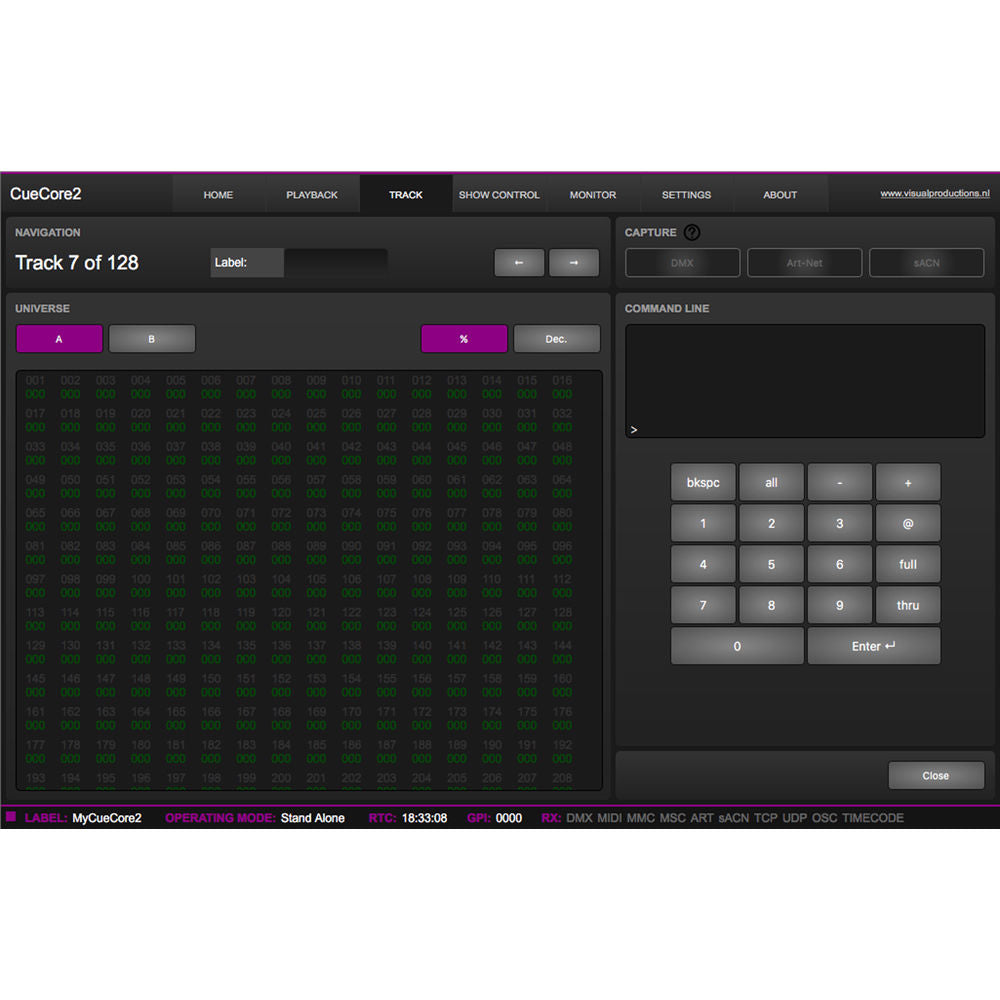

- Programming via web-interface
- Two DMX512-A (ANSI E1.11) port (5-pin, opto-isolated, bidirectional)
- MIDI IN + OUT (including MTC, MSC, MMC)
- SMPTE timecode
- Four-connector GPI port (contact-closure or 0-10V)
- Real-time clock with battery
- Art-Net, sACN, KiNet
- HTTP, TCP, UDP, and OSC
- Protocol for synchronizing multiple cores
- 9-24 VDC 500mA (PSU included)
- Power over Ethernet (class I)
- Desktop, DIN Rail or 19" rack mounted (optional adapter)
- Kensington lock
- Bundled with CueluxPro, vManager, and Kiosc software

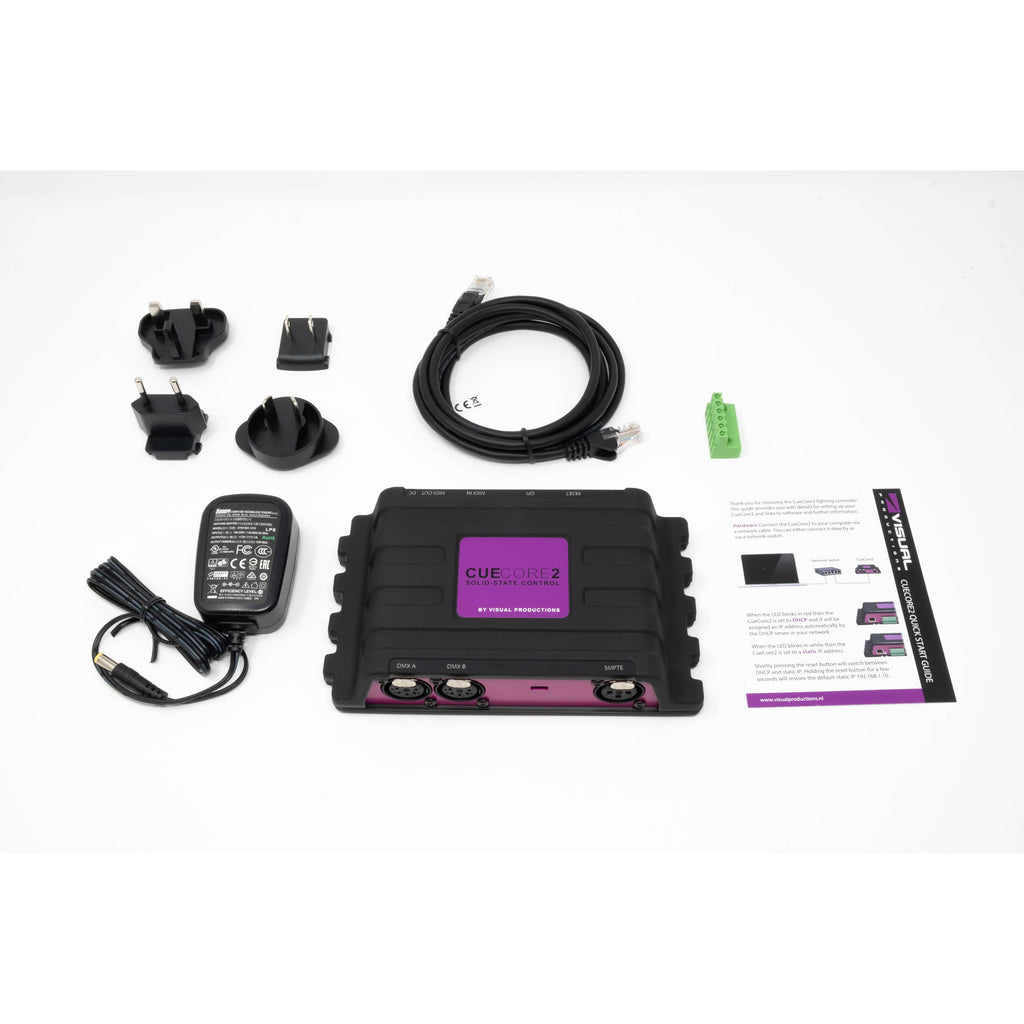

In the Box
- Visual Productions CueCore2 Multi-Protocol Architectural Lighting Controller
- Power Adapter
- Software Bundle
- Limited 2-Year Warranty
Visual Productions CUECORE2 Specs

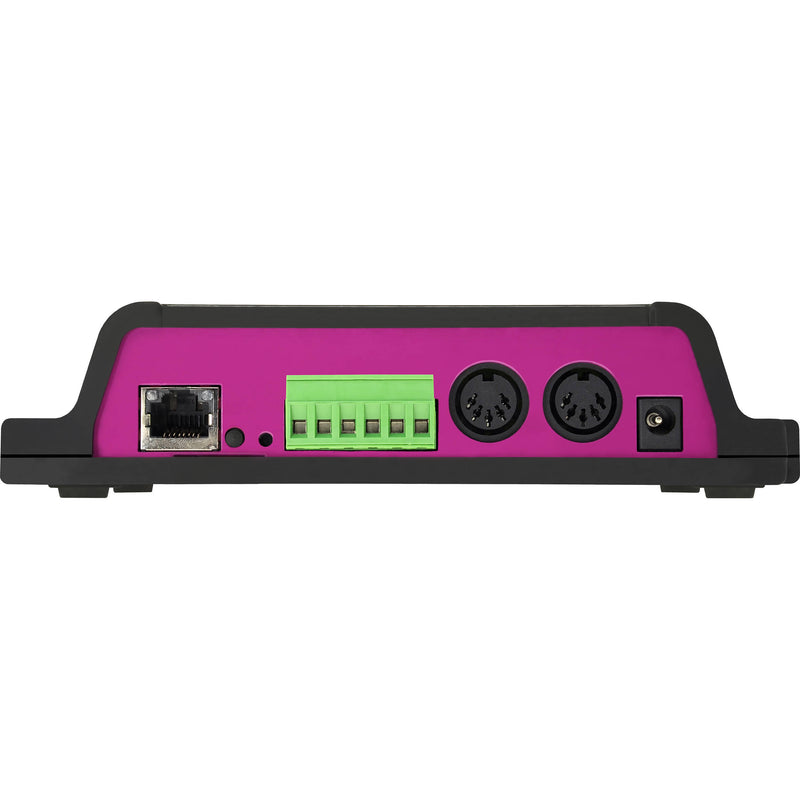

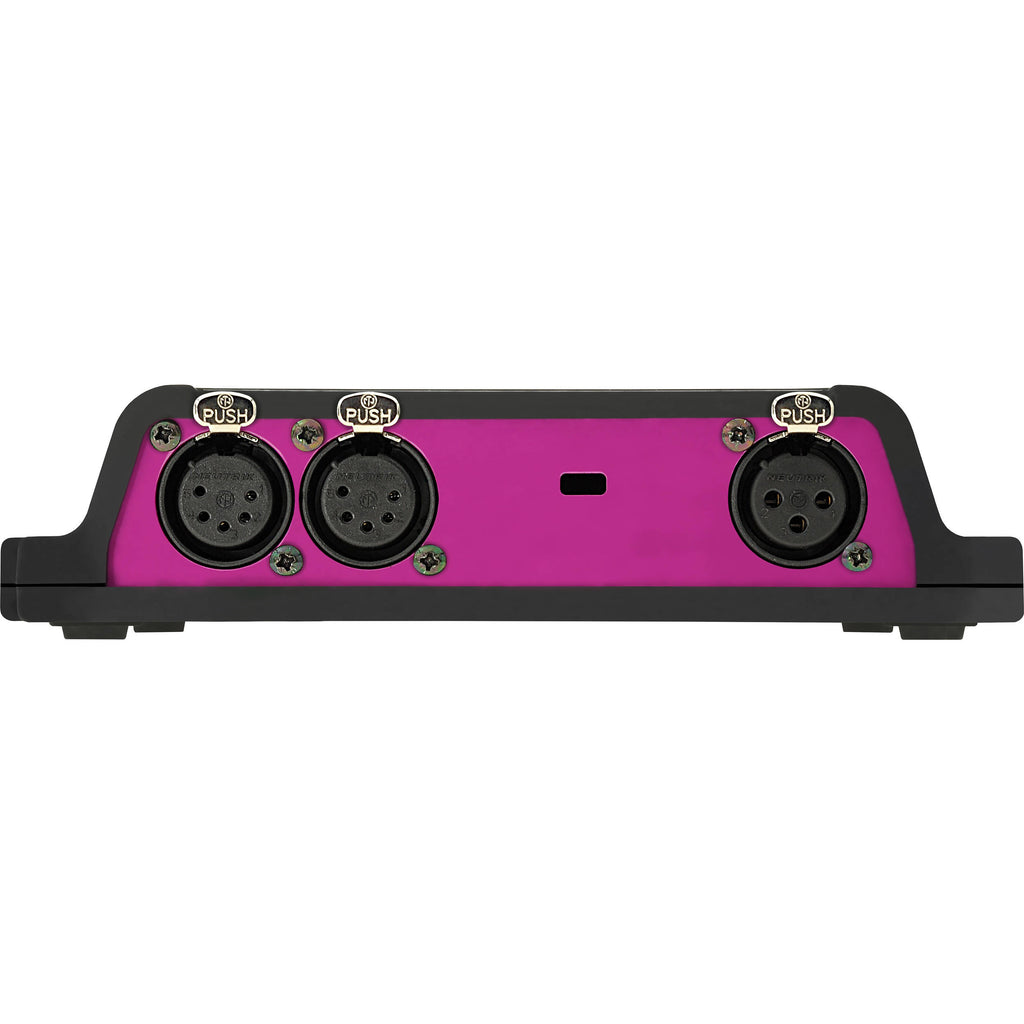

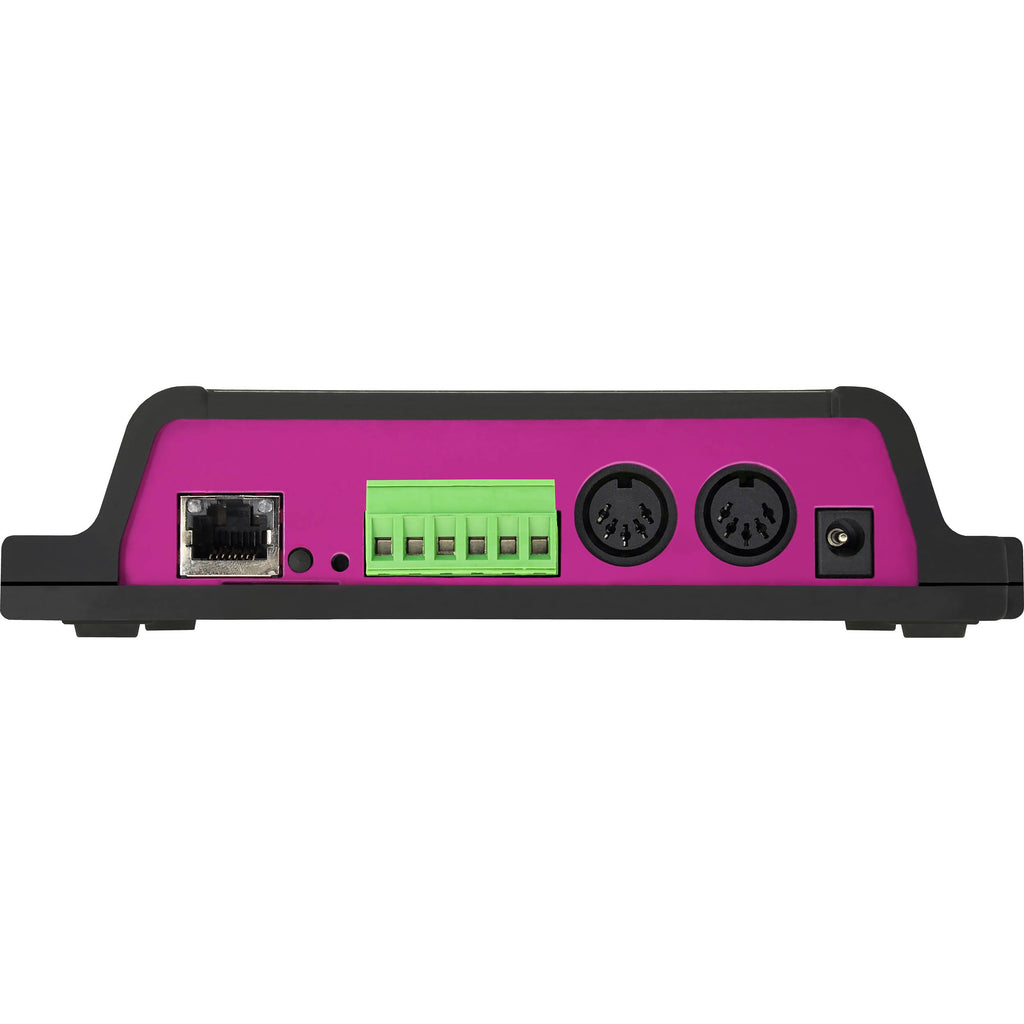

| Ports | 2 x XLR 5-Pin DMX Locking Female Output 1 x XLR 3-Pin SMPTE Locking Female Output 2 x DIN 5-Pin MIDI Female Input/Output 1 x Terminal 4-Pin Remote Input 1 xRJ45 10/100 Ethernet Female |
| Channels | 1024 (DMX) |
| Cooling System | None |
| Power Source | AC Adapter |
| DC Input Power | 9 to 24 VDC at 0.5 A |
| PoE Port Power | Yes |
| Protocol | ArtNet, DMX512, sACN |
| Supported Operating Systems | Windows, macOS, Linux |
| Operating Temperature | -4 to 122°F / -20 to 50°C |
| Dimensions | 6.7 x 3.9 x 1.6" / 170.2 x 99.1 x 40.6 mm |
