Description
Luminex LumiNode 4 DIN Overview
- 1Description
- 2Applications
- 3Connectivity
- 4DMX Features
- 5Network Features
- 6Status
- 7Power
- 8Physical
- 9Approvals

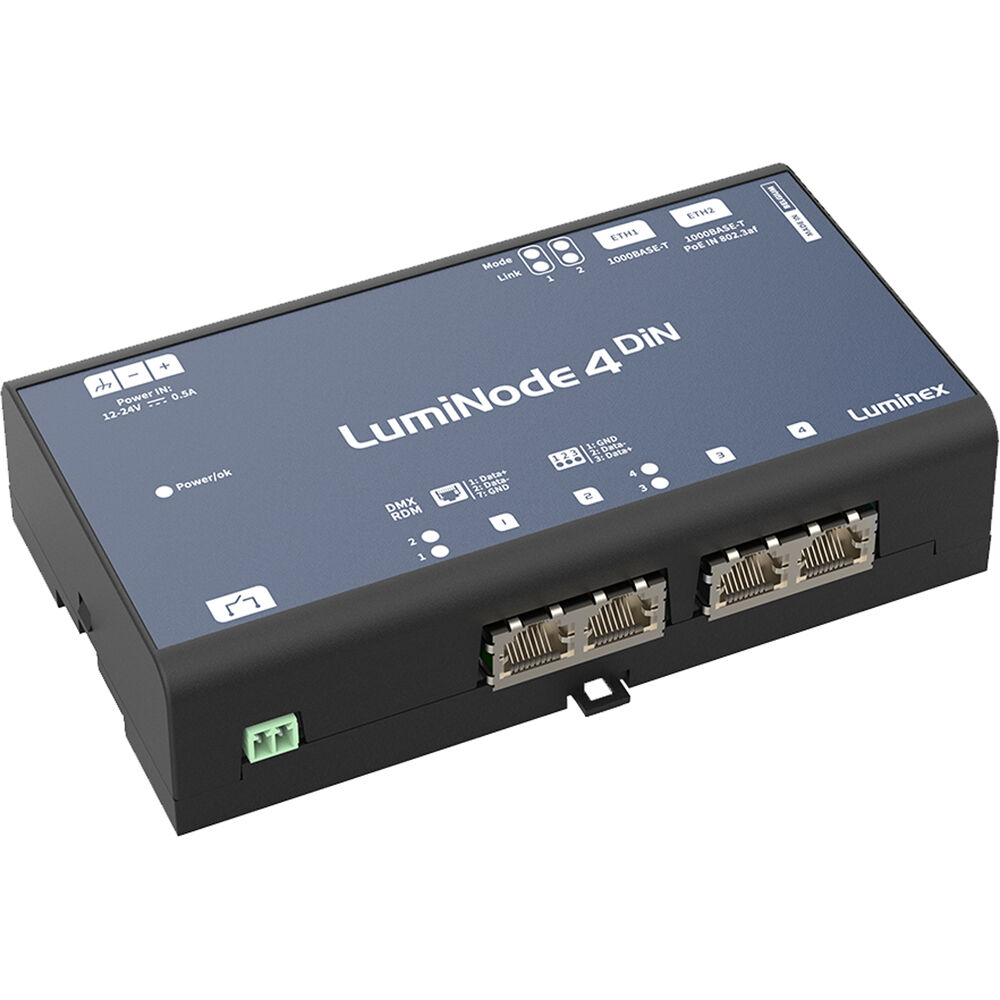

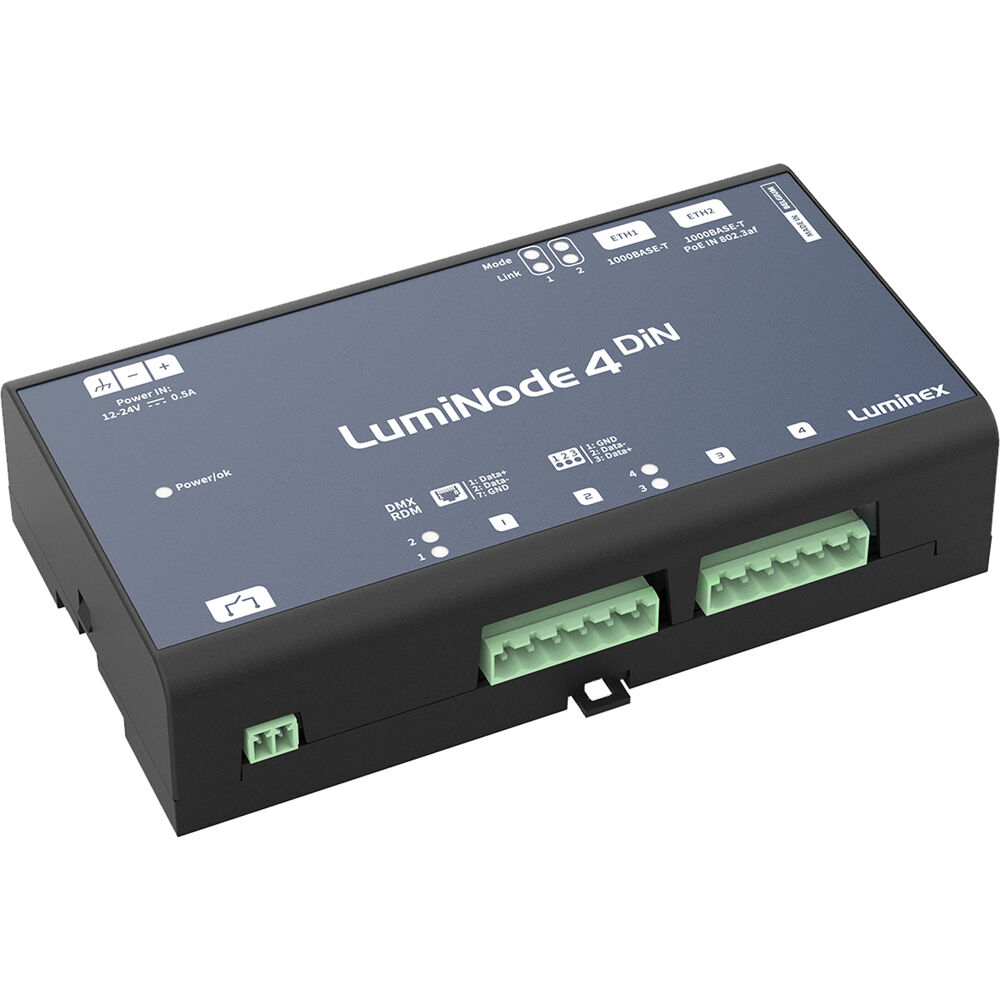

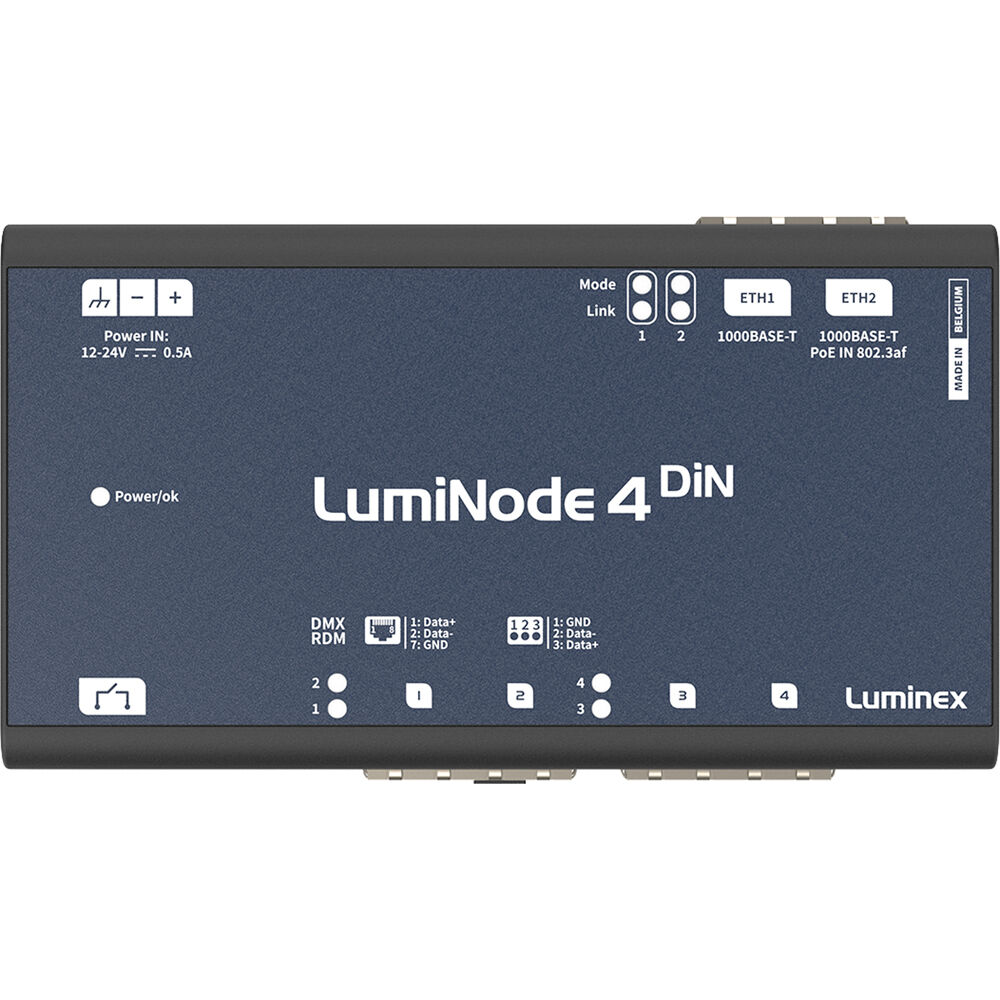

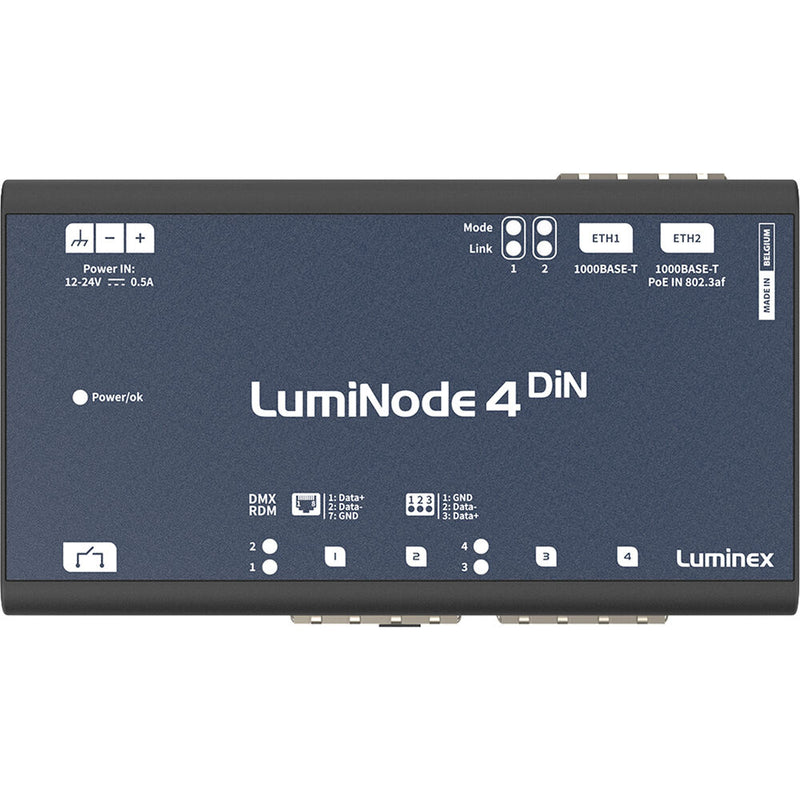

The RJ45 LumiNode 4 DIN from Luminex is specifically designed for fixed installations to fit on a standard DIN rail. The compact design and standardized mounting bracket are ideal for architectural, entertainment, and installation projects. For full flexibility, the unit comes with either DMX/RDM RJ45 connectors or terminal blocks.
The unit can be powered over PoE or DC voltage. The second 1GB RJ45 Ethernet port can be used to connect any other application or the next LumiNode 4 DIN (DC powered). Each DMX/RDM port is fully optically and galvanically isolated and can be configured as an input or output. All relevant industry-standard protocols such as Art-Net, sACN, KiNET, and RTTRpl (Blacktrax) are supported and can be processed and converted by the six onboard process engines supporting HTP, LTP, Crossfade, Backup, Switch, and Custom merging modes with soft patch functionality.
- Fixed installations
- Cruise ships, yachts
- Theaters
- Arena and stadium lighting
- Architectural lighting
- Entertainment lighting
- Theme parks
- Campuses
- Indoor farming lighting and control
- Houses of worship
- Four RJ45-DMX (ANSI E1.11 - 2008 (R2018)
- Ethernet connectivity: Two Gigabit RJ45
- Contact closure
Power connectivity:
- Ethernet (PoE 802.3af class 0)
- DMX512 (1986/1990) / DMX512-A ANSI E1.11 / RDM ANSI E1.20-2010
- DMX port direction: Input or output (configurable)
- DMX port isolation: Optical and galvanic isolation per port
DMX timing:
- Frame rate: 10-40 fps
- Break: 176-352µs
- Ethernet protocols: Art-Net (1-4) / sACN ANSI E1.31 / RTTrPL (BlackTraX) / KiNET v1, v2
- Ethernet port speed: 10/100/1000 Mb/s
- Port sensing: Auto-negociation, MDI / MDIX
- Split management interface
- Groups (VLAN) support
- Ethernet port: Link/Activity LED and Group RGB LED
- DMX Port: DMX/RDM LED
- Power input: 12-24 VDC
- PoE IEEE 802.3af (Class 0)
- Power Consumption: Maximum 10W
- Power Redundancy
- Robust plastic housing
- DIN rail IEC/EN 60715 mounting
- EN55032 class A
- EN55035
- EN61000-3-2
- EN61000-3-3
- EN61000-4-2
- EN61000-4-4
- EN61000-4-5
- EN61000-4-6
- EN61000-4-8
- EN61000-4-11
- FCC Part 15 CFR 47 class A
- ICES-003 Issue 6
Safety:
- IEC 62368-1
- EN 62368-1
- UL 62368-1
- CAN/CSA-C22.2 No. 62368-1
- CE
Certificates:
- cSGSus Mark
- CE
- UKCA
- CB certificate
Green:
- RoHS
- REACH
- Description
- Applications
- Connectivity
- DMX Features
- Network Features
- Status
- Power
- Physical
- Approvals
Luminex LumiNode 4 DIN Specs
Luminex LumiNode 4 DIN Reviews
